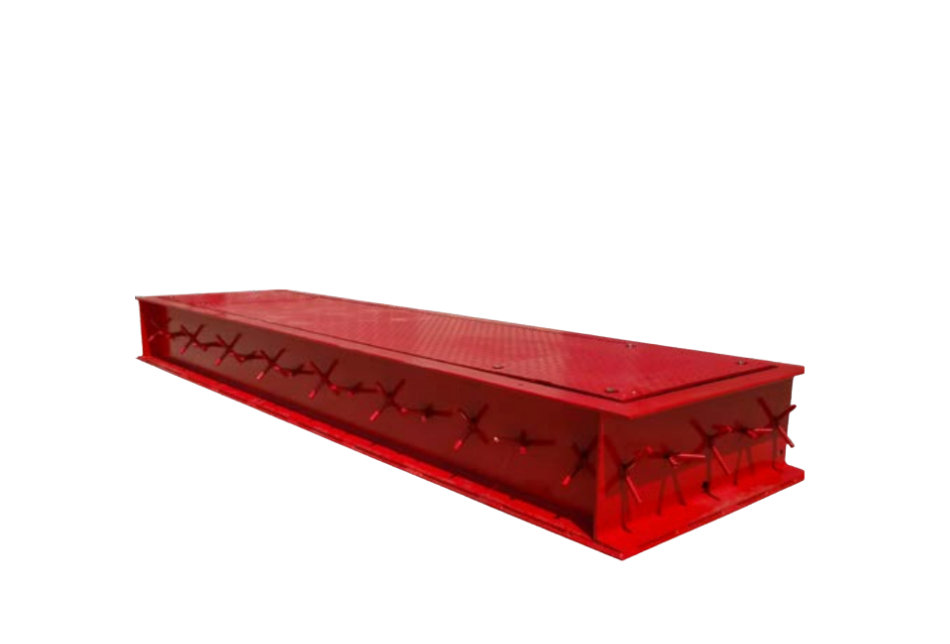

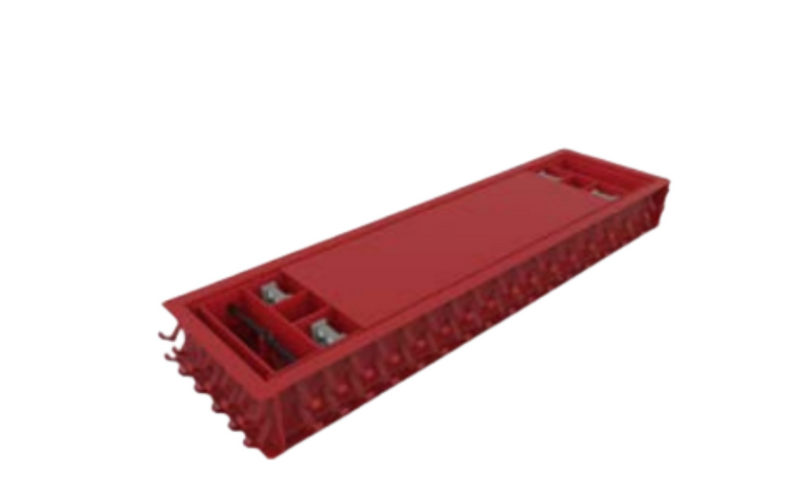

The WIM Weighing-In-Motion Scale (Made in USA), engineered to record axle weights and gross vehicle weights while trucks roll across at speeds up to 5 mph. With all-steel construction, NTEP-approved load cells, and accuracy equal to full-length Class III L truck scales, it delivers reliable results without the need for concrete foundations. Optional precast concrete slabs, drainage features, and email notifications make it versatile for both manned and unmanned operations, ensuring smooth traffic flow and compliance in demanding environments.

FEATURES

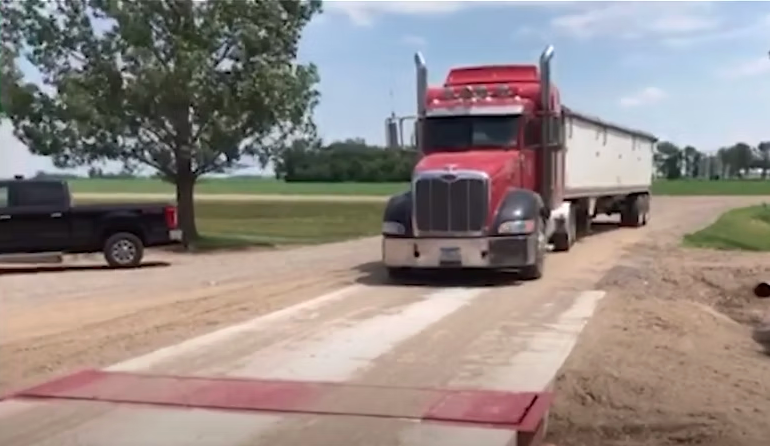

• Designed to capture and record the axle weights and gross vehicle weights as vehicles drive over the scale
• Capable of measuring vehicles traveling at a reduced traffic
  speed (5 miles/hr)
• Accuracy performance equals or exceeds that of legal for trade
  Class III L full length truck scales
• All steel construction, no concrete
• 10ft approach on either side is required for the best performance

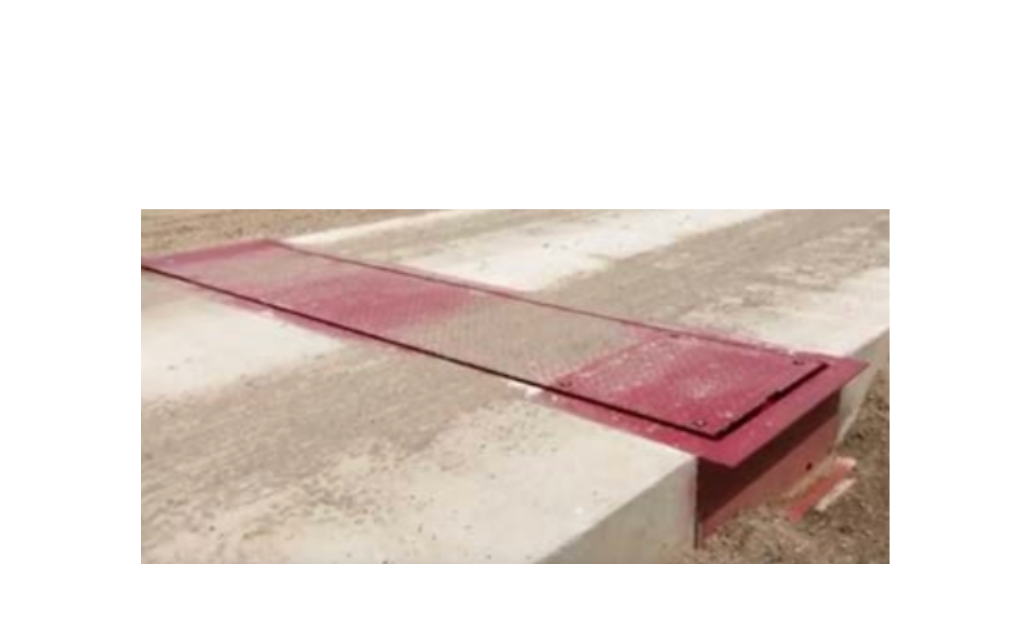

• Precast concrete slab is available to minimize road service down-
  time
• Drainage holes and conduit access are available
• EMAIL notifications for unmanned applications is available as an
  option

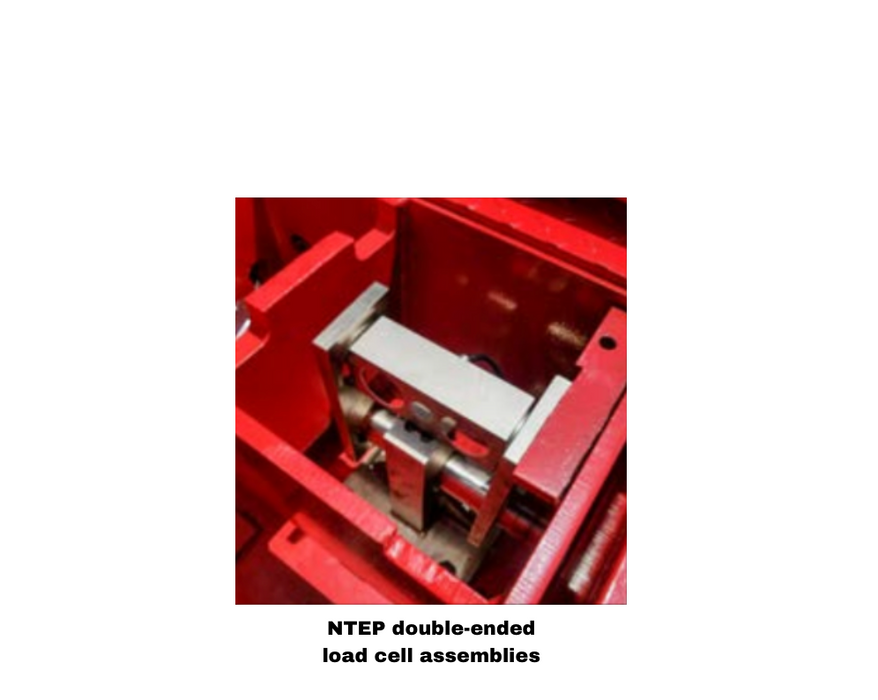

• Four 75K double-ended NTEP load cells
• Powder coating finish

SPECIFICATION

• MATERIAL: Powder Coated Steel

• OVERLOAD PROTECTION: 200%
• INDICATOR: 8500 Versa
• CAPACITY: 80,000 lbs (custom capacities available)
• STANDARD SIZES: 30” X 10ft or 11ft
  (custom sizes available)
• WARRANTY: 2 years


OPTIONS/ ACCESSORIES

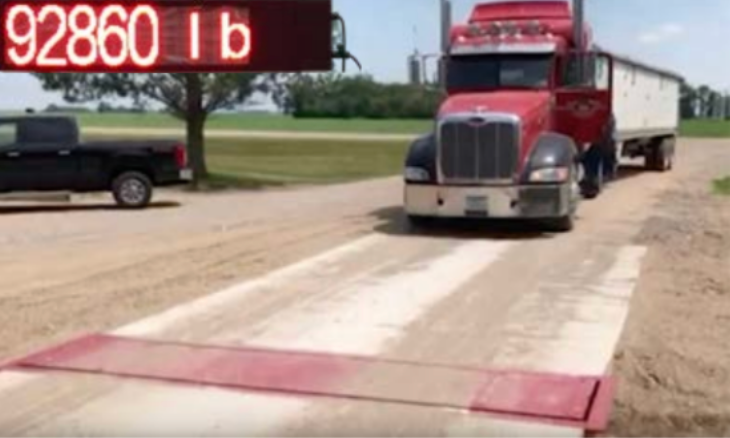

• Scoreboard
• Portable big display stand
• Data logging software
• Indicator Stand
• Printer
