USA Measurements US-6011SS-Relay Digital Indicator NTEP LCD
FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.
✔ Authorized USA Measurements Dealer
✔ Call Us: +1 (941) 257-3293
✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.
✔ Made in The USA
✔ Ships From Cumberland, MD

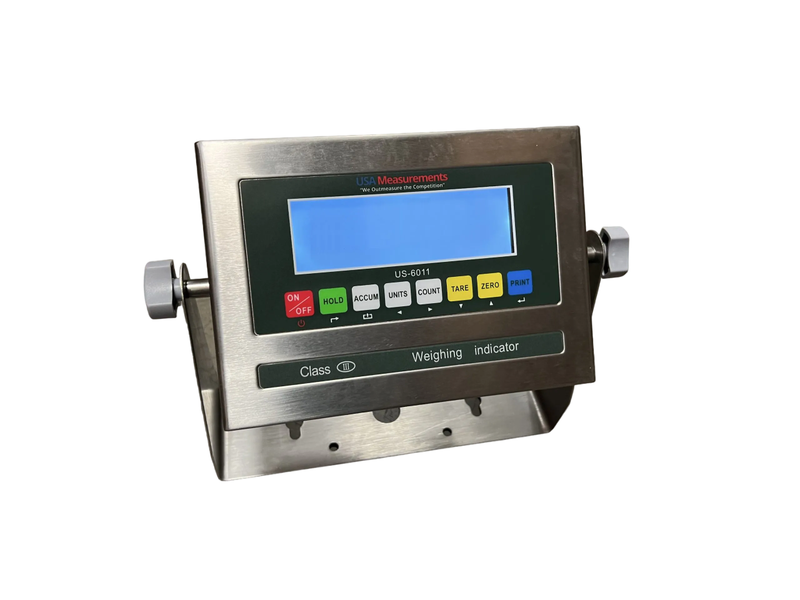

The USA Measurements US-6011SS-Relay digital indicator features a durable stainless steel housing and an easy-to-read LCD display with 2.5 cm digits. NTEP approved and legal for trade, it includes an integrated relay module for setpoints, check weighing with over/under alarms, parts counting, accumulation, and specialized hold functions for animal weighing.
Engineered for versatility across industrial, agricultural, and logistics operations, this indicator connects seamlessly with bench, floor, livestock, and truck scales. It supports up to 50,000 displayed graduations, includes full duplex RS-232 serial ports for scoreboards or printers, and features straightforward five-step calibration.
Key Features
| Brand | USA Measurements |
| Model | US-6011SS-Relay |
| Product Type | Digital Scale Indicator |
| Housing Material | Stainless Steel |
| Display Type | LCD (2.5 cm Digits) |
| Weighing Units | kg, lb, oz, g, lb:oz |
| Displayed Graduations | Up to 50,000 |
| Ports | Full Duplex RS-232 Serial Port |
| Load Cells Supported | Up to six 350Ω load cells |
| Power Supply | 110V Power Adapter |
| Legal for Trade | NTEP Approved |
| Cable Length | 6.1 m Stainless Steel Braided Cable |
| Weight | 2.7 kg |
Highlights
- Stainless Steel Housing
- 1” Digits in LCD display
- Weighing Units LCD: Kg, Lb, Oz, grams, Lb:Oz
- Gross Weighing Capability
- Multiple Tare Options with Pre-Set Tare
- Zero Function
- Hold Functions for Enhanced Flexibility
- Counting Feature
- Accumulation and Batch Weighing
- Check Weighing with Over/Under Alarm
- Power-Saving Mode
- Auto Date & Time Adjustment
- Adjustable Gravity Based on Location
- Fully Adjustable Zero Range
- Error Warning Alert
- Splash-Proof Keyboard & Display
- RS-232 Ports for Scoreboard and Printer Connectivity
- Supports up to 50,000 Displayed Graduations
- Bracket & Mounting Hardware Included
- 110V Power Adapter
- Easy 5-Step Calibration
- Full Duplex RS-232 Serial Port
- Powers up to Six 350Ω Load Cells
- 2-Year Manufacturer Warranty
- NTEP Approved (Legal for trade)
Materials & care
Features a rugged stainless steel enclosure and a splash-proof keyboard and display. Clean with a damp cloth and mild non-abrasive detergent; avoid submersion in liquids.
Compatibility
Compatible with industrial floor scales, truck and axle scales, bench scales, livestock scales, crane scales, pallet jack scales, hopper systems, and up to six 350-ohm load cells.
Warranty
2-Year Manufacturer Warranty

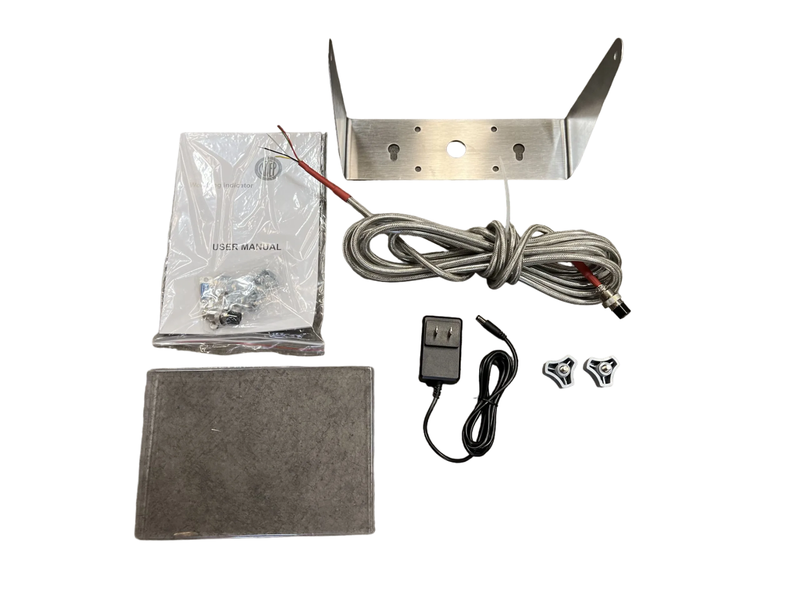

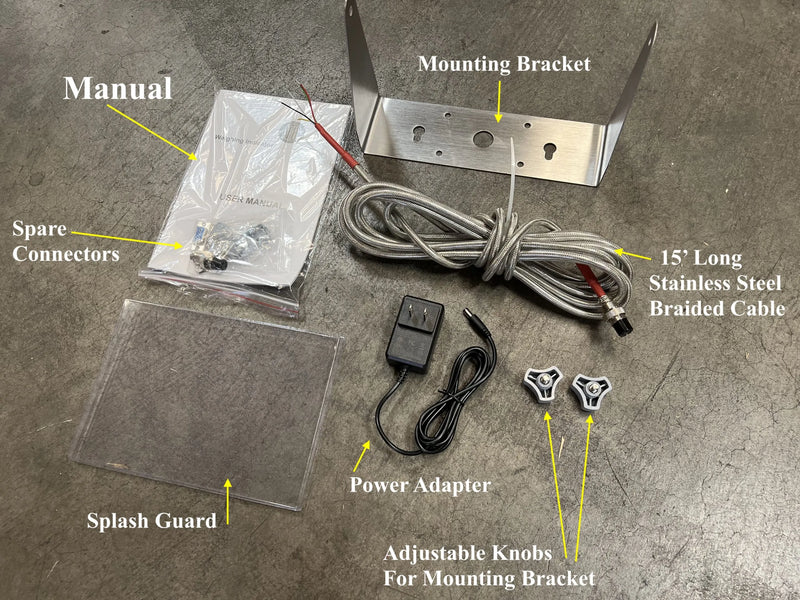

What's included
- (1) US-6011SS-R Digital Indicator
- (1) Relay Module for Setpoints
- (1) Stainless Steel Mounting Bracket
- (2) Adjustable Knobs for Bracket
- (1) Spare Connectors
- (1) Plastic Splash Guard
- (1) 20′ Stainless Steel Braided Cable
- (1) Power Adapter
- (1) User Manual
