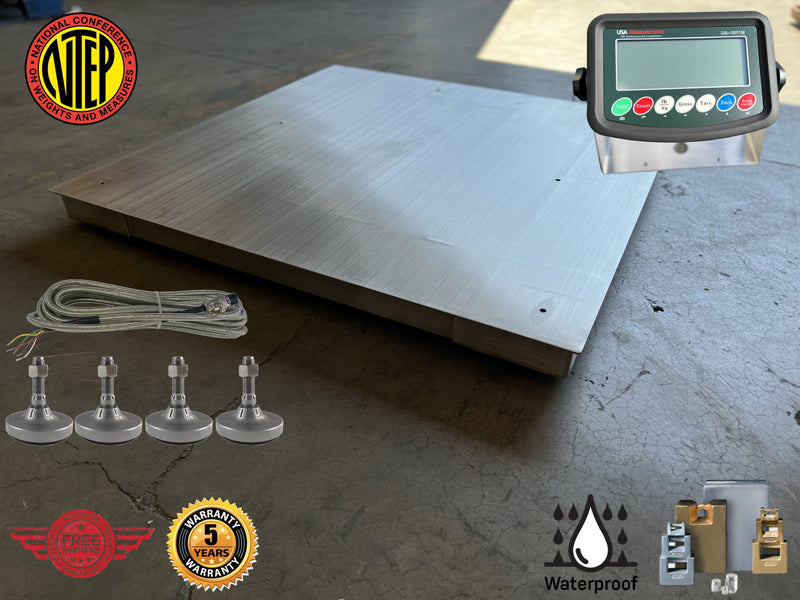

USA Measurements Thunderbolt stainless steel washdown floor scale is designed for applications that require a cleanable scale, prevents rust, and can be left outdoor years around. US-TB-SS comes in two size: 48″x48″ or 60″x60″ in a 2,500 lb to 10,000 lb selectable capacities. Our bright, large, and easy to read US-1011N indicator is included. Built with a robust 200% overload protection and impact protected load cells. Our Thunderbolt series will provide a consistent accuracy for years to come.

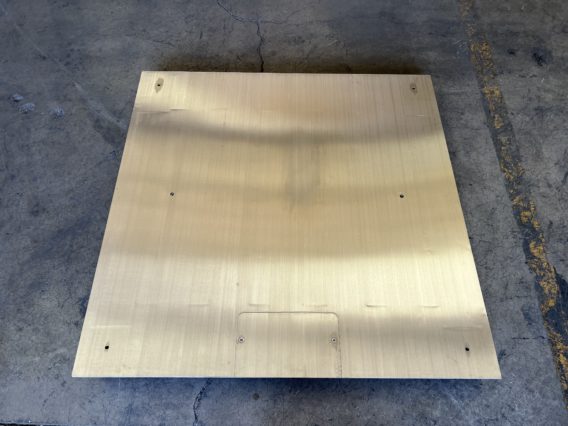

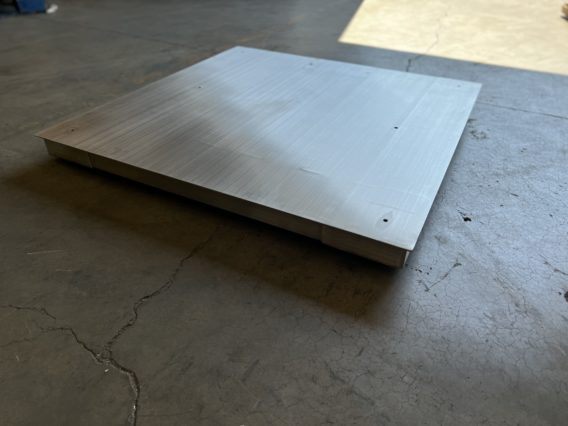

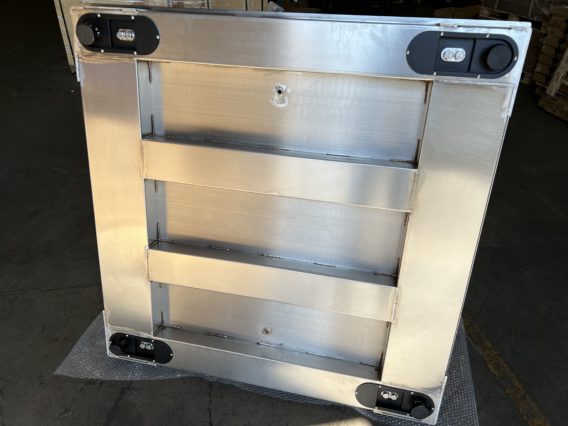

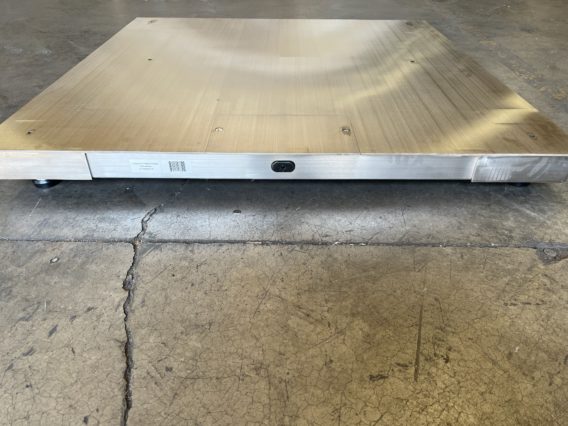

The Thunderbolt stainless steel series floor scale is constructed with a smooth top 304 grade platform. The six channel steel bracing protect our four stainless steel shear beam load cells. Each load cell is built to shock absorbing impacts, ball swivel feet for vibrations, and a 200% overload protection. The scale is backed by our 5 Year Manufacturer warranty. Each model is factory calibrated for accuracy, including 18′ steel braided cable, and LCD digital.
US-THUNDERBOLT FEATURES
- Stainless Steel Platform
- Hermetically sealed Load Cells
- IP67 Rated Wash Down Safe
- 6 Channel Steel Bracing
- 200% Overload Protection
- LCD Digital Indicator (Rechargeable)
- A/C Adapter 110 Volts
- Four Swivel Leveling Feet
- 20 ft Braided Cable
- Platform Height 3.5”
- Factory Calibration
- 5 Year Manufacturer Warranty Steel Deck
- 2 Year Manufacturer Warranty Electronics

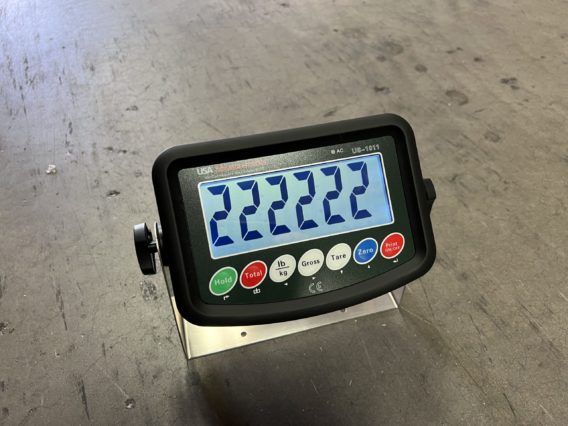

US-1011N INDICATOR FEATURES
- LCD Backlight Display
- 1.6” Digit Size
- Net, Total, Hold, Zero, & Accumulation
- Units: Lb, Kg, % weight
- Counting Function
- Rechargeable Battery
- 110V Power Adapter
- Animal Scale Function
- Check weigh (Hi/Ok/Lo)
- RS-232 Output
- Powers (4) 350 ohm Load Cells
- Dimensions: 9.5″x4.9″x2.5″
- Operating Temp: -10°C to 40°C (14°F to 104°F)
- US-1011N Manual
- NTEP Certifcate: 20-083
OPTIONAL ACCESSORIES
- Thermal Printer
- Label Printer
- Indoor Remote Display 3″ Digits
- Indoor Remote Display 5″ Digits
- Outdoor Remote Display 6″ Digits
- Software
- Indicator Stand (stainless steel)
- Heavy Duty Indicator Stand
- Certifcate of Calibration
- Indicator with 4-20ma Output
- Indicator with Setpoint / Relay Function
- Wireless Transmitter
SPECIFICATIONS
| Model |
Platform Size |
Capacity Options |
Readability |
| US-TB4848SS |
48" x 48" (4 ft x 4 ft) |
2,500 lb / 5,000 lb / 10,000 lb |
0.5 lb / 1 lb / 2 lb |
| US-TB6060SS |
60" x 60" (5 ft x 5 ft) |
2,500 lb / 5,000 lb / 10,000 lb |
0.5 lb / 1 lb / 2 lb |
SHIPPING & SUPPORT
We offer FREE SHIPPING to Lower 48 United States
This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
