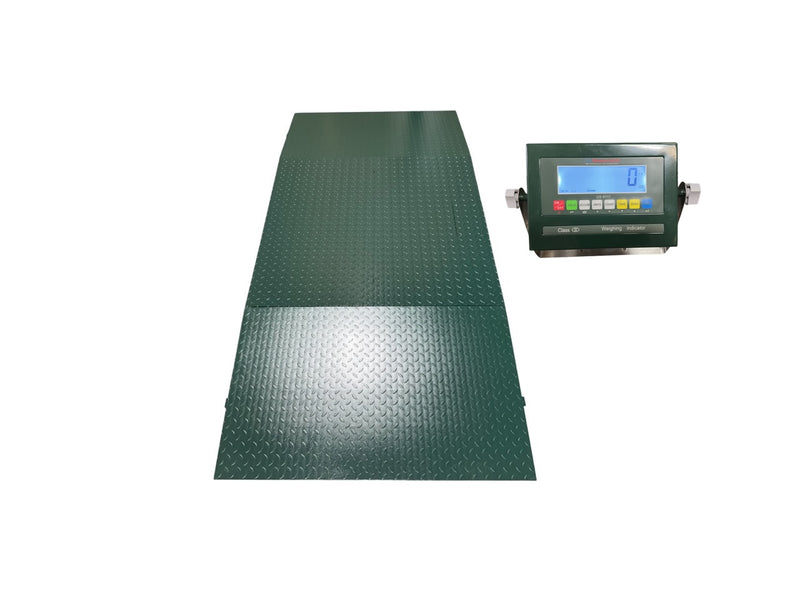

Decision summary: The US-MR4848-5K is a complete NTEP-listed 4 × 4 ft floor-scale package with two opposing ramps for rolling carts, cylinders, cases, and hand trucks on and off the platform.
Best fit
Shipping, receiving, manufacturing, agriculture, recycling, and commercial transactions needing a 5,000 lb × 1 lb low-profile platform with two-direction roll-through access.
Choose the right configuration
This package is the 5,000 lb × 1 lb configuration with two ramps. Printer, wireless, explosion-proof, water-resistant, pit-frame, scoreboard, and software choices shown by the manufacturer are optional upgrades, not assumed base inclusions.
Key specifications
| Specification |
Details |
| Platform |
48 × 48 in heavy-duty powder-coated steel |
| Capacity / readability |
5,000 lb × 1 lb |
| Ramps |
Two 48 × 40 in ramps |
| Profile |
4 in |
| Load cells |
Four 350-ohm load cells |
| Indicator |

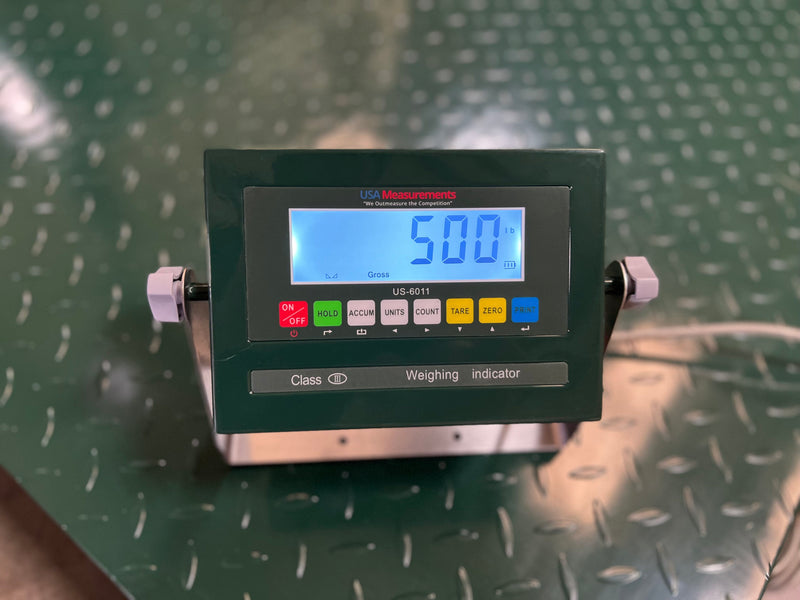

US-6011MS, 1 in LCD, dual RS-232 |
| Cable |
20 ft braided cable |
| Power |
110 V adapter and rechargeable battery up to 100 hours |
| Overload protection |
200% of capacity |
Tradeoffs and relevant alternatives
- If ramps are not required, compare the broader USA Measurements US-MR Reliable floor-scale family.
- Two ramps improve roll-through workflow but require more floor space and a clear approach on both sides.
- NTEP certification does not replace local inspection, sealing, calibration, or placing-in-service requirements for commercial use.
What is included or required
One 48 × 48 in platform, two 48 × 40 in ramps, US-6011MS indicator, 20 ft braided cable, four leveling feet, rechargeable battery, AC adapter, stainless mounting bracket, and manual.
Certification and trade-use status
NTEP status for this package: USA Measurements identifies the US-MR4848-5K two-ramp, 5,000 lb × 1 lb package as NTEP approved/legal for trade. Local weights-and-measures approval, inspection, calibration, and sealing may still be required before commercial use.
Warranty
USA Measurements lists a 5-year warranty for the US-MR4848-5K package and a 2-year warranty for the US-6011MS indicator, subject to written terms.
Shipping & Support
Most orders ship free to the Lower 48 United States. Because the platform and ramps are freight items, Northline will confirm delivery access, liftgate/forklift needs, current lead time, and accessorial charges before fulfillment.
Frequently asked questions
Are the ramps included?
Yes. The exact package lists two 48 × 40 in ramps.
Can it be used for legal-for-trade weighing immediately?
The exact configuration is listed as NTEP approved, but commercial use may require local inspection, calibration, sealing, and placing in service.
Are printer or wireless options included?
No. They are manufacturer options and must be quoted separately unless explicitly added to the order.
