TL8500™ Tension Link Dynamometers

TL8500™ Tension Link Dynamometers

by Intercomp
$1,299.00 - $4,899.00
$1,299.00
$1,299.00 - $4,899.00
$1,299.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

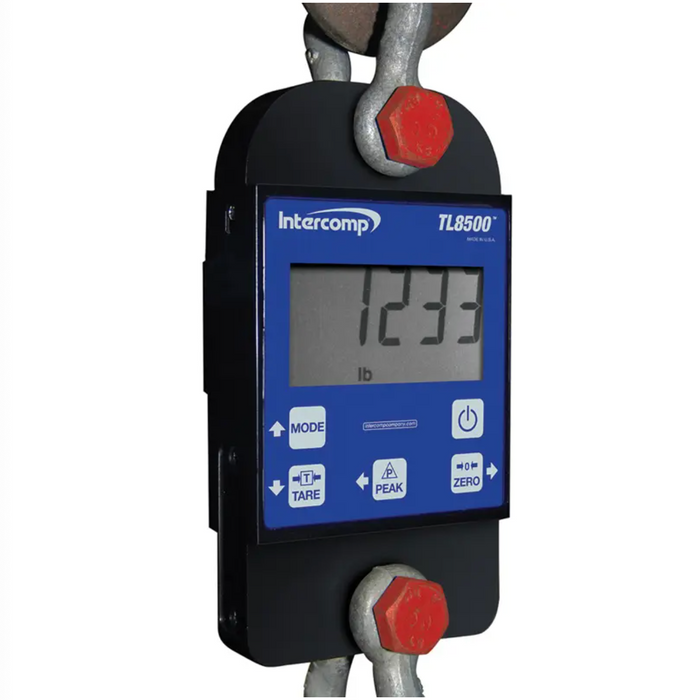

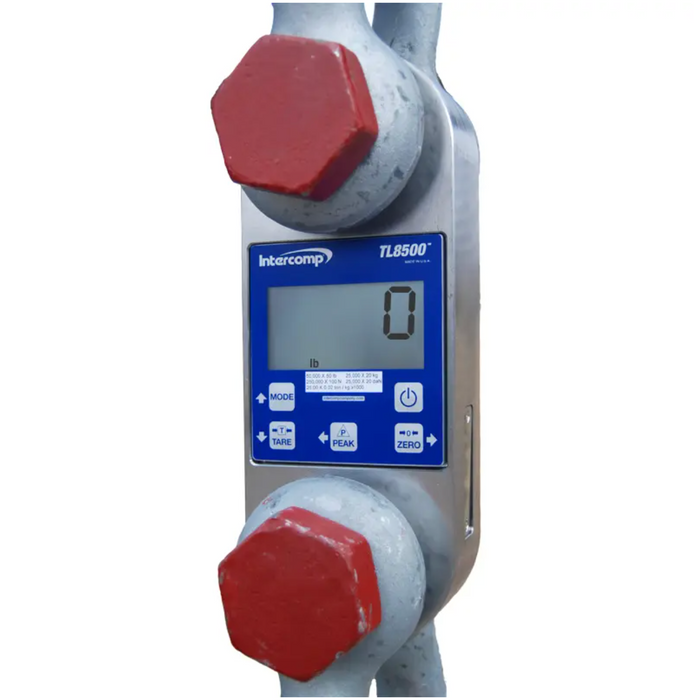

The TL8500™ Tension Link Dynamometers are engineered for accurate, wireless overhead load management in environments where headroom is limited. Designed to verify, control, and monitor line tension, these rugged tension links feature a self-contained LCD display and are built from aircraft-grade aluminum or stainless steel for superior strength and durability. With shock-mounted electronics and a NEMA 4x/IP65 weatherproof enclosure, the xTL8500™ Tension Link Scale ensures dependable performance and safety in capacities up to 160,000 lb (80,000 kg)—ideal for industrial lifting, construction, and heavy-load applications.


FEATURES

  • High Accuracy: ±0.1% of capacity (up to 100,000 lb / 50,000 kg) and ±0.5% (160,000 lb / 80,000 kg)
  • Wide Capacity Range: Available in models up to 160,000 lb (80,000 kg)
  • Easy-to-Read Display: Large, backlit 5-digit LCD with 1.2" (30 mm) characters for clear visibility
  • Compatible Design: Fits industry-standard shackles (sold separately)
  • Wireless Operation: Built-in radio with no external antennas for smooth data transmission
  • Long Battery Life: Up to 400 hours of continuous use; standby mode lasts up to 2,000 hours (batteries included)
  • User-Friendly Controls: Dedicated hard keys for On/Off and Mode selection
  • Optional Feature: Audible alarm available for enhanced load monitoring safety



SPECIFICATION

TL8500 Tension Link Dynamometers

MODEL NUMBER

DESCRIPTION

CAPACITY/GRADUATION

150217-RFX

TL8500 TENSION LINK SCALE (1K X 1)

1,000 × 1 LB (500 × .5 KG)

150218-RFX

TL8500 TENSION LINK SCALE (2K X 2)

2,000 × 2 LB (1,000 × 1 KG)

150219-RFX

TL8500 TENSION LINK SCALE (5K X 5)

5,000 × 5 LB (2,500 × 2 KG)

150220-RFX

TL8500 TENSION LINK SCALE (10K X 10)

10,000 × 10 LB (5,000 × 5 KG)

150221-RFX

TL8500 TENSION LINK SCALE (25K X 20)

25,000 × 20 LB (12,500 × 10 KG)

150222-RFX

TL8500 TENSION LINK SCALE (50K X 50)

50,000 × 50 LB (25,000 × 25 KG)

150223-RFX

TL8500 TENSION LINK SCALE (100K X 100)

100,000 × 100 LB (50,000 × 50 KG)

150224-RFX

TL8500 TENSION LINK SCALE (160K X 200)

160,000 × 200 LB (80,000 × 100 KG)

Tension Link Dynamometer Accessories

MODEL NUMBER

DESCRIPTION

150100

SHACKLE PAIR FOR TENSION LINKS (TO 5K) TL8500

150101

SHACKLE PAIR FOR TENSION LINKS (TO 10K) TL8500

150102

SHACKLE PAIR FOR TENSION LINKS (TO 25K) TL8500

150103

SHACKLE PAIR FOR TENSION LINKS (TO 50K) TL8500

150104

SHACKLE PAIR FOR TENSION LINKS (TO 100K) TL8500

150105

SHACKLE PAIR FOR TENSION LINKS (TO 160K) TL8500

189014-RFX

HH400 (IWH) RFX INDICATOR (INCLUDES: 4-AA ALKALINE BATTERIES, LANYARD, & ABS/FOAM CASE) TL8500

150110

CASE FOR TENSION LINKS (TO 50K) TL8500

150215

DIRECT POWER OPTION FOR TL8500 W/RS232 & SET POINTS TL8500

150231

CABLE, W/CONNECTOR FOR TL8500 (15') (MUST BE ORDERED W/OPTION 150215) TL8500

150232

CABLE, W/CONNECTOR FOR TL8500 (25') (MUST BE ORDERED W/OPTION 150215) TL8500

150233

CABLE, W/CONNECTOR FOR TL8500 (50') (MUST BE ORDERED W/OPTION 150215) TL8500

490197

SCALE CASE 11" X 15" X 14" W/DIVIDERS 100K & 160K LINKS

750501

CERTIFICATE OF CALIBRATION



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
