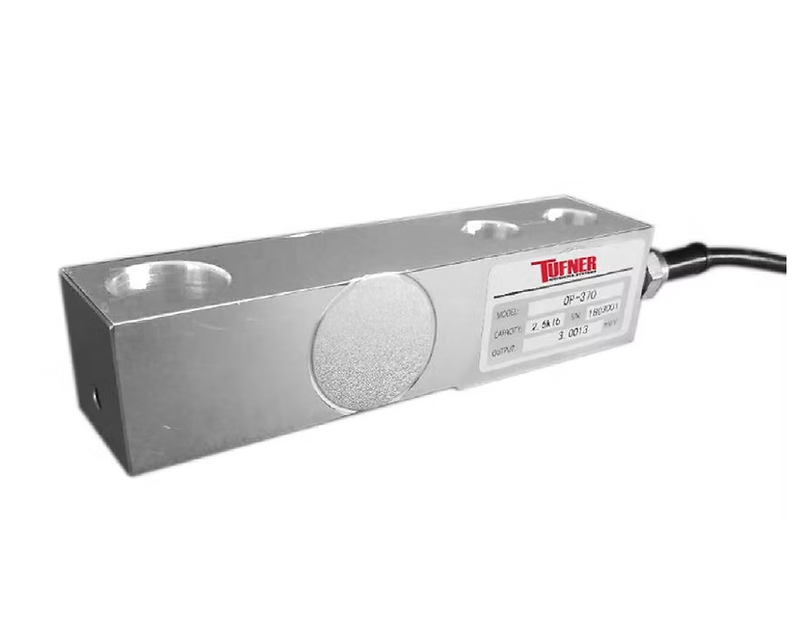

T370-SS Single-Ended Beam, Stainless Steel Load Cell | IP67

T370-SS Single-Ended Beam, Stainless Steel Load Cell | IP67

by Optima Scale
$329.00 - $419.00
$329.00
$329.00 - $419.00
$329.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T370-SS Single-Ended Beam is built from durable stainless steel and designed with IP67 protection, making it resistant to moisture, dust, and harsh environments. This load cell is ideal for floor scales, platform scales, and other industrial weighing applications where reliability and accuracy are essential. With its rugged construction and dependable performance, it provides long-term stability for your weighing needs.

SPECIFICATION



MODEL NUMBER

CAPACITY

T370SSW-1K

1,000 lb

T370SSW-2.5K

2,500 lb

T370SSW-4K

4,000 lb

T370SSW-5K

5,000 lb

T370SSW-10K

10,000 lb


  • Rated Capacity: 1K / 2.5K / 4K / 5K / 10K lb
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.01% F.S.
  • Creep (30 minutes): ±0.02% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 1080±10Ω
  • Output Impedance: 1000±5Ω
  • Safe Overload: 150% F.S
  • Excitation Recommended: 10-15V AC/DC
  • Material/Finish: Stainless Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Artech: SS30510
  • Coti Global Sensors: CG-BLC-C
  • HBM: BLC
  • Rice Lake: RLBLC
  • Toledo: 13552100A

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
