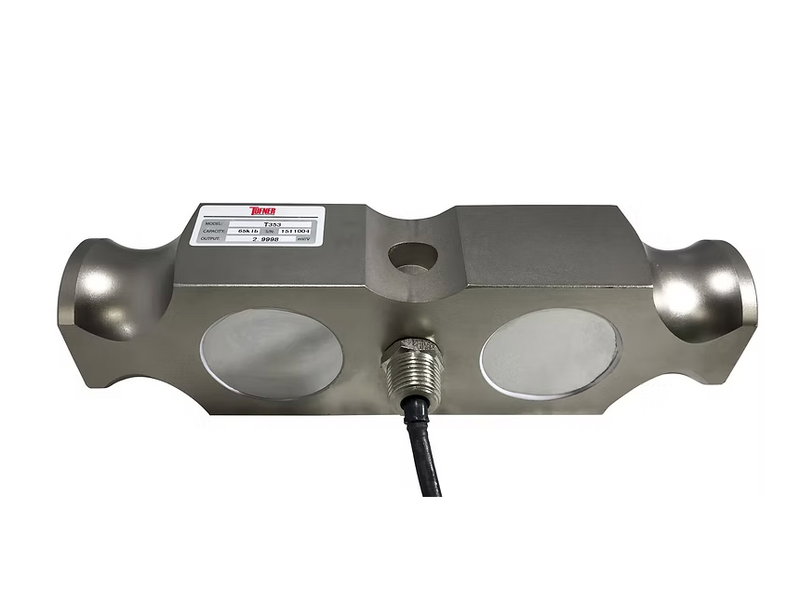

T353 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T353 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$999.00 - $999.00
$999.00
$999.00 - $999.00
$999.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T353 Double-Ended Beam, Nickel-Plated Alloy Steel Load Cell | IP67 is engineered to deliver long-lasting strength and dependable accuracy in industrial weighing applications. Its nickel-plated alloy steel construction resists corrosion, while the IP67 rating ensures reliable performance in harsh environments. Ideal for truck scales, floor scales, and multi-cell systems, the T353 provides consistent and precise measurements you can count on to keep operations running smoothly.

SPECIFICATION



MODEL NUMBER

CAPACITY

T353-50

50,000 lbs

T353-65

65,000 lbs

T353-100

100,000 lbs


  • Rated Capacity: lb: 50K/65K/100K
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.02% F.S.
  • Repeatability: ±0.1% F.S.
  • Creep (30 minutes): ±0.02% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Input Resistance: 700±10Ω
  • Output Resistance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 200% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Approval: CC 15-022
  • Material/Finish: Alloy Steel
  • Cable Length: Double-Shielded: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Coti Global Sensors: CG-BLC-2
  • NV Technology: BLC-1 60K-N
  • Revere: 9803
  • Thurman: 10088970A 50K

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
