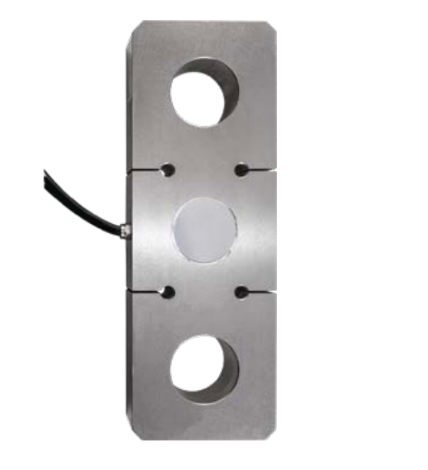

T351 Tension Link, NICKEL-PLATED Alloy Load Cell | IP67

T351 Tension Link, NICKEL-PLATED Alloy Load Cell | IP67

by Optima Scale
$729.00 - $1,829.00
$729.00
$729.00 - $1,829.00
$729.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T351 Tension Link Load Cell, made from nickel-plated alloy steel, delivers exceptional durability and accuracy in demanding tension applications. With its IP67 rating, it is protected against dust and water, making it ideal for use in harsh industrial or outdoor environments. Imagine lifting, rigging, or load monitoring with complete confidence—this load cell is built to provide precise and dependable results every time.

SPECIFICATION



MODEL NUMBER

CAPACITY

T351-20

20,000 lbs

T351-50

50,000 lbs

T351-100

100,000 lbs

T351-150

150,000 lbs

T351-200

200,000 lbs

T351-250

250,000 lbs


  • Rated Capacity: lb: 20K/50K/100K/150K/200K/250K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Input Resistance: 700±10Ω
  • Output Resistance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 300% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Cable Length: Standard - 10K - 40K lbs: 40ft/12m | Double-Shielded - 50K - 200K lbs: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal White...... -Signal



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
