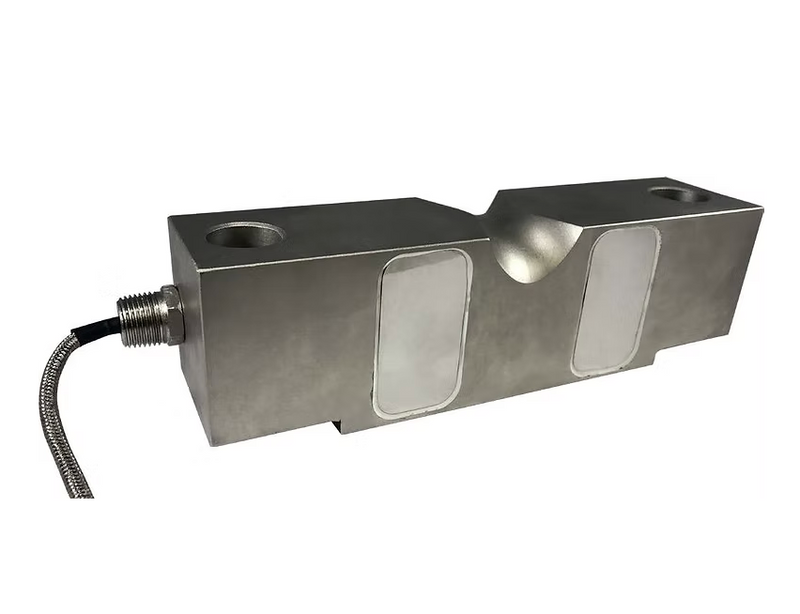

T350 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67 NTEP 1:10,000 Class III L , Multiple Cell

T350 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67 NTEP 1:10,000 Class III L , Multiple Cell

by Optima Scale
$629.00 - $2,049.00
$629.00
$629.00 - $2,049.00
$629.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

Tired of weight readings that compromise accuracy and reliability? The T350 Double-Ended Beam, Nickel-Plated Alloy Steel Load Cell | IP67, NTEP 1:10,000 Class III L, Multiple Cell ensures precise and consistent measurements, even under demanding industrial conditions. Built with a nickel-plated alloy steel body and IP67 sealing, it offers excellent protection against dust and moisture while meeting NTEP standards for accuracy. Ideal for truck scales, floor scales, and other multi-cell heavy-duty weighing systems, the T350 provides the dependable performance you need to keep operations efficient and error-free.

SPECIFICATION



MODEL NUMBER

CAPACITY

T350-10

10,000 lbs

T350-20

20,000 lbs

T350-25

25,000 lbs

T350-30

30,000 lbs

T350-40

40,000 lbs

T350-50

50,000 lbs

T350-50LE

50,000 lbs LE

T350-60

60,000 lbs

T350-75

75,000 lbs

T350-100

100,000 lbs

T350-125

125,000 lbs*

T350-150

150,000 lbs*

T350-200

200,000 lbs*

* 125,000 lbs+ not NTEP approved
  • Rated Capacity: lb: 10K/20K/25K/30K/40K/50K/
    50K LE/60K/75K/100K/125K/
    150K/200K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Input Resistance: 700±10Ω
  • Output Resistance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 300% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Approval: CC 14-028
  • Material/Finish: Alloy Steel
  • Cable Length: 10K - 40K lbs: 40ft/12m
    Double-Shielded
    50K - 200K lbs: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Artech: 70310
  • Celtron: CLB
  • Coti Global Sensors: CG-58
  • Revere: 5303
  • Rice Lake: RL75058
  • Tedea: 4158
  • Sensortronics: 65058A
  • Totalcomp: TDE58

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
