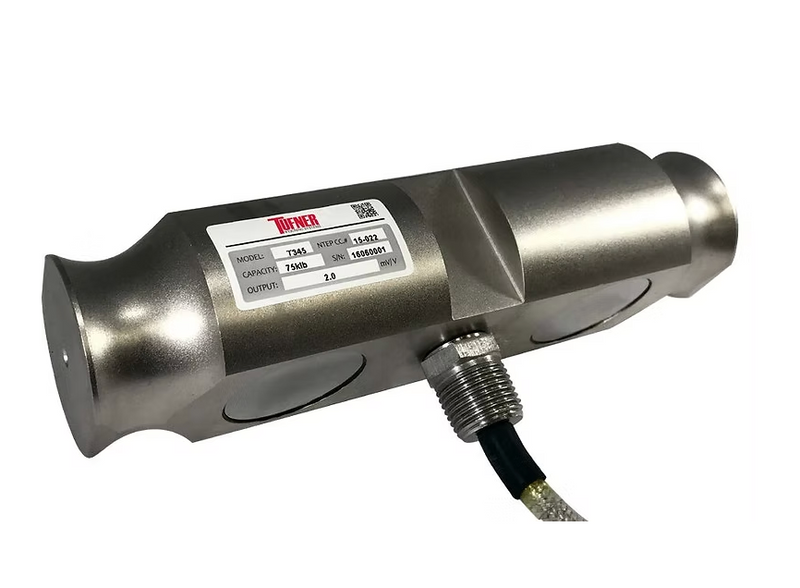

T345 Double-Ended Beam, NICKEL-PLATED Alloy steel & Stainless Steel Load Cell | IP67/IP68, Welded Sealed

T345 Double-Ended Beam, NICKEL-PLATED Alloy steel & Stainless Steel Load Cell | IP67/IP68, Welded Sealed

by Optima Scale
$829.00 - $1,149.00
$829.00
$829.00 - $1,149.00
$829.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T345 Double-Ended Beam Load Cell is engineered with a combination of nickel-plated alloy steel and stainless steel construction, ensuring maximum durability and corrosion resistance. Featuring IP67/IP68 welded sealing, this load cell is fully protected against dust, moisture, and water immersion, making it ideal for demanding industrial applications such as truck scales, railway scales, and heavy platform systems. With robust performance and long-lasting reliability, the T345 ensures precise and stable weighing in even the harshest conditions.

SPECIFICATION



MODEL NUMBER

MATERIAL

CAPACITY

T345-35

Alloy Steel

35,000 lbs

T345-50

Alloy Steel

50,000 lbs

T345-75

Alloy Steel

75,000 lbs

T345-SSW-35

Stainless Steel

35,000 lbs

T345-SSW-50

Stainless Steel

50,000 lbs

T345-SSW-75

Stainless Steel

75,000 lbs


  • Rated Capacity: lb: 35K/50K/75K
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Input Resistance: 700±10Ω
  • Output Resistance: 700±5Ω
  • Safe Overload: 150% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Approval: CC 15-022
  • Material/Finish: Alloy Steel & Stainless Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard
    STANDARD
    35K lbs: 40ft/12m
    DOUBLE-SHIELDED
    50K-75K: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Cardinal: DB35000S
  • Cardinal: DB50000S
  • Cardinal: DB75000S
  • Coti Global Sensors: CG-DB50000S
  • Rice Lake: RLDB50000S

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
