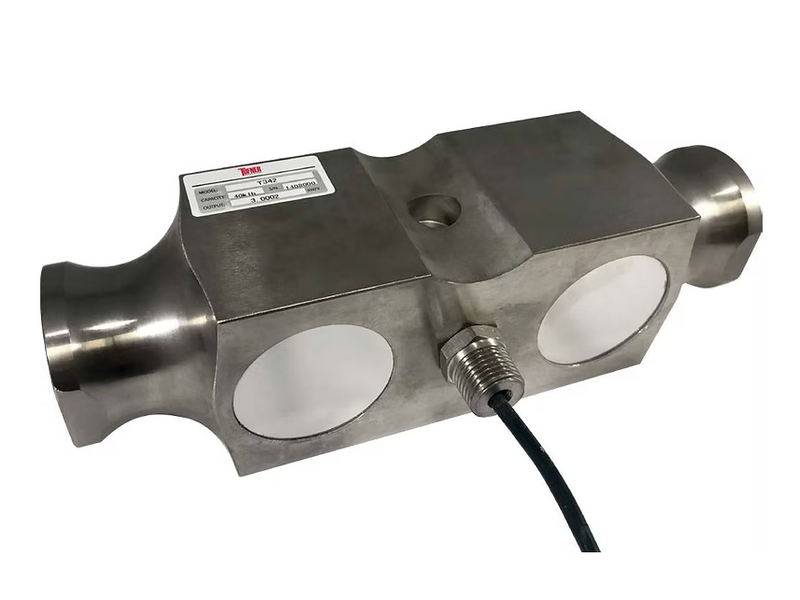

T342 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T342 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$749.00 - $899.00
$749.00
$749.00 - $899.00
$749.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T342 Double-Ended Beam Load Cell is constructed from nickel-plated alloy steel and protected with an IP67 rating, making it resilient against dust, moisture, and tough industrial conditions. Ideal for truck scales, floor scales, and other heavy-duty weighing systems, this load cell provides consistent and precise measurements under demanding loads. With its durable design and dependable performance, the T342 ensures long-lasting reliability in industrial weighing applications.

SPECIFICATION



MODEL NUMBER

CAPACITY

T342-20

20,000 lbs

T342-40

40,000 lbs

T342-50

50,000 lbs

T342-60

60,000 lbs

T342-65

65,000 lbs

T342-75

75,000 lbs

T342-100

100,000 lbs

T342-125

125,000 lbs


  • Rated Capacity: lb: 20K/40K/50K/60K/65K/75K/100K/125K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.02% F.S.
  • Repeatability: ±0.1% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Approval: CC 15-022
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard
    20K-40K: 40ft/12m
    Double-Shielded:
    50K-125K: 60ft/18m
    Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Artech: 80210
  • Coti Global Sensors: CG-5223
  • Revere: 5223
  • Sensortronics: 65040A-XX-1127W
  • Thurman: TSC 800

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
