T339 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T339 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$899.00 - $899.00
$899.00
$899.00 - $899.00
$899.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

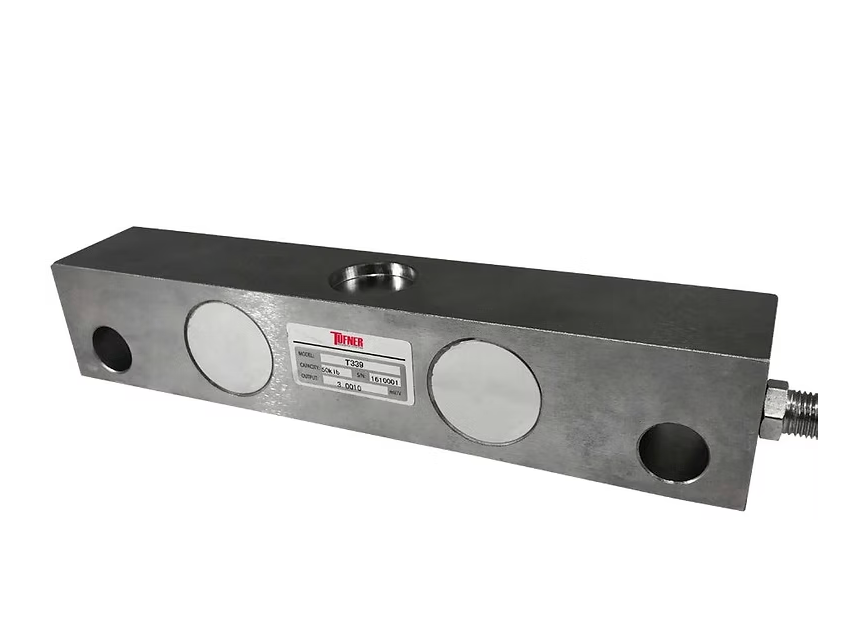

The T339 Double-Ended Beam Load Cell is crafted from nickel-plated alloy steel and features an IP67-rated seal, ensuring durability against dust, moisture, and harsh working environments. Perfect for truck scales, floor scales, and other industrial weighing systems, this load cell delivers stable and precise measurements under heavy loads. With its rugged construction and dependable accuracy, the T339 is a trusted choice for demanding applications where reliability is critical.

SPECIFICATION



MODEL NUMBER

CAPACITY

T339-40

40,000 lbs

T339-50

50,000 lbs


  • Rated Capacity: lb: 40K/50K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Double-Shielded: 50K/60K: 60ft/18m
    Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Coti Global Sensors: CG-STR
  • Epelsa: STR
  • First Weigh: LC32

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
