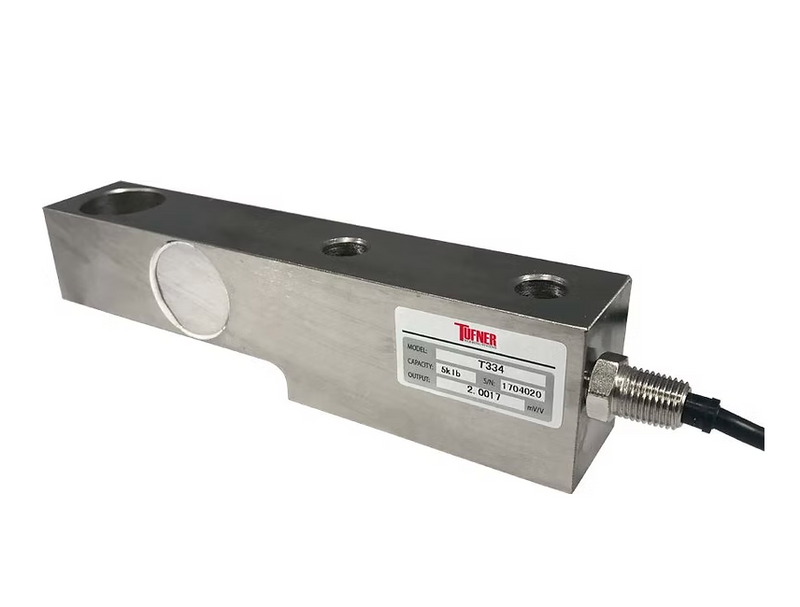

T334 Single-Ended Beam, Alloy Steel Load Cell

T334 Single-Ended Beam, Alloy Steel Load Cell

by Optima Scale
$399.00 - $699.00
$399.00
$399.00 - $699.00
$399.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T334 Single-Ended Beam, crafted from high-strength alloy steel, is designed for accuracy and durability in industrial weighing applications. Its rugged build ensures consistent performance under heavy loads, making it an ideal choice for platform scales and other precision systems. Imagine worry-free weighing with a dependable load cell that delivers stability and accuracy, even in demanding environments—this is the solution you’ve been looking for.

SPECIFICATION



MODEL NUMBER

CAPACITY

T334-2.5

2,500 lbs

T334-5

5,000 lbs

T334-10

10,000 lbs

T334-20

20,000 lbs


  • Rated Capacity: lb: 2.5K/5K/10K/20K
    kg: 1,000/1,500/2,500/5,000/10,000
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Cardinal: SB10000S
  • Cardinal: SB20000S
  • Cardinal: SB2500S
  • Cardinal: SB5000S
  • Coti Global Sensors: CG-SB250
  • Rice Lake: RLSB250

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
