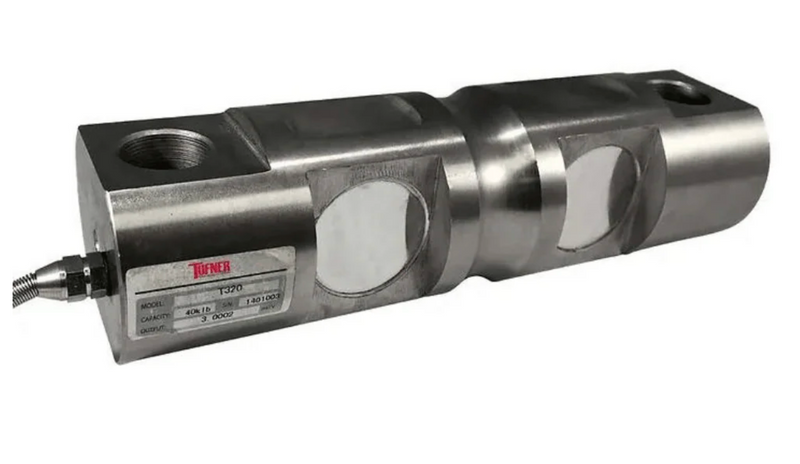

T320 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T320 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$649.00 - $2,499.00
$649.00
$649.00 - $2,499.00
$649.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T320 Double-Ended Beam Load Cell is engineered from nickel-plated alloy steel and designed with IP67 protection, making it resistant to dust and moisture for reliable long-term use. Ideal for truck scales, floor scales, and other heavy-capacity weighing systems, this load cell provides consistent accuracy and durability under demanding conditions. With its robust construction and precise performance, the T320 ensures stable and dependable weight measurement in every application.

SPECIFICATION



MODEL

CAPACITY

T320-5

5,000 lbs

T320-10

10,000 lbs

T320-20

20,000 lbs

T320-30

30,000 lbs

T320-40

40,000 lbs

T320-50

50,000 lbs

T320-60

60,000 lbs

T320-100

100,000 lbs

T320-150

150,000 lbs

T320-200

200,000 lbs

T320-250

250,000 lbs


  • Rated Capacity: lb: 10/20K/30K/40K/50K/60K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: STANDARD
    10K-40K: 40ft/12m
    DOUBLE-SHIELDED
    50K/60K: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Artech: 70210
  • Celtron: CSB
  • Coti Global Sensors: CG-5103
  • Revere: 5103
  • Rice Lake: RL70000
  • Sensortronics: 60058
  • Totalcomp: GDE03
  • Totalcomp: TDE03

WEIGHING MODULE AVAILABLE

  • T320-TM

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
