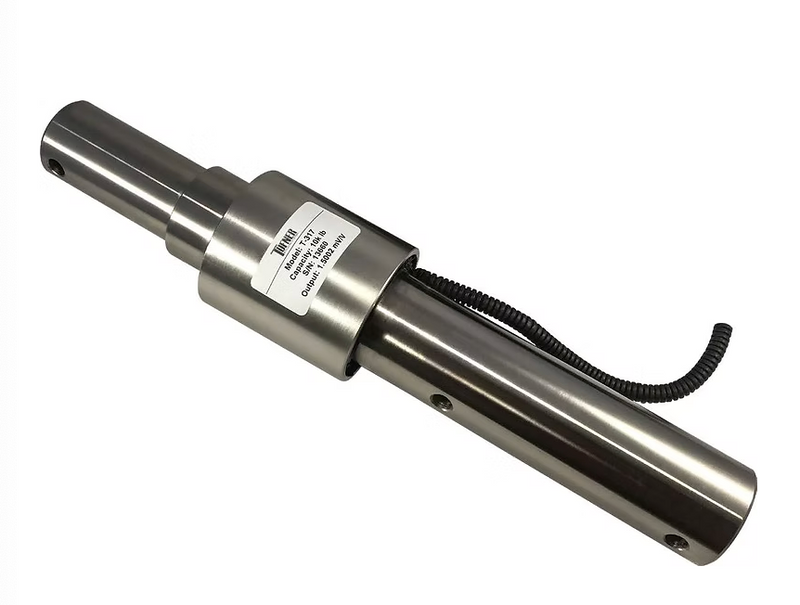

T317 Single-Ended Beam, Alloy Steel Load Cell

T317 Single-Ended Beam, Alloy Steel Load Cell

by Optima Scale
$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T317 Single-Ended Beam, constructed from high-strength alloy steel, delivers accurate, stable, and dependable results even in demanding applications.

This alloy steel load cell is designed for platform scales, industrial systems, and multi-cell setups that require consistent accuracy. Its robust build ensures durability under continuous operation, while maintaining the precision needed for commercial and industrial weighing. With the T317, you get a reliable solution that’s both tough and precise—built to handle your workload with confidence.



SPECIFICATION



MODEL NUMBER

CAPACITY

T317-10

10,000 lbs


  • Rated Capacity: 10K lb
  • Rated Output: 1.5mV/V
  • Non-Linearity: ±0.01% F.S.
  • Hysteresis: ±0.01% F.S.
  • Repeatability: ±0.05% F.S.
  • Creep (30 minutes): ±0.05% F.S.
  • Temperature Effect on Span: ±0.03% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-15V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Digi-star: DB&SB

    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
