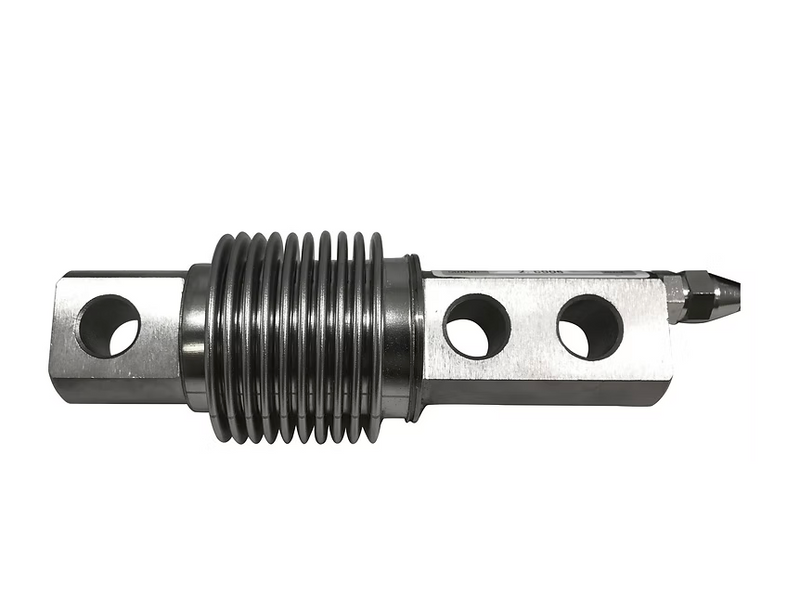

T316-SSW Single-Ended Beam, Stainless Steel | IP68 Welded Sealed Load Cell

T316-SSW Single-Ended Beam, Stainless Steel | IP68 Welded Sealed Load Cell

by Optima Scale
$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T316-SSW Single-Ended Beam, made of stainless steel with welded sealing and IP68 protection, ensures durability, precision, and reliability even under extreme conditions.

This stainless steel load cell is engineered for industrial weighing systems that demand both long-term accuracy and rugged protection. Its welded-sealed design keeps out moisture and debris, making it ideal for washdown environments or outdoor use. With its robust build and dependable performance, the T316-SSW offers the confidence you need for consistent weighing applications.

SPECIFICATION



MODEL NUMBER

CAPACITY

T316-SSW-15

15 kgs

T316-SSW-30

30 kgs

T316-SSW-50

50 kgs

T316-SSW-75

75 kgs

T316-SSW-150

150 kgs

T316-SSW-250

250 kgs

T316-SSW-300

300 kgs


  • Rated Capacity: lb: 30/50/100/250/500/600
    kg: 15/30/50/75/150/250/300
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-15V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

    • Coti Global Sensors: CG-LC22
    • First Weigh: LC22

    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
