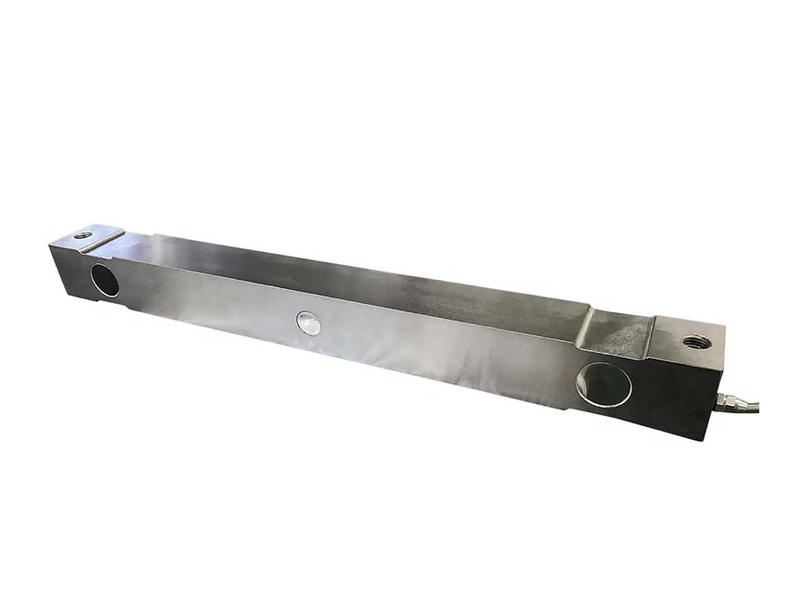

T314 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T314 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$699.00 - $699.00
$699.00
$699.00 - $699.00
$699.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T314 Double-Ended Beam Load Cell, made from nickel-plated alloy steel, delivers high strength and long-term reliability even under rugged conditions. Its IP67 sealing provides excellent protection against dust and moisture, ensuring accurate performance in demanding applications. Designed for truck scales, industrial platforms, and multiple-cell systems, this load cell offers a dependable solution where accuracy and durability are critical.

SPECIFICATION



MODEL NUMBER

CAPACITY

T314-25

25,000 lbs


  • Rated Capacity: lb: 25K
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.01% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.5% F.S.
  • Creep (30 minutes): ±0.05% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Double Shielded: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Coti Global Sensors: CG-SLS
  • Massload: ML-1100

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
