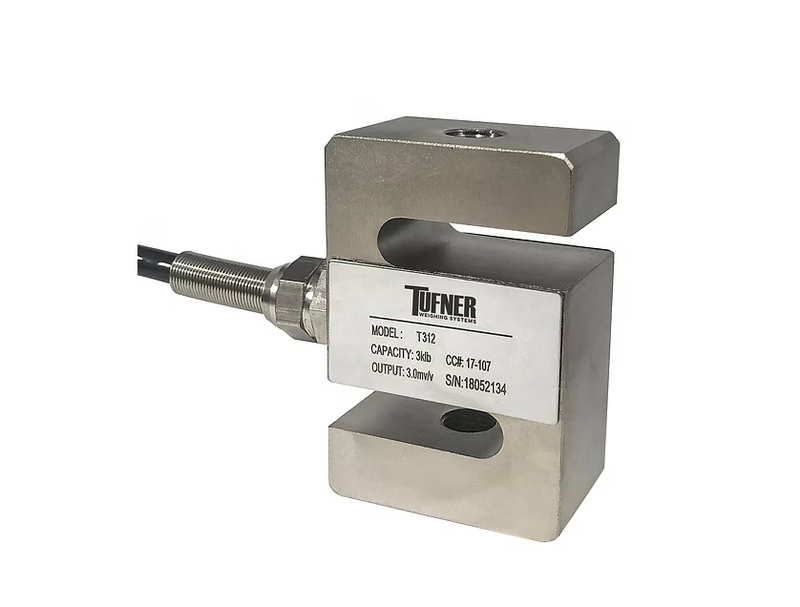

T312-SSW S-Beam, Stainless Steel Load Cell | IP68 NTEP 1:10,000 Class III L, Single Cell

T312-SSW S-Beam, Stainless Steel Load Cell | IP68 NTEP 1:10,000 Class III L, Single Cell

by Optima Scale
$299.00 - $899.00
$299.00
$299.00 - $899.00
$299.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T312-SSW S-Beam Load Cell is crafted from high-grade stainless steel, ensuring maximum durability and resistance to corrosion in tough industrial or outdoor conditions. With IP68 sealing and NTEP 1:10,000 Class III L Single Cell certification, it delivers proven accuracy and long-term reliability for both tension and compression applications. Imagine seamless weighing performance even in the most demanding environments—this load cell is the dependable solution for precision and strength.

SPECIFICATION



MODEL NUMBER

CAPACITY

T312-SS-0.05

50 lbs

T312-SS-0.1

100 lbs

T312-SS-0.15

150 lbs

T312-SS-0.2

200 lbs

T312-SS-0.25

250 lbs

T312-SS-0.3

300 lbs

T312-SS-0.5

500 lbs

T312-SS-0.75

750 lbs

T312-SS-1

1,000 lbs*

T312-SS-1.5

1,500 lbs*

T312-SS-2

2,000 lbs*

T312-SS-2.5

2,500 lbs*

T312-SS-3

3,000 lbs*

T312-SS-5

5,000 lbs*

T312-SS-10

10,000 lbs*

T312-SS-15

15,000 lbs

T312-SS-20

20,000 lbs
*1,000-10,000 NTEP approved

  • Rated Capacity: lb: 50/100/150/200/250/300/
    500/750/1K/1.5K/2K/2.5K/3K/
    5K/10K/15K/20K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.02% F.S.
  • Approval: CC 17-107A1
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Input Resistance: 350±10Ω
  • Output Resistance: 350±5Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 200% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Material/Finish: Stainless Steel
  • Cable Length: STANDARD
    50-10K lbs: 20ft/6m 15K-40K lbs: 40ft/12m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Artech: 20210
  • Celtron: STC
  • Coti Global Sensors: CGSB

WEIGHING MODULE AVAILABLE

  • T312-SS-TM





SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
