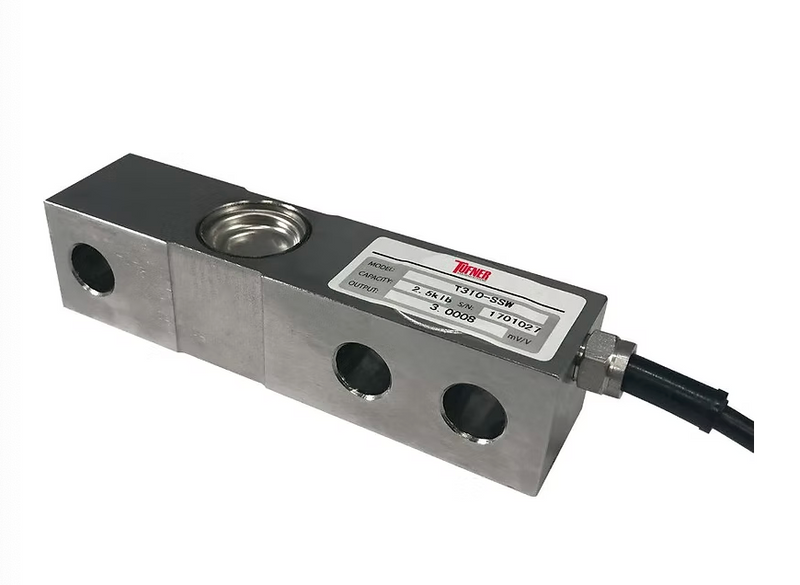

Name: T310-SSW Single-Ended Beam, Stainless Steel | IP68 Welded Sealed | NTEP 1:5,000 Class III Load Cell
Brand: Optima Scale
SKU: T310-SSW-0.5
Price: 249.0 USD
Availability: InStock

T310-SSW Single-Ended Beam, Stainless Steel | IP68 Welded Sealed | NTEP 1:5,000 Class III Load Cell

by Optima Scale

$249.00 - $649.00

$249.00

$249.00 - $649.00

$249.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

Quantity

The T310-SSW Single-Ended Beam Load Cell is the answer. Made from stainless steel with a welded seal and IP68 protection, it delivers durability, reliability, and precision in demanding industrial applications.

This NTEP-certified Class III load cell is designed for multiple-cell scale systems, offering 1:5,000 resolution for consistent and accurate weight measurements. With its rugged stainless steel construction and waterproof sealing, the T310-SSW ensures long-lasting performance whether used in harsh outdoor conditions, washdown environments, or heavy-duty weighing systems.

SPECIFICATION

MODEL NUMBER	CAPACITY	ENVELOPE
T310-SSW-0.5	500 lbs	Small
T310-SSW-0.75	750 lbs	Small
T310-SSW-1	1,000 lbs	Small
T310-SSW-1.5	1,500 lbs	Small
T310-SSW-2	2,000 lbs	Small
T310-SSW-2.5	2,500 lbs	Small
T310-SSW-4	4,000 lbs	Small
T310-SSW-5	5,000 lbs	Small
T310LE-SSW-5	5,000 lbs	Large
T310-SSW-10	10,000 lbs	Large
T310-SSW-15	15,000 lbs	Large
T310-SSW-20	20,000 lbs	Large

Rated Capacity: lb: 1500/750/1K/1.5K/2K/2.5K/4K/5K/10K/15K/20K
kg: 300/500/1,000/1,500/2,000/2,500/3,000/5,000/7,000/10,000
Rated Output: 3.0mV/V
Non-Linearity: ±0.03% F.S.
Hysteresis: ±0.03% F.S.
Repeatability: ±0.02% F.S.
Creep (30 minutes): ±0.02% F.S.
Temperature Effect on Span: ±0.0015% F.S./C
Temperature Effect on Zero: ±0.0027% F.S./C
Zero Balance: ±1.00% F.S.
Insulation Resistance: >5000 MEGOHMS
Input Impedance: 385±20Ω
Output Impedance: 350±3Ω
Safe Overload: 150% F.S
Destructive Load: 300% F.S
Excitation Recommended: 10-15V AC/DC
Material/Finish: Stainless Steel
Operation Temperature: -10°C - + 40°C (14°F - 104°F)
Cable Length: Standard Cable - 20ft/6m
Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
White...... -Signal

INTERCHANGEABLE PRODUCTS

Artech: 2230310
Celtron: SQB SS
Coti Global Sensors: CG-23-SSW-03
Fairbanks: 3-54786-1
HBM: H35 RLWS
Mettler-Toledo: TB601016-020-1K lb
Mettler-Toledo: TB601016-020-2.5K lb
Mettler-Toledo: TB601017-020-4K lb
Mettler-Toledo: TB601018-020-5L lb
Mettler-Toledo: TB601019-008-500 lb
Rice Lake: RL35023S
Revere: 9123
Sensortronics: 65083S
Transcell: SBS
Transcell: SBS

WEIGHING MODULES AVAILABLE

T310-TM-SSW

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
