SS-200 Skid Steer Scale by Walz Scale.

Walz SS-200 Skid Steer Scale

by Walz
$3,300.00 - $3,300.00
$3,300.00
$3,300.00 - $3,300.00
$3,300.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Walz Scale and Scanner Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From East Peoria, IL

The Walz SS-200 Skid Steer Scale is built for commercial and industrial weighing workflows.

Key Features

  • Advanced onboard skid steer weighing for improved repeatability
  • Hydraulic weighing method (on-machine)
  • Made in the USA
  • Accurate hydraulic scale system
  • Convenient static weighing system
  • Kit includes weight terminal, pressure sensor & manual
  • Very simple installation
  • Operates on DC power
  • Designed for heavy duty industrial use
  • Not legal for trade
  • Hydraulic Fittings & Printer Kits available as add-ons
  • Typical Accuracy 98% or better

Ideal Use Cases

  • Skid steer operations needing more consistent load indication
  • Batching and loading workflows where repeatability matters

Specifications

Brand Walz
Model SS-200
Product Type Skid steer scale
Weighing Method Hydraulic (onboard)
Accuracy 98%
Manufactured In USA
Warranty 1 year
Legal for Trade (NTEP) No

What's Included

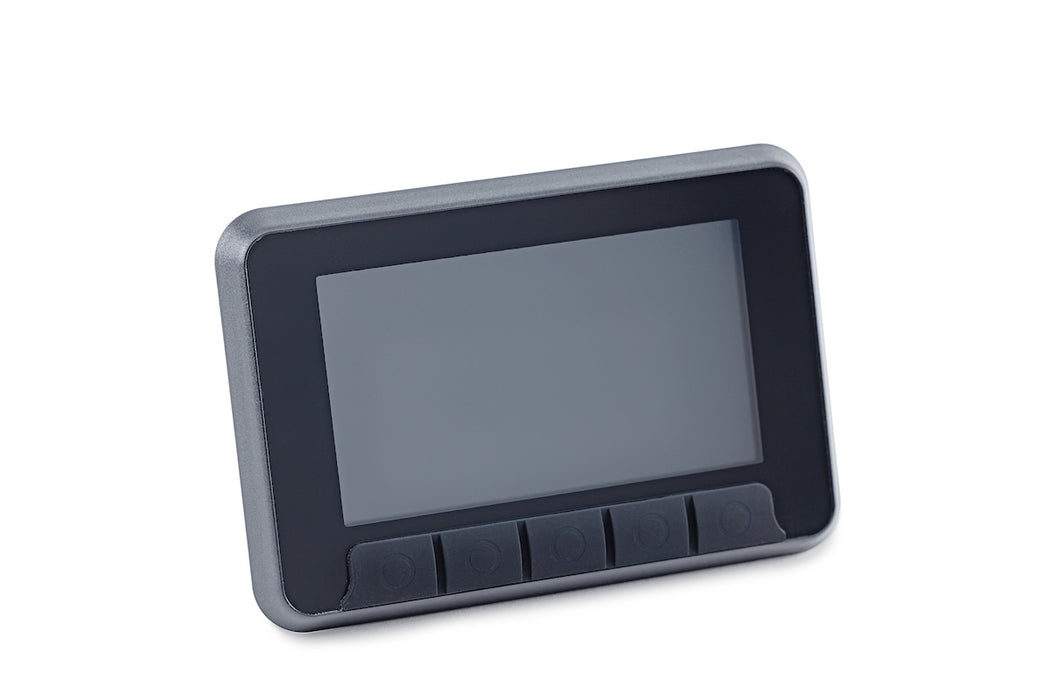

  • Weight terminal, pressure sensor & manual

Optional Accessories

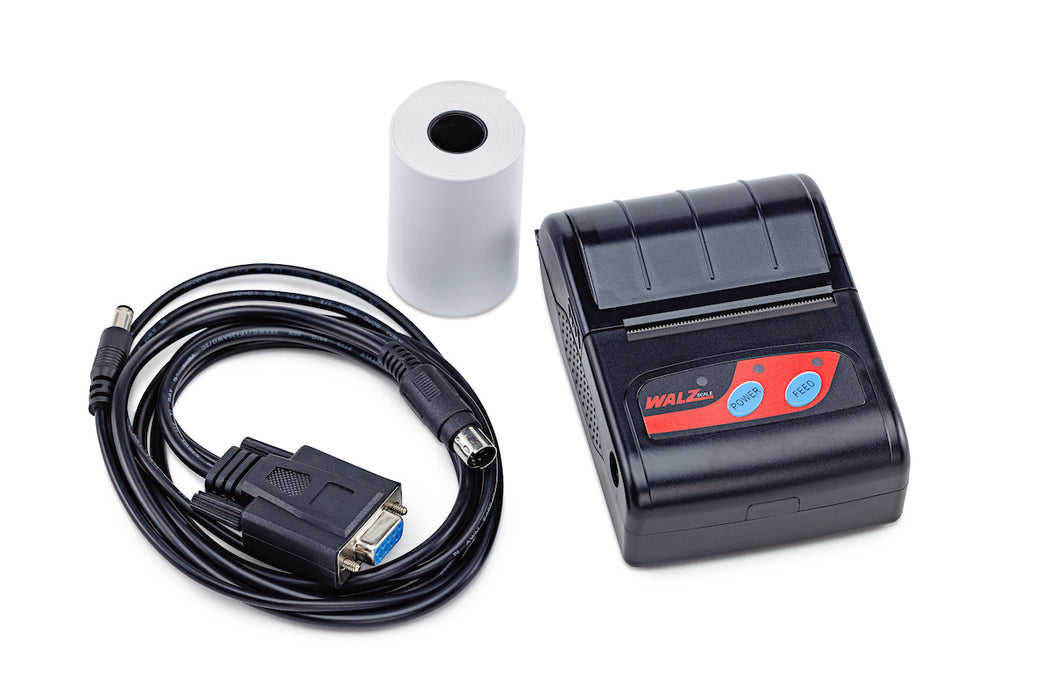

  • SS-KT Ticket Printer Kit

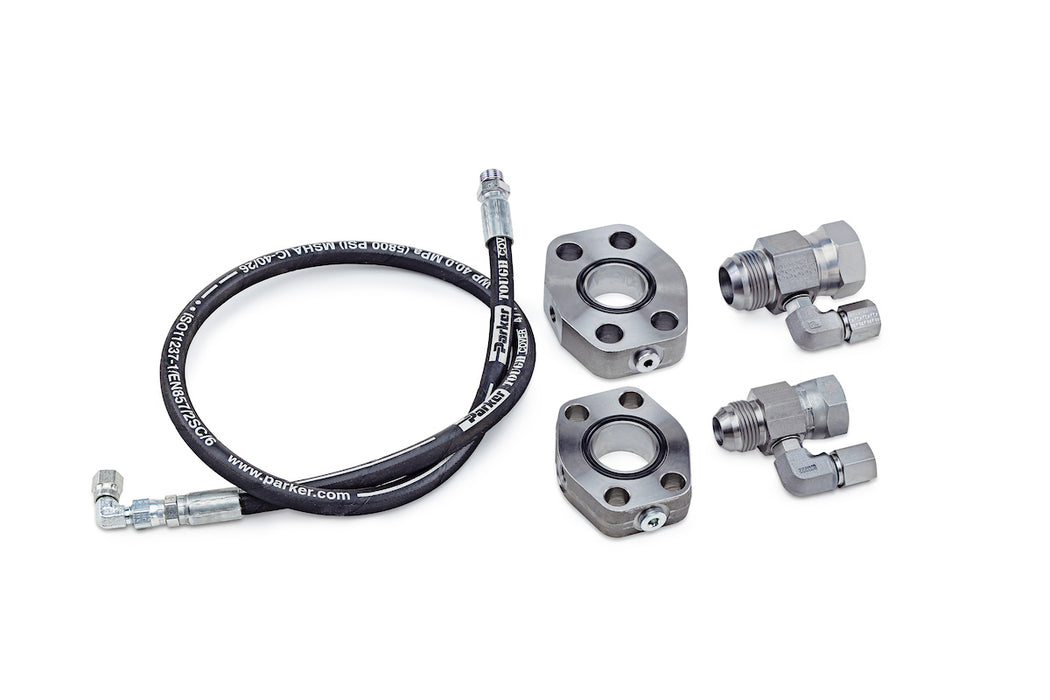

  • Machine specific fittings kit
  • 3″ hydraulic hose
  • 12VDC ticket printer kit
  • Weigh in Motion Option (dual pressure sensors, proximity sensors) With this optional feature, there is no need to stop to capture the load weight — simply lift and the system will automatically capture and display the weight

Other Information

  • Real world typical accuracy of 98%
  • 100,000 Lb+ lifting capacity
  • Weigh in both pounds and/or kilograms (lbs or kg)
  • Configurable graduations: 1, 2, 5, 10, 20 or 50 lb/kg increments
  • Easy-to-use operation, with automated no-touch weight capture
  • Water-resistant, corrosion proof and shock resistant housing, IP65

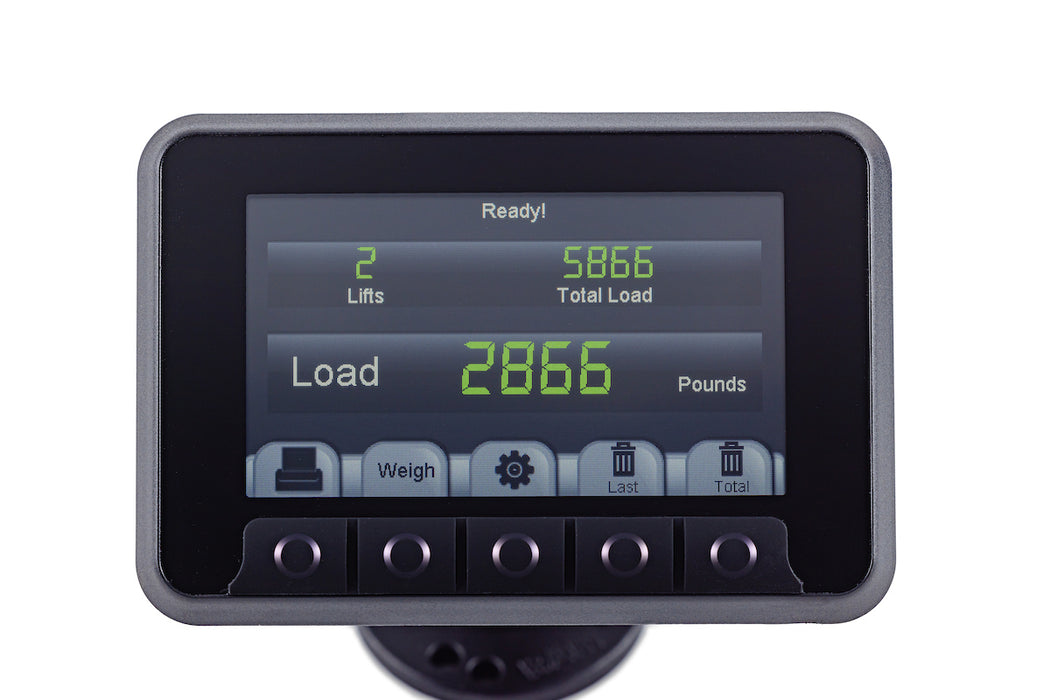

  • Industry best display for easy operation, allowing for a safe, clear view of the load data
  • 5000 PSI sensor (IP67)
  • Weight totalization feature
  • Tare functionality
  • Display modes for current load or total truck weight
  • Full range push button zero
  • Simple installation: Approximately 1-2 hours
  • Powered of the machine battery 7-24 VDC
  • For machines with 36 VDC or 48 VDC power supply, we recommend a step down converter
  • Calibration test weights should be greater or equal to 10% of the scale/machine capacity
  • Walz 1-Year Manufacturer’s Warranty

Shipping & Installation Notes

  • Confirm skid steer hydraulic configuration and fitment prior to ordering

FAQ

  • What warranty comes with this? 1 year.
  • Where is it manufactured? USA.
