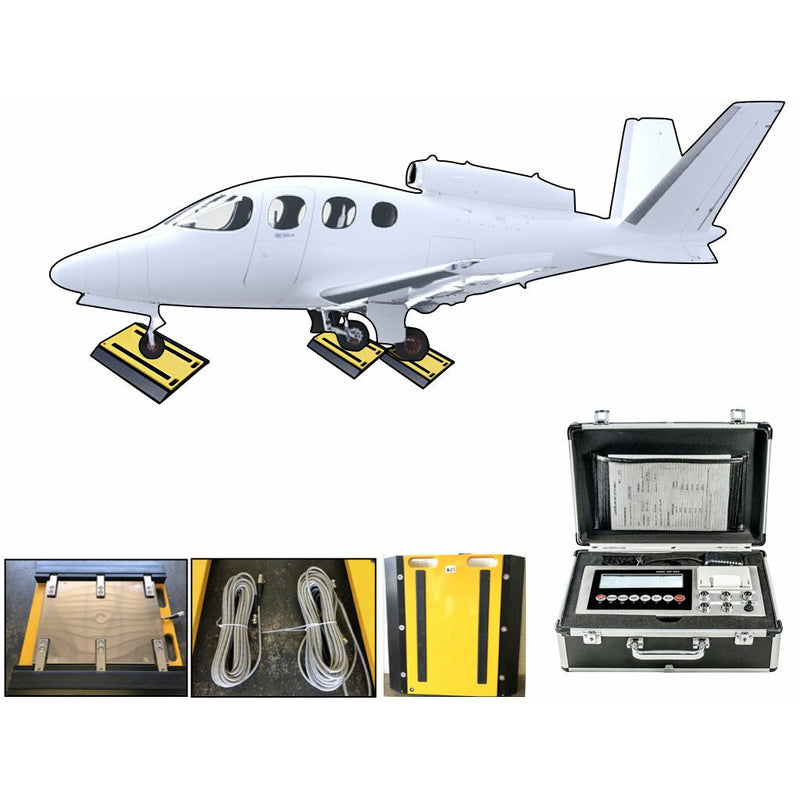

The SL-AIR-928 Weigh Pad System offers a groundbreaking solution that simplifies complex weighing tasks for various vehicles. Equipped with our advanced Multi-Channel SL-7561 indicator, this system provides total weight and details of individual wheel weights. Moreover, its integrated briefcase indicator with a built-in printer allows for immediate documentation, efficiently displaying weight, date, and time.

Key Benefits:

• Precision Weighing: Each pad boasts six load cells, ensuring accuracy. They have a capacity of 25,000 lbs per pad and a combined total capacity of 75,000 lbs.
• Versatility: This system can be customized with 2, 4, or 6 pads to meet various needs, whether you're weighing trucks, trailers, boats, or aircraft.
• Portability and Durability: Crafted from high-strength, lightweight aluminum, the pads are portable and built for heavy-duty use. They feature interlocking skid-resistant ramps for added safety.
• Advanced Technology: The system includes a 33′ long metal shielded cable for secure connections and offers options for a wireless tablet or military-grade system with data collection software.
• Comprehensive Recording: Not just for weight, the system’s briefcase indicator with printer also logs date and time, perfect for record-keeping and compliance.
• Indicators: The SL-7561, available in standard and advanced models, consistently delivers accurate and precise measurements.

Indicator Key Features:

• Compatibility with Multiple Channels: Functions with up to four weighing pads, tailored for static axle scales.
• Diverse Weighing Functions: Supports both individual gross weighing and cumulative weighing capabilities.
• Built-in Printing Technology: Integrated needle printer for direct printout in multiple formats.
• Functional Display and Interface: This device features a 5.3 x 1.4-inch LCD and a splash-proof keyboard. It supports Tare, Zero, Print, Save, Check, and Delete operations.
• Measurement Flexibility: Offers kilograms (kg) and pounds (lb) readings.
• Extended Connectivity: Can link with PCs, additional large displays or scoreboards, and printers for advanced data handling.
• Optional Wireless Feature: Wireless functionality is available to enhance connectivity.
• Easy Configuration of Date and Time: Simplified settings for quick adjustments.
• Powered for Convenience: Uses a 6v/4.5Ah battery with a 9v/1.2A adapter.

Indicator Specifications:

• Display: 5.3 inches by 1.4 inches LCD
• Printing Capability: Built-in needle printer with manual and automatic modes
• Weighing Units: Kilograms (kg), Pounds (lb)
• Functions: Tare, Zero, Print, Save, Check, Delete
• Battery: 6v/4.5Ah
• Adapter: 9v/1.2A
• Connectivity: Can connect to up to 4 weighing pads, large display/scoreboards, PC, or printer
• Optional Features: Wireless capability
• Keyboard and Display: Splash-proof design
• Weight Distribution Display: Shows individual scale/pad percentage of total weight

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
