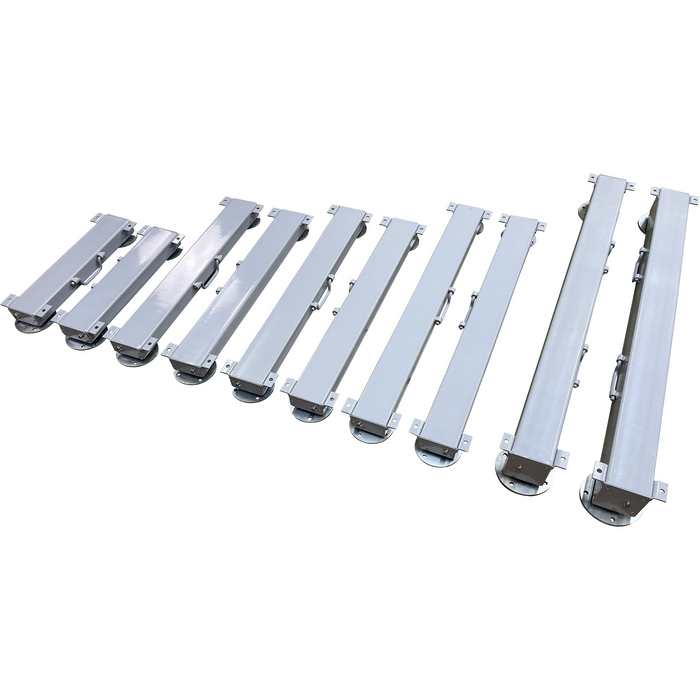

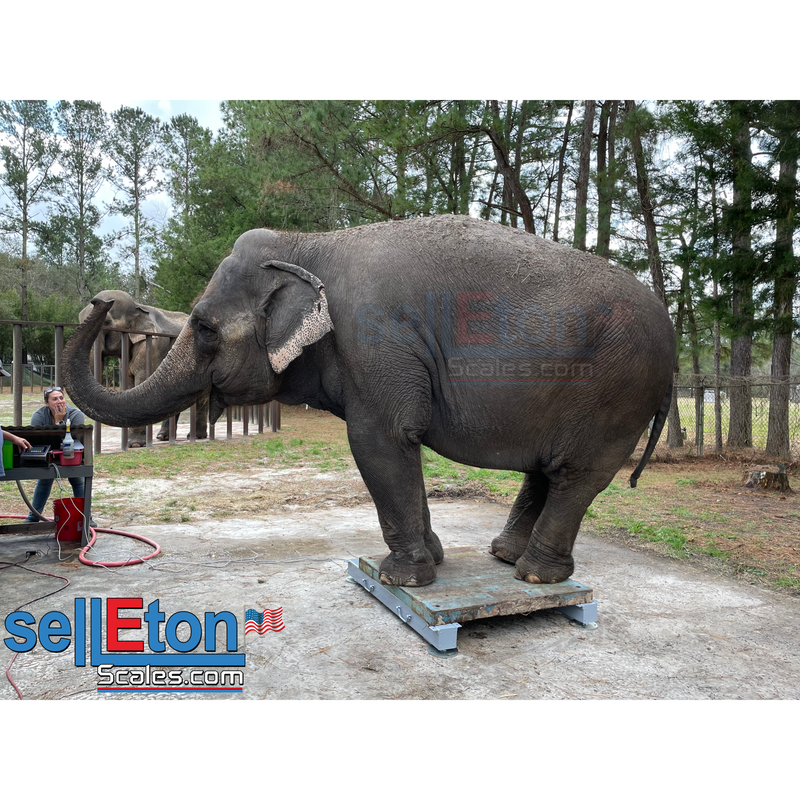

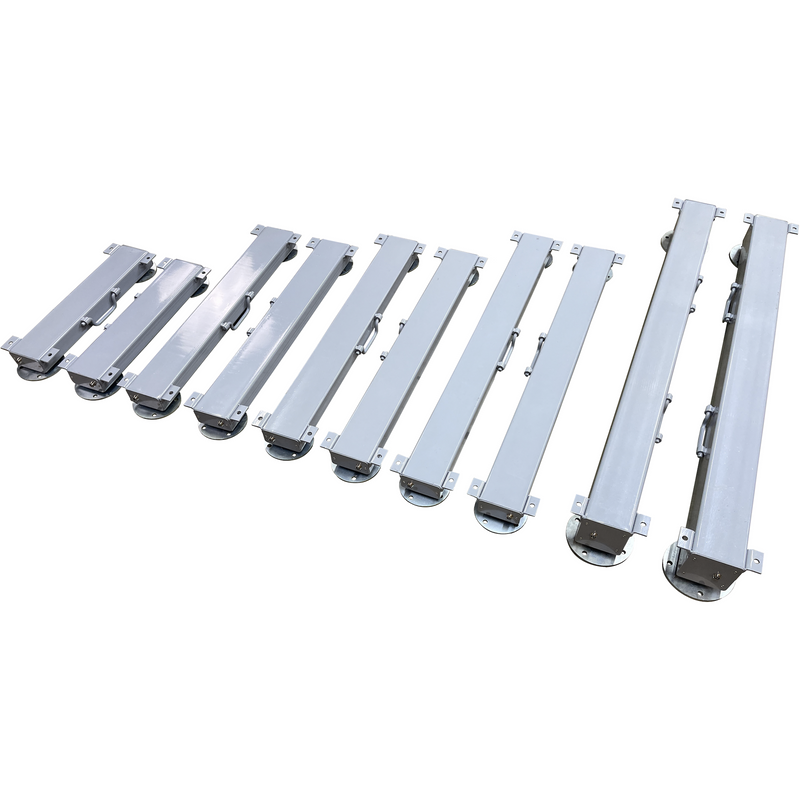

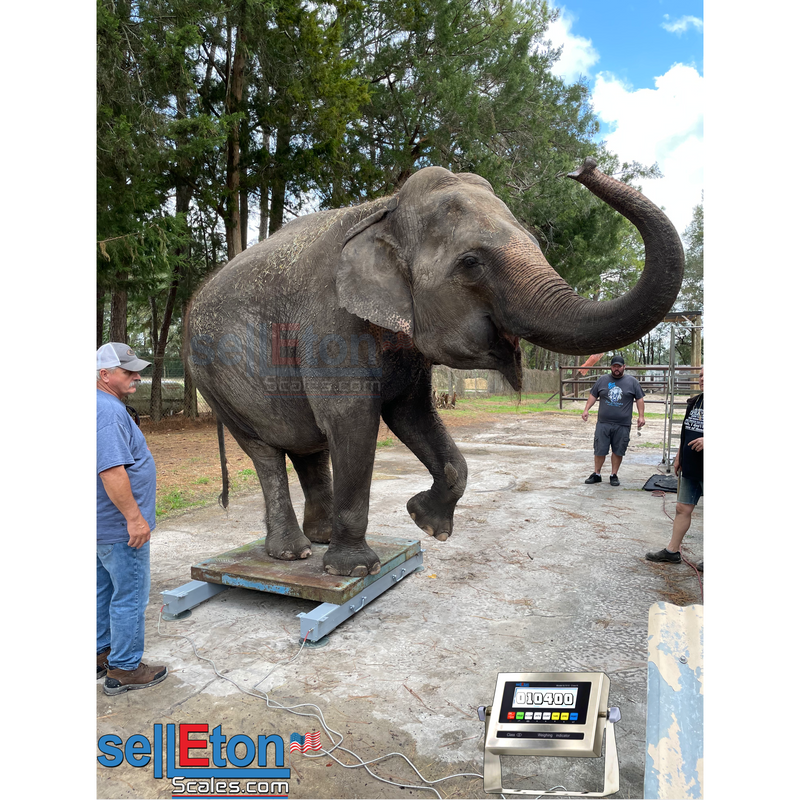

The SL-919-HD Heavy Duty Weigh Beam Bar System is ideal for diverse environments like farms, warehouses, and zoos. It allows easy customization to handle all your weighing needs. With a setup designed to accommodate lively animals, you can ensure precise readings without the hassle.

Key Benefits:

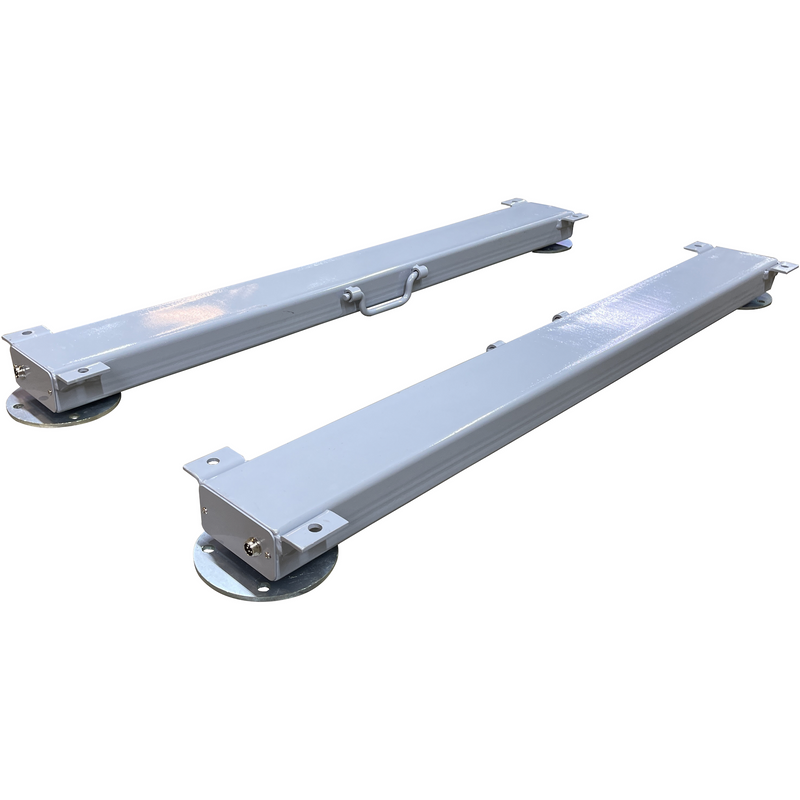

• Portable Design: Easily transportable with integrated carrying handles, perfect for use in tight spaces or remote locations.
• Durable Construction: 100% welded steel with a powder-coated finish ensures protection against rodents and harsh weather conditions.

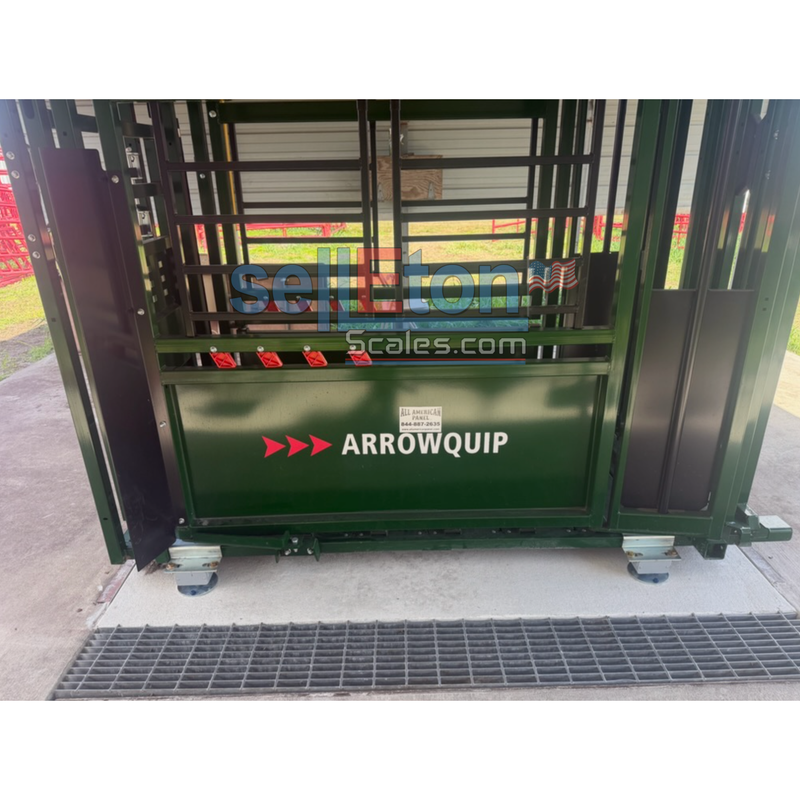

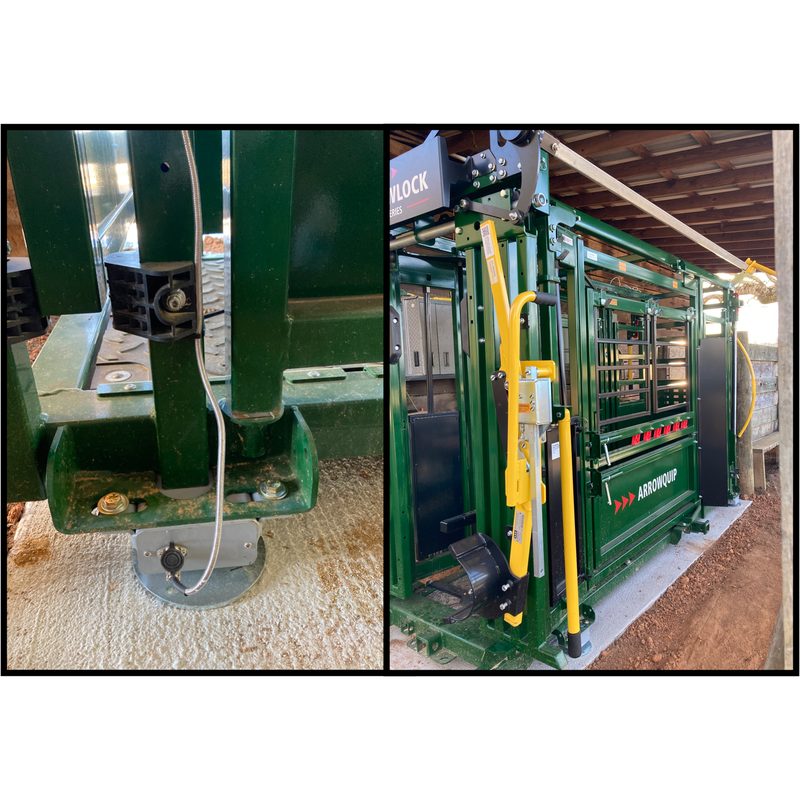

• Versatile Use: The beams can be spread to accommodate various load types, including small cages, chutes, or unusual shapes.
• Animal Weighing Function: Features an indicator with a special function to secure accurate readings of active animals, making it ideal for veterinary practices or livestock management.

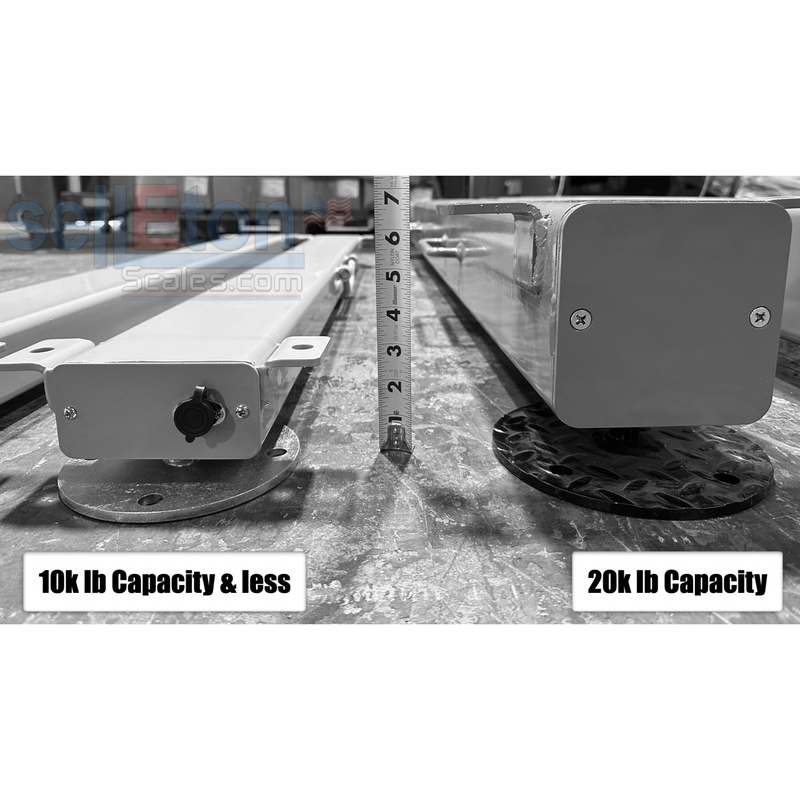

• High Capacity and Overload Protection: Alloy steel nickel-plated load cells offer a high capacity up to 20,000 lbs with 200% overload protection, providing peace of mind in heavy-duty applications.

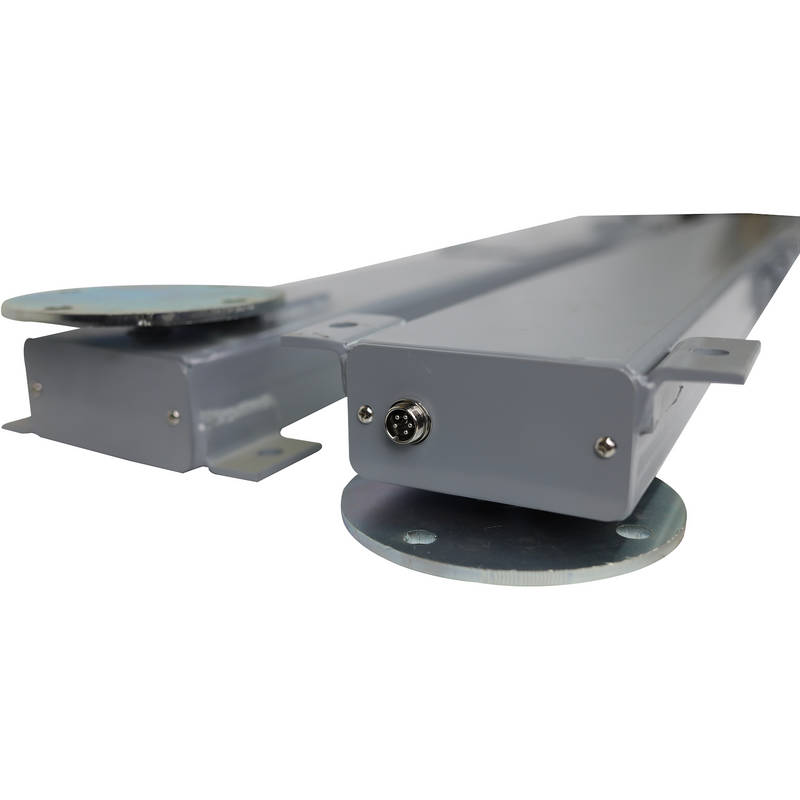

• Easy Connectivity and Setup: Comes with a 15’ quick-connecting stainless steel mesh shielded cable and easy-to-use leveling feet for quick setup and breakdown.

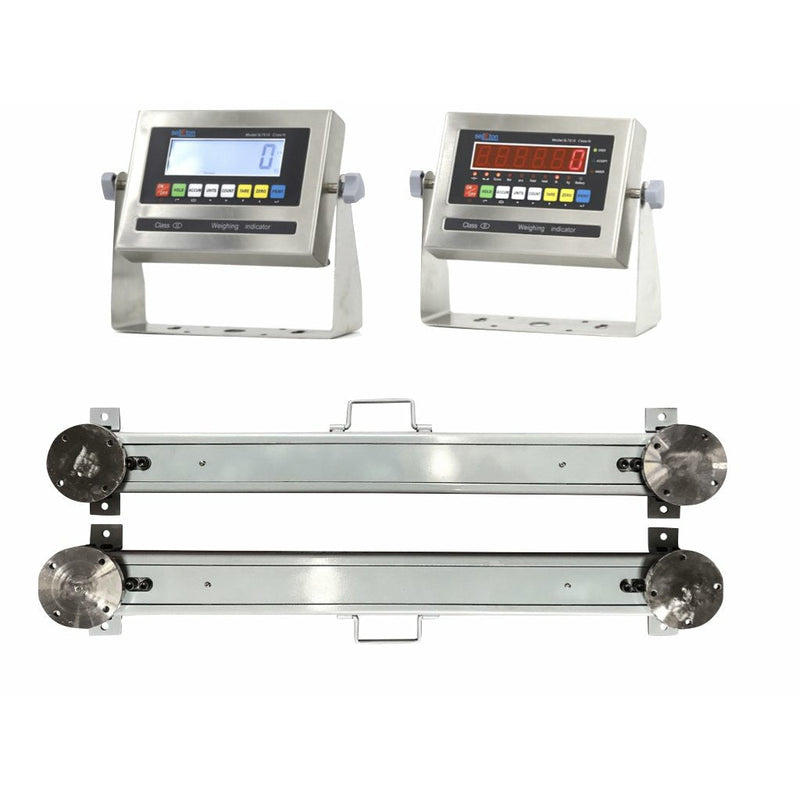

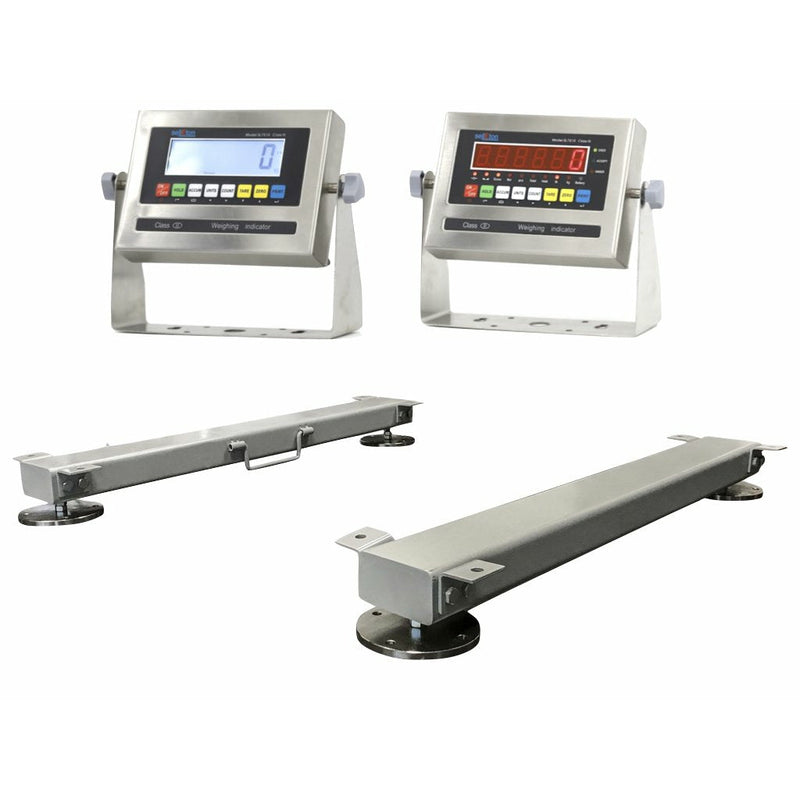

• Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; battery included.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
