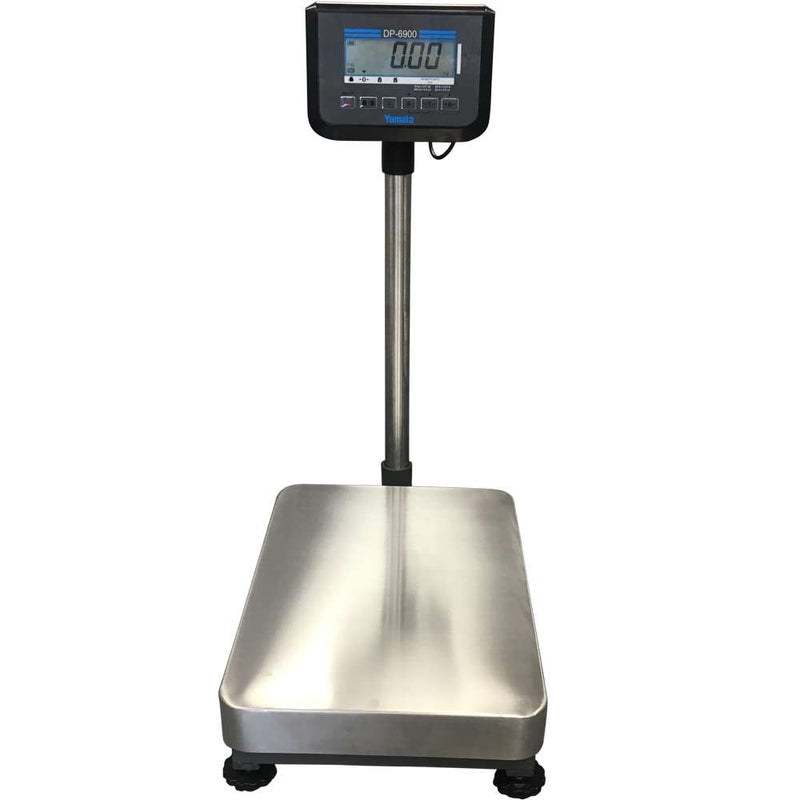

The DP 6900 Series is a durable bench and receiving scale line engineered for warehouses, food facilities, shipping stations, and industrial environments that require reliable performance and precise measurements. These models feature a stainless steel platform, tilting indicator head, large LCD display, and dual power options for flexible everyday use.

The scale supports multiple weighing modes and includes checkweighing functions, gross or net weighing, and programmable auto off to improve workflow efficiency. With a strain gauge load cell system and rugged ABS housing, the DP 6900 Series is built for continuous commercial operation.

NTEP-approved legal for trade in the US and Canada

Key Features

• Pound, kilogram, ounce, and pound ounce units
• Large tilted and rotating LCD indicator
• Rechargeable battery or AC operation
• Removable stainless steel platform
• Checkweighing with LED over or under indicator
• Gross or net weighing
• Basic industrial functions for receiving and processing
• RS 232 serial output
• Programmable auto off
• Durable ABS indicator housing with stainless steel base

Model Variants

DP 6900 60

Capacity
• 60 lb x 0.02 lb
• 30 kg x 0.01 kg
• 960 oz x 0.5 oz
• 60 lb x 0.5 oz

DP 6900 150

Capacity
• 150 lb x 0.05 lb
• 60 kg x 0.02 kg
• 2400 oz x 1 oz
• 150 lb x 1 oz

DP 6900 300

Capacity
• 300 lb x 0.1 lb
• 150 kg x 0.05 kg
• 4800 oz x 2 oz
• 300 lb x 2 oz

Technical Specifications

Platform Size
13.8 in x 19.7 in stainless steel platform, removable
(350 mm x 500 mm)

Display
5 digit, 7 segment LCD with annunciators
Character size: 1.3 in x 0.7 in

Power
Rechargeable battery or AC adapter
Battery life:
• Normal use: approximately 40 hours
• Charging time: approximately 12 hours

Weighing System
Strain gauge load cell

Housing Material
ABS indicator with stainless steel base

Operating Temperature
14 F to 104 F
( minus 10 C to 40 C)

Functions
Basic weighing, tare, checkweighing, gross or net weighing, hold, accumulation, auto backlight, configurable settings
RS 232 serial output
