Optima Scale OP-928 Portable Axle Weighing Pads - Northline Scale

Optima Scale OP-928 Portable Axle Weighing Pads

by Optima Scale
$2,540.00 - $6,195.00
$2,540.00
$2,540.00 - $6,195.00
$2,540.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

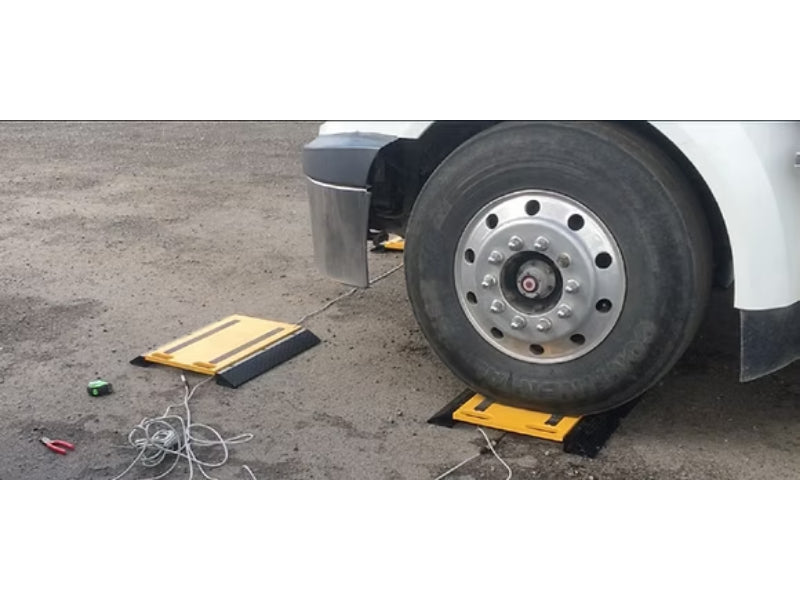

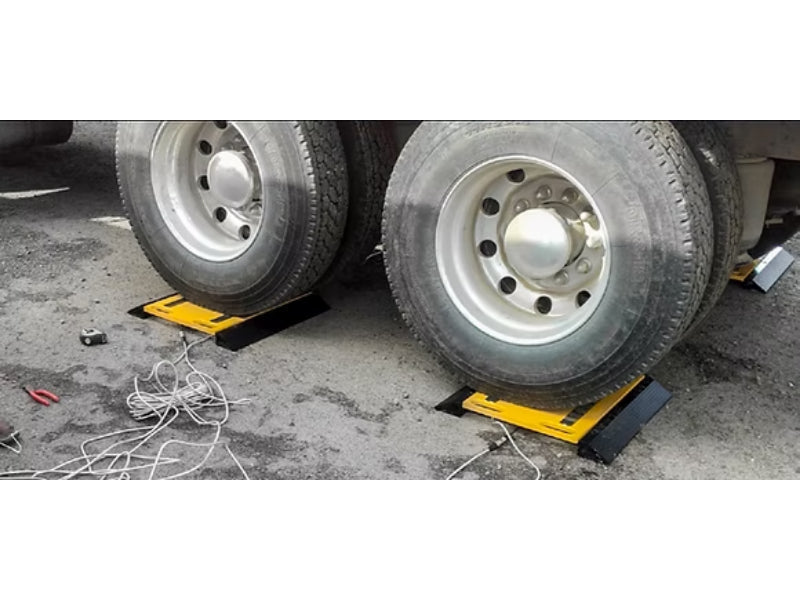

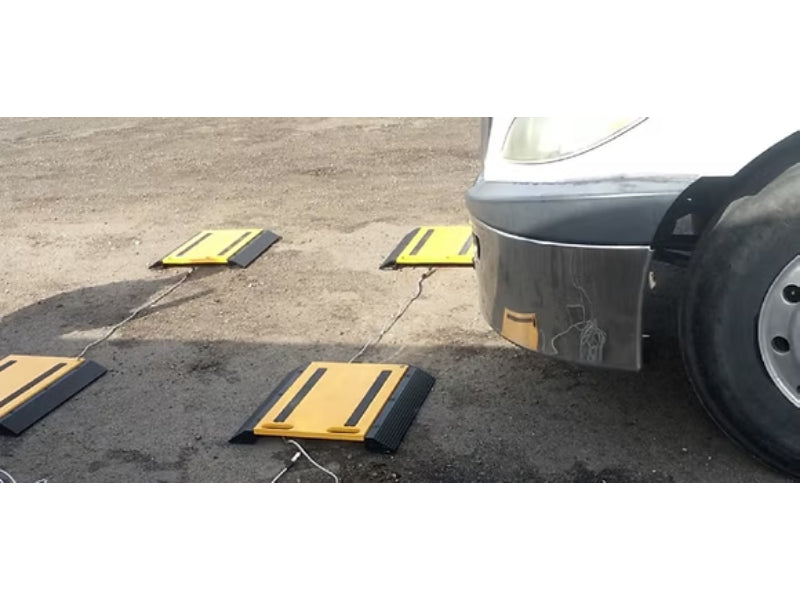

The Optima OP-928 Portable Axle Weighing Pads are designed for industrial applications requiring accurate and portable vehicle weight measurements. These heavy-duty scales are ideal for logistics, transportation, construction, and compliance checks.

FEATURES

  • Portable, low profile and heavy duty construction
  • Easily weighs large vehicles such as trucks, vans, tankers and trailers
  • Interlocking skid resistance ramps
  • 33’ long shielded metal cable
  • Two handles and two wheels for easy carry and moving
  • Easy to use; driver can operator and weigh single-handedly
  • Includes indicator suitcase for protection and portability

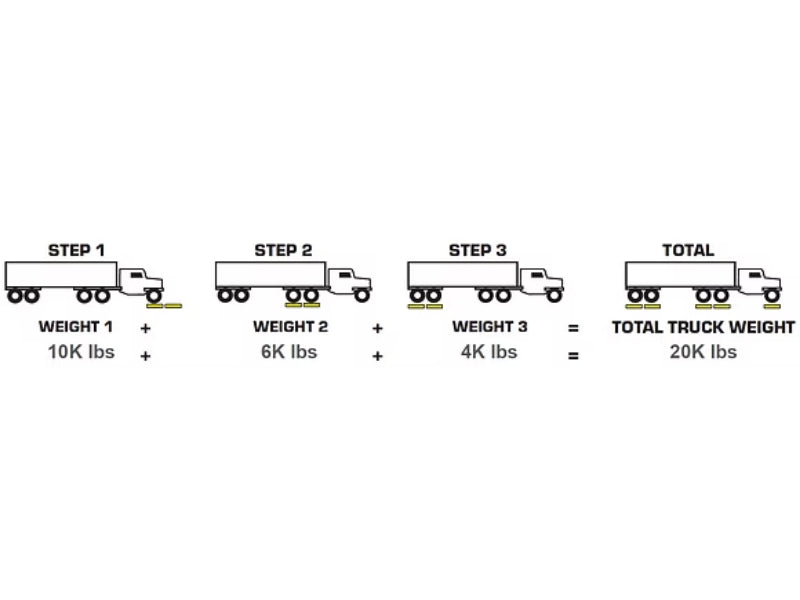

  • Built-in printer that prints weight of each axle andaccumulates total with time and date
  • Larger options/high capacities available
  • Optional Axle pad portable carrying cart availiable

INDICATOR FEATURES

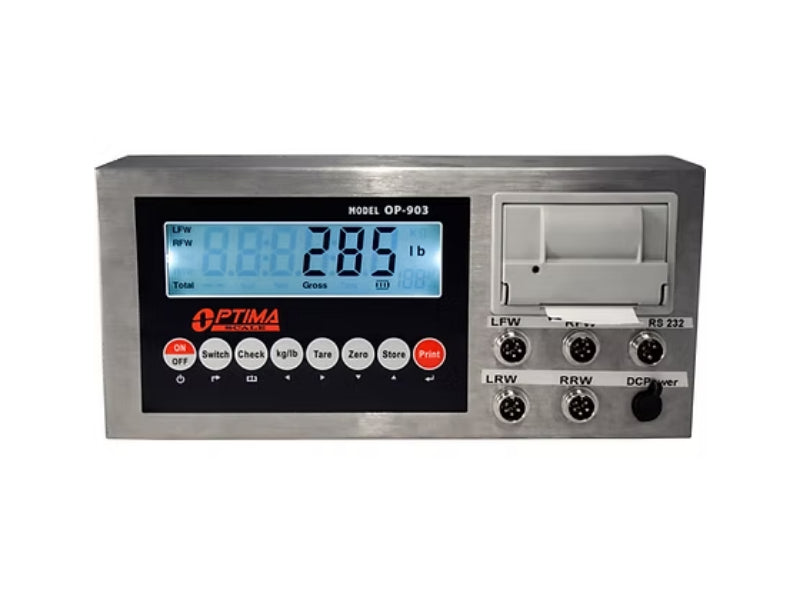

  • OP-903 indicator with LCD display with briefcase
  • Included printer
  • 1" Tall backlit display
  • Rechargeable battery
  • Stainless Steel enclosure
  • AC adapter included
  • Multiple weighing units: (lb/kg)
  • Gross/Tare/Zero/Hold functions
  • Accumulation weighing
  • Splash proof  keyboard and display
  • Connects to a remote display

OPTIONAL ACCESSORIES

  • Printer
  • Remote Display
  • Software
  • Indicator Stand (standard or stainless steel)
  • Wireless (call for details)

SPECIFICATIONS

  • Material: Aircraft Aluminum
  • Overload Protection: 200%
  • Indicator: OP-903 with protective case
  • Power: AC/DC, built-in rechargeable battery (100 hrs)
  • Capacity: 10,000 lbs - 25,000 lbs each
  • Ramp Length: 3 in
  • Cable Length: 33 ft
  • Warranty: 1 year limited warranty
Model # # of Pads Capacity per Pad Accuracy Overall Capacity Pad Size (W × L × H) Weight per Pad
OP-928-2-1614 2 10,000 lb × 5 lb ±0.05% 20,000 lbs 16″ × 14″ × 1.5″ 40 lbs
OP-928-4-1614 4 10,000 lb × 5 lb ±0.05% 40,000 lbs 16″ × 14″ × 1.5″ 40 lbs
OP-928-2-2416 2 25,000 lb × 10 lb ±0.1% 50,000 lbs 24″ × 16″ × 2″ 60 lbs
OP-928-4-2416 4 25,000 lb × 10 lb ±0.1% 100,000 lbs 24″ × 16″ × 2″ 60 lbs












SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Optima Scales U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
