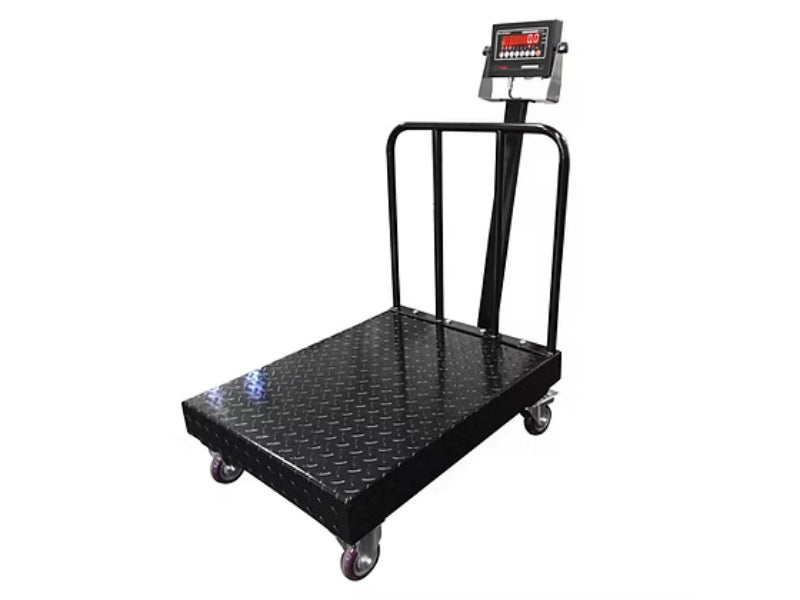

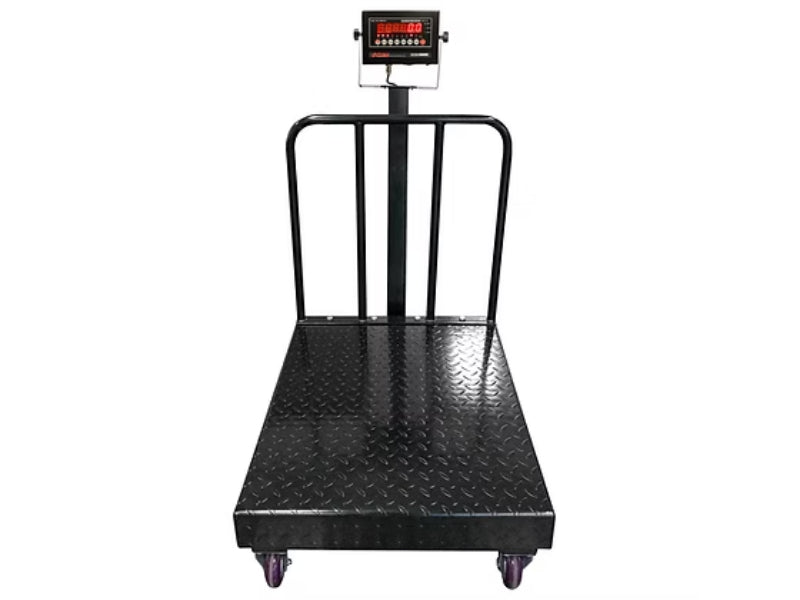

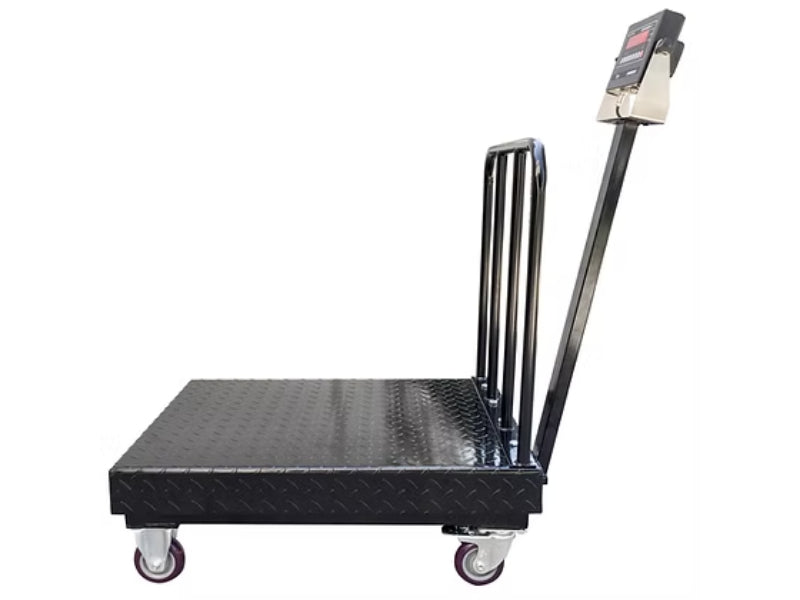

The Optima OP-915 Diamond Plate Bench Scale with Wheels and Backrail is a heavy-duty, mobile weighing solution designed for demanding industrial environments. With a rugged diamond plate platform, integrated wheels, and a sturdy backrail, this scale offers both durability and convenience for high-traffic workspaces like warehouses, shipping stations, and production lines.
Built with precision and portability in mind, the OP-915 ensures accurate measurements while simplifying transport between workstations. Ideal for weighing bulky or mobile items, this bench scale enhances productivity without sacrificing accuracy.
FEATURES
- Designed for speed and accuracy with an extremely heavy duty platform, built in back rails and wheels
- Diamond Plated
- Ideal for busy shipping docks, outdoor markets, manufacturers, food processing and other bulk sales
- High Resolution with overload protection

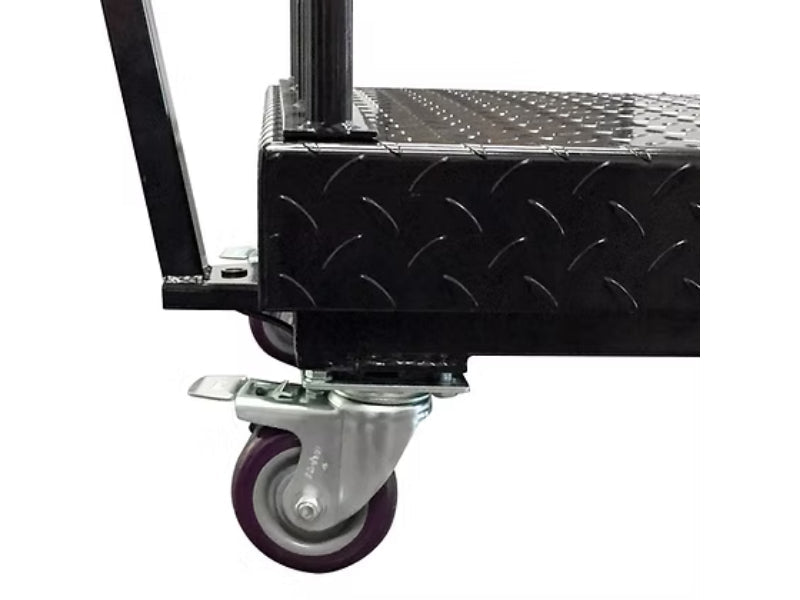

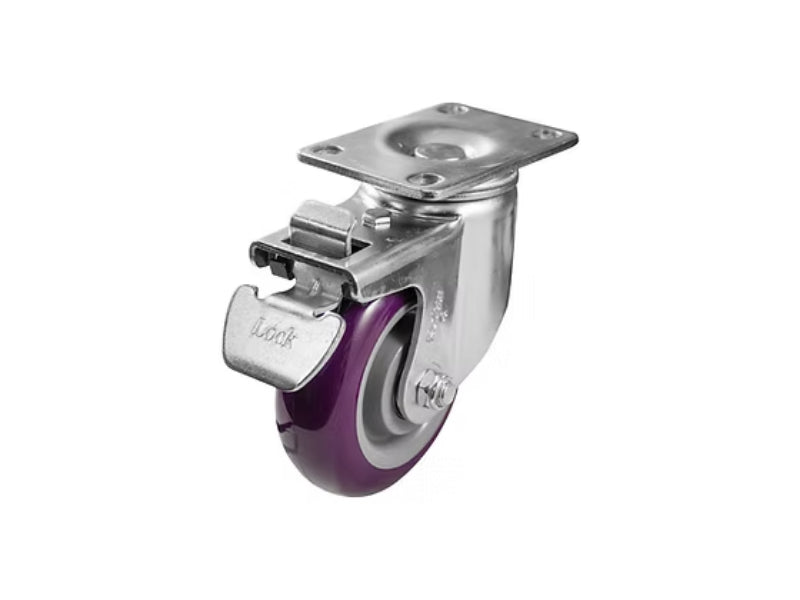

- Swivel wheel casters come with brakes in the back
- Standard Package Includes: Platform, Shroud, Indicator (Legal for Trade), Load Cells, Column, Wheels, Backrail, Hardware
- Painted mild steel construction
- Adjustable tilt display for convenient viewing

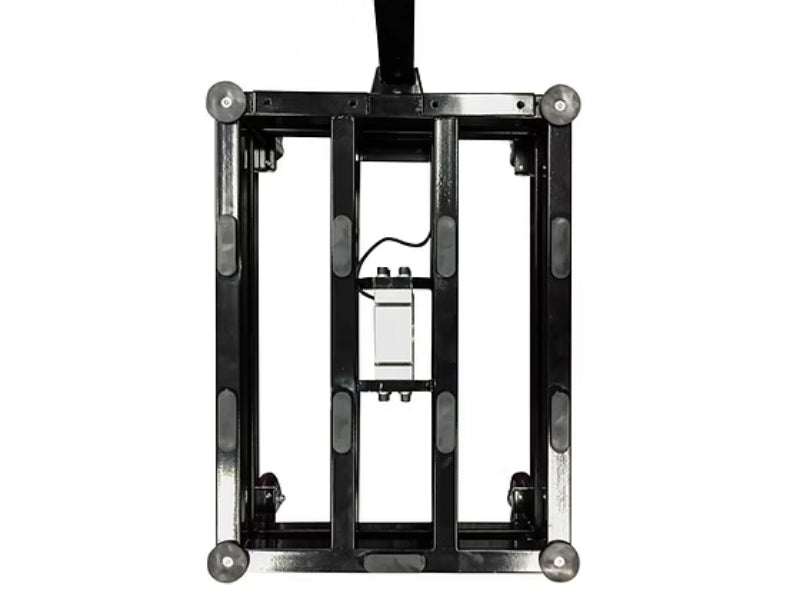

- Aluminum environmentally sealed single point load cell
- OP-900 NTEP indicator with 6 digit, 1” display with rechargeable battery
- Check-weighing feature for quick portioning
- Built-in RS-232 communication port
- Level bubble
- US Legal For Trade CC #: 11-016
- Canada Legal For Trade CC#: AM-5817
- Factory Calibrated
- Overload Protection
- 1 year warranty on parts

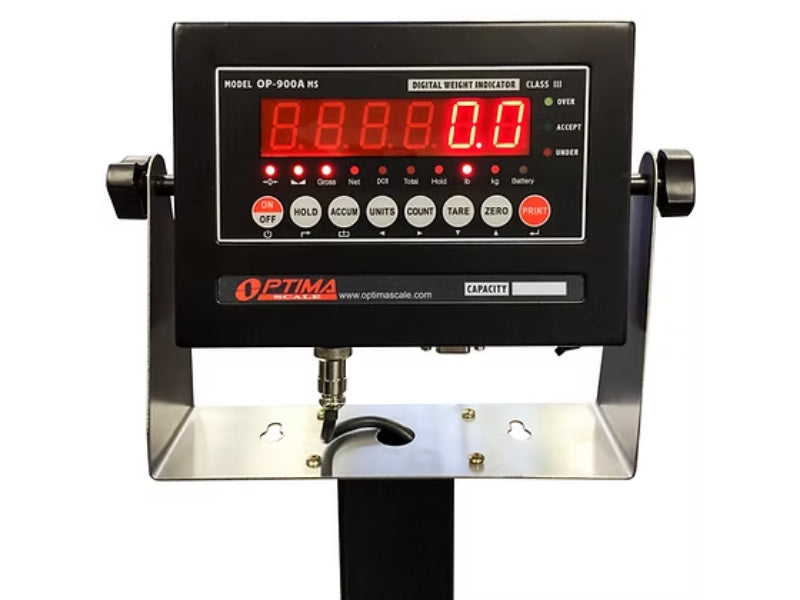

INDICATOR FEATURES
- OP-900 NTEP indicator with LED or LCD display
- 1" Tall backlit display
- Rechargeable battery (up to 100 hrs)
- Metal casing (Stainless steel or washdown upgradeable)
- AC adapter included
- Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
- Gross/Tare/Pre-Set Tare/Zero
- Multiple Hold functions
- Count weighing
- Accumulation weighing
- Overload / Underload alarm
- Splash proof keyboard and display
- Connects to a remote display and printer
- NTEP approved for 5,000 divisions
- Displays up to 50,000 graduations
- Full Duplex RS-232 Serial Port
OPTIONAL ACCESSORIES
- Printer
- Remote Display
- Software
SPECIFICATIONS
- Pan/Frame Material: Stainless Steel / Mild Steel
- Accuracy CLass (T-900): 5000 e
- Resolution: Display 30,000; ADC 2,000,000
- Zero Stability Error: TK0 < 0.1 µV//K
- Span Stability Error: TKspn < ±6 ppm//K
- Sensitivity (Internal): 0.3 µV/d
- Input Voltage: -30 ~ 30mV DC
- Excitation Circuit: 5 VDC, 4 wire connection (+Exec, -Exec, +Sig, -Sig); Maximum 6 x 350Ω load cells
- Power: AC100~250V; Rechargeable battery optional
- Temperature/Humidity: -10℃ ~ +40℃; ≤90%RH
- Storage Temperature: -40℃ ~ +70℃;
|
Model
|
Size and Capacity
|
|
OP-91BWD-1824-500
|
18”x24”, Cap: 500lb x 0.1lb
|
|
OP-915BWD-2424-500
|
24”x24”, Cap: 500lb x 0.1lb
|
SHIPPING & SUPPORT
We offer FREE SHIPPING to Lower 48 United States
This product ships directly from Optima Scales U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
