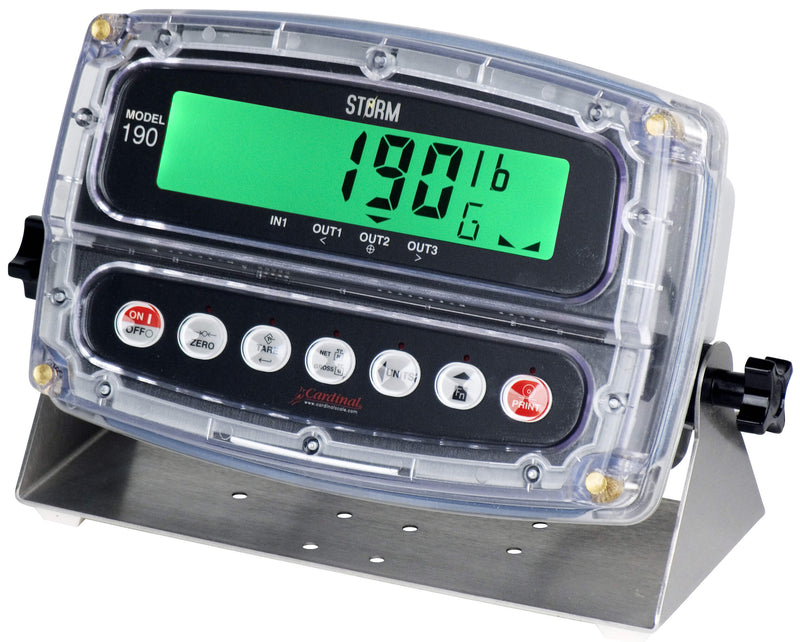

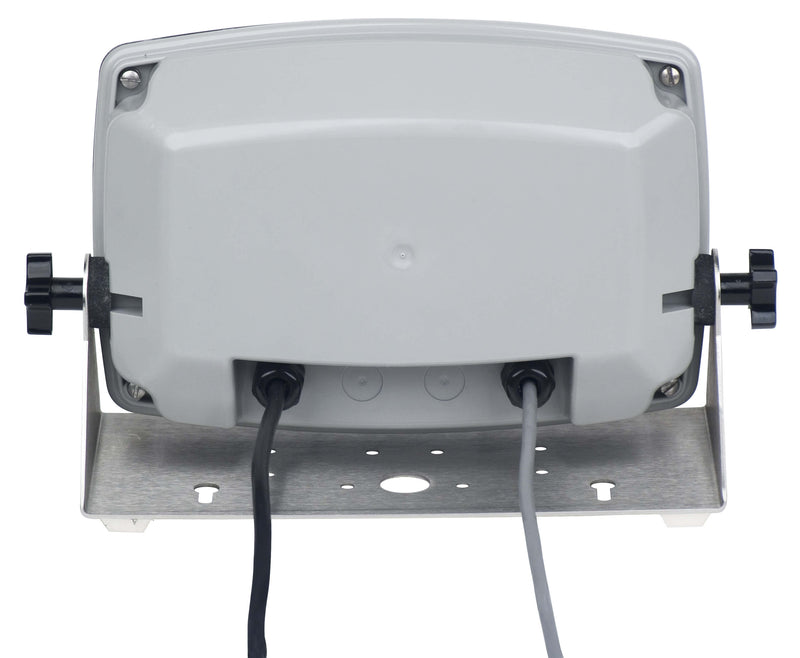

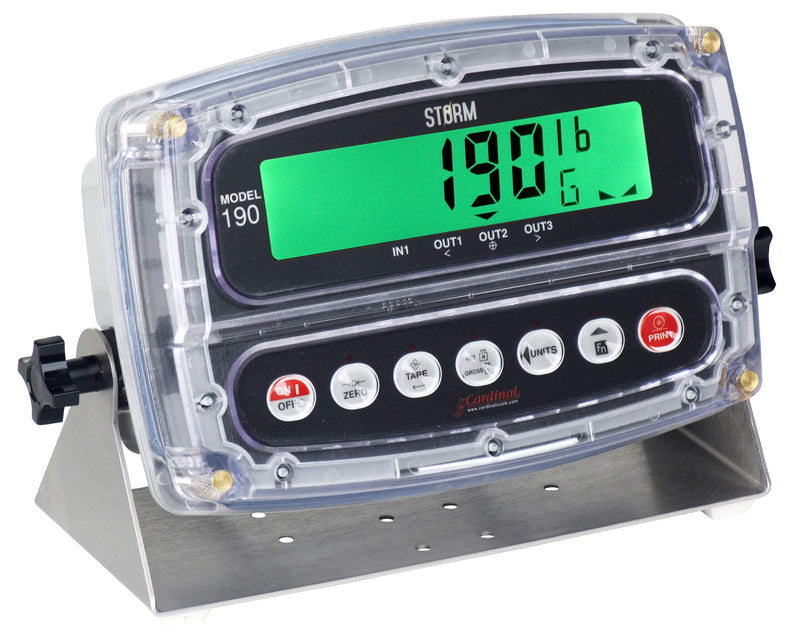

Cardinal 190 Storm IP69K-rated Digital Indicator

Cardinal 190 Storm IP69K-rated Digital Indicator

by Cardinal

Save 11%

$900.00

$900.00 - $900.00

$900.00

$800.00

$800.00 - $800.00

$800.00

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

Built for extreme-use applications in the weighing industry, the 190 STORM’s IP69K-rated polycarbonate enclosure withstands high-temperature (up to 176º F / 80º C), high-pressure wash downs (1450 PSI). The 190 STORM features capacitive touch keys, 1-inch-high clearly visible LCD digits, built-in RS232 communications port, and versatile power options: AC, DC, and rechargeable battery.

The 190 STORM’s bright, vivid display changes color automatically as the pre-assigned target weights are reached. The operator knows immediately when they’ve reached the acceptable weight range based on the amber, green, or red color changes for UNDER, ACCEPT, or OVER weights. NTEP, OIML, and Measurement Canada.

FEATURES

Capacitive Touch Screen
Ultra-Tough Enclosure
IP69K-rated
Colorzone Checkweighing
High pressure water jet cleaning (1450PSI) at high temperatures of up to 176º F / 80º C.
Thick Steel Deck Platform

SPECIFICATIONS

Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. / 190DC: 10.5 to 30 VDC 1.0A Max.
Enclosure Type: Thermoplastic IP69K wall or desk-mount
Enclosure Size: 9.4 inch W x 6.4 inch H x 3.7 inch D / 239 mm W x 163 mm H x 93 mm D
Operating Environment: Temperature: 14 to 104 ºF (-10 to +40 ºC)
Humidity: 90% non-condensing (maximum)
Display: Six digit, seven segment, 1.0 inch high Backlit LCD
Transducer Excitation: 5.18 VDC
Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 6 each, 350 OHM minimum resistance
Load Cell Cable Length: 1500 feet maximum.
30 feet maximum without sense lines
Consult factory for other requirements
Division Value: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 commercial
0 to 99, non-commercial
Sensitivity:
NON-COMMERCIAL
COMMERCIAL
0.15 uV/e
0.5uV/e (Class III/IIIL/IIIHD)
Scale Divisions:
NON-COMMERCIAL
COMMERCIAL
100 to 240,000
100 to 10,000 (Class III/IIIL/IIIHD)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds, Ounces, Kilograms, Grams
Keypad: Color Coded Capacitive Touch type, 7 keys
Standard I/O: (1) bi-directional RS232
Approvals: NTEP: 10-084 MEASUREMENT CANADA: AM-5804 OIML: R76/1992-DK3-11.05

Model	Description
MH-524-LPAN	Floor Scale, Electronic, Extra Heavy-Duty, 24" x 24", 500 lb x 0.2 lb Capacity, Heavy Steel

RESOURCES

190 Storm Brochure
