MH Floor Scales
MH Floor Scales

MH Floor Scales

by Cardinal
Save 14% Save 14%
$1,870.00
$1,870.00 - $1,870.00
$1,870.00
$1,599.00
$1,599.00 - $1,599.00
$1,599.00

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

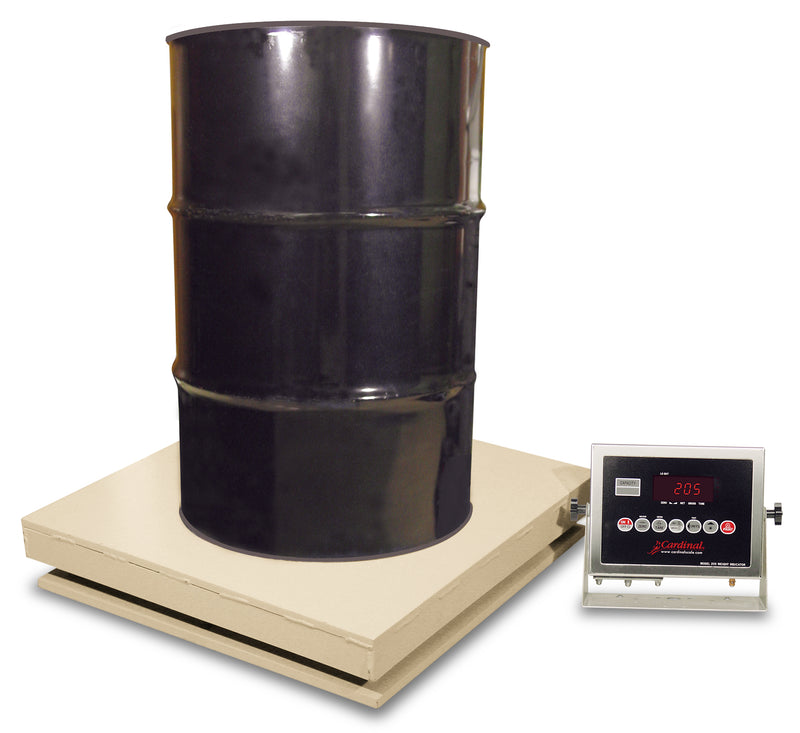

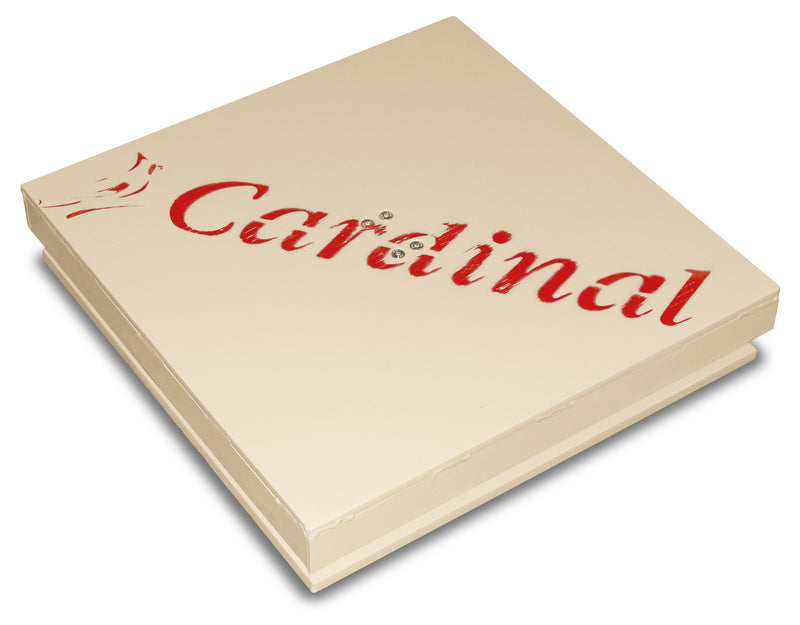

Cardinal Scale’s Mini Hugger heavy-duty floor scale is perfect for industrial weighing applications and provides accurate and reliable drum or barrel weighing. The model MH-524 features a single point load cell, 24 x 24-inch mild steel platform with tan baked-on powder paint, 1/2-inch-thick deck plate, and the scale is rugged enough for daily use in the busiest of warehouses. The heavy, solid base (209 lb) provides a solid support structure for loading barrels and heavy containers on top while weighing. Four adjustable-height feet and a 10-ft-long load cell cable paired with any of Cardinal Scale’s 200 series digital indicators creates a weighing system that accomplishes any industrial job accurately and reliably.



FEATURES

  • 24-in Square Platform
  • 500-lb Capacity
  • Adjustable Height Mounting Feet
  • Heavy-Duty Base for Stable Drum Loading
  • Single Point Sealed Load Cell
  • Thick Steel Deck Platform

SPECIFICATIONS

  • Capacity: 500 lb x 0.2 lb
  • Platform Size: 24 in x 24 in  (Height is adjustable from 5.125 in - 5.875 in)
  • Platform Construction: Mild steel (industrial tan baked powder paint)
  • Deck Plate Thickness: 0.5 in/ 13 mm
  • Mounting Feet: 4 adjustable, 2 in diameter
  • Operating Temperature: -10 to +40 °C / +14 to +104 °F
  • Net Weight: 209 lb
  • Shipping Weight: 225 lb
  • Load Cell: 1 Cardinal CHB series, 10' load cell cable
  • Overload Stops: 1 at each corner (adjustable) and 1 at load cell (adjustable)
  • Output at Capacity: 1.1 mV/V

Model

Description

MH-524-LPAN

Floor Scale, Electronic, Extra Heavy-Duty, 24" x 24", 500 lb x 0.2 lb Capacity, Heavy Steel

RESOURCES



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Need help choosing the right configuration?

Tell us what you are weighing, the required capacity and accuracy, and how the scale will be installed. We can help narrow the options before you order.

Call (941) 257-3293 Email product support
