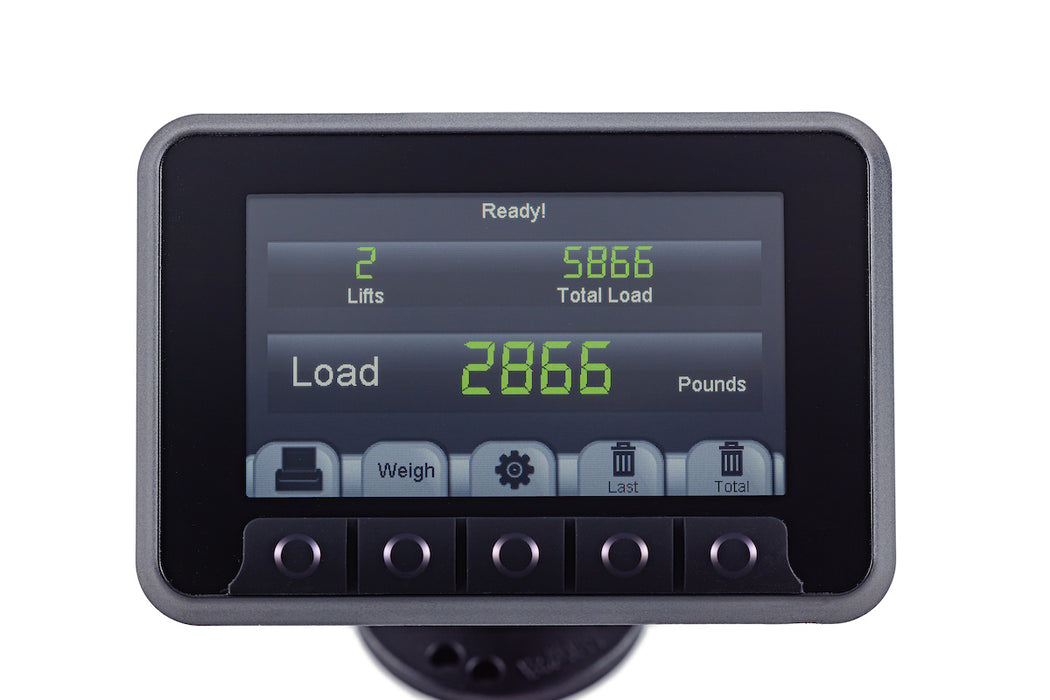

LS-200 Wheel Loader Scale, by Walz Scale.

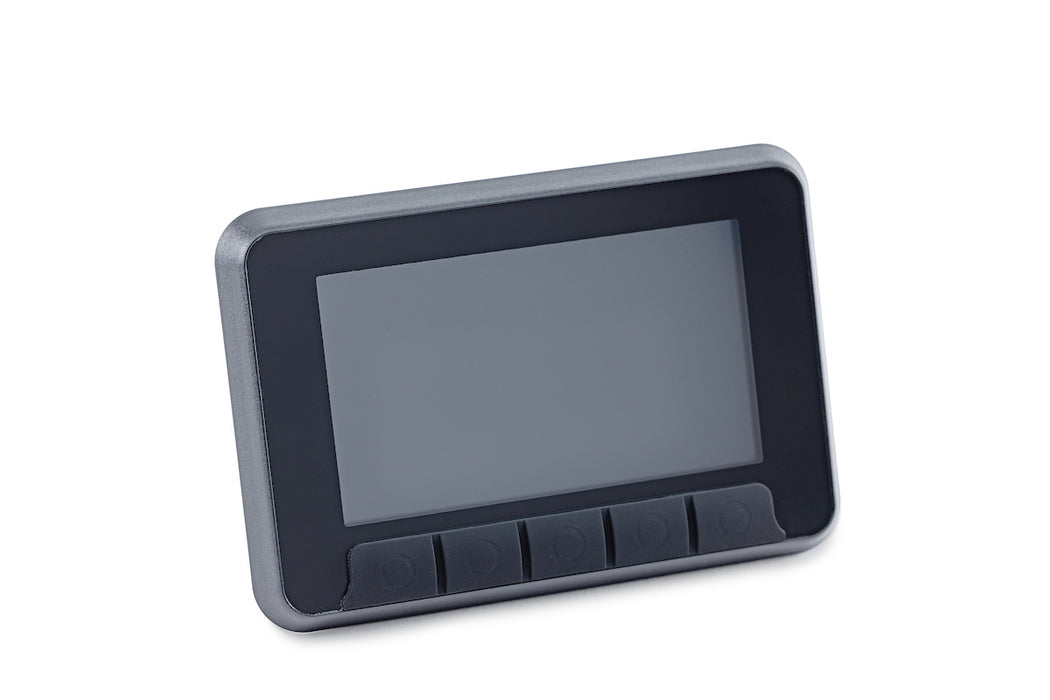

LS-200 Wheel Loader Scale, Angle View, by Walz Scale.

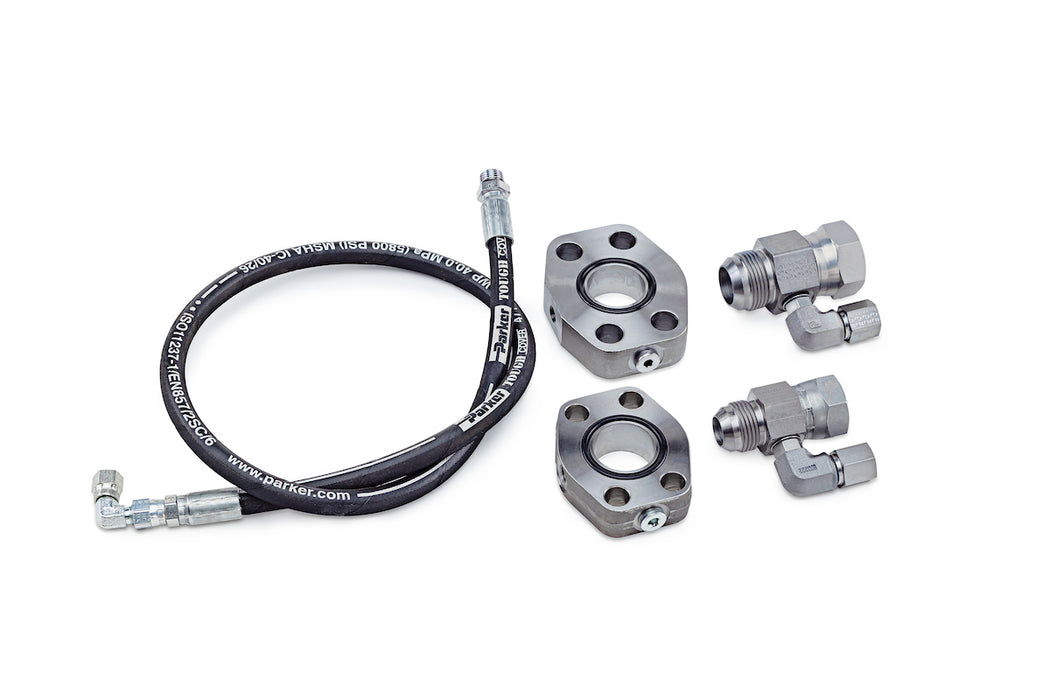

Wheel Loader Scale Hydraulic Fittings Kit, by Walz Scale.

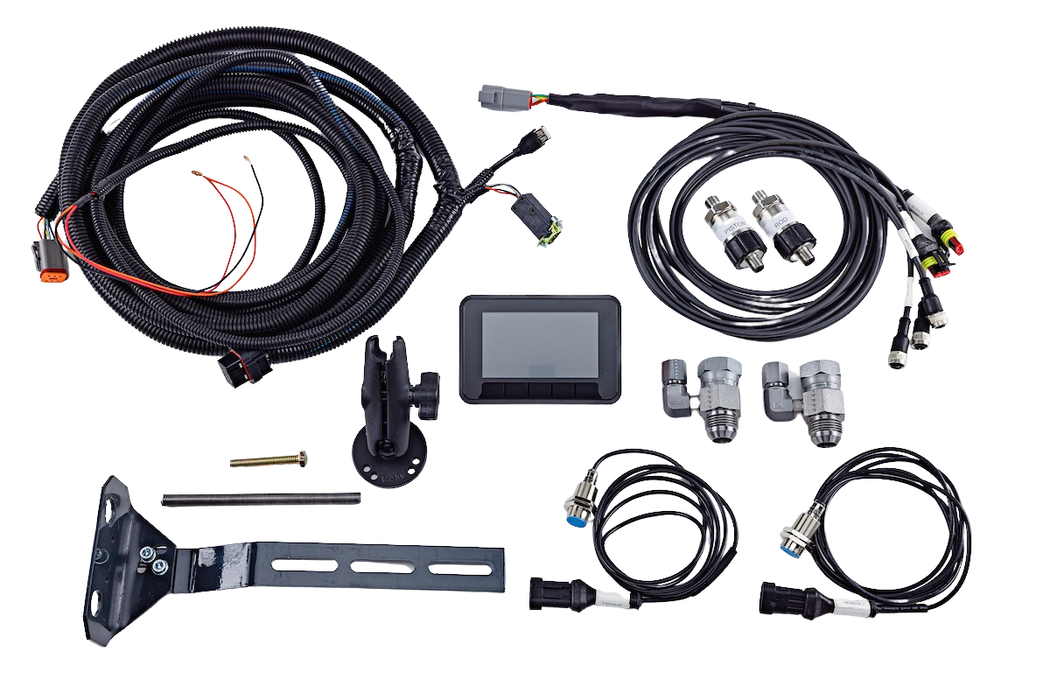

Example kit for a Walz LS-200 Wheel Loader Scale.
LS-200 Wheel Loader Scale, by Walz Scale.
LS-200 Wheel Loader Scale, Angle View, by Walz Scale.
Wheel Loader Scale Hydraulic Fittings Kit, by Walz Scale.
Example kit for a Walz LS-200 Wheel Loader Scale.

Walz LS-200 Series Wheel Loader Scale

by Walz
$3,300.00 - $3,300.00
$3,300.00
$3,300.00 - $3,300.00
$3,300.00

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Walz Scale and Scanner Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in The USA

✔ Ships From East Peoria, IL

The Walz LS-200 Series Wheel Loader Scale is built for commercial and industrial weighing workflows.

Key Features

  • Onboard wheel loader scale for production loading workflows
  • Designed for weigh-in-motion operation (dynamic weighing)
  • Useful for improving loading consistency and reducing rework
  • Loader scale works with all wheel loaders
  • Simple operation on all loader scales
  • Basic memory
  • Graphical, simple operator interface
  • Get precise results in even the toughest conditions
  • Robust, durable loader scale design
  • Low-maintenance requirements
  • Wheel loader scales are easy to deploy in the field
  • In-motion weighing technology
  • Wheel loaders scales are field serviceable
  • Built-in printer capabilities

Ideal Use Cases

  • Aggregate yards and sand & gravel operations
  • Bulk commodity loading
  • Agriculture and materials handling

Specifications

Brand Walz
Model LS-200 Series
Product Type Wheel loader scale
Weighing Type Weigh-in-motion (dynamic)
Accuracy Typical accuracy of 99%
Manufactured In USA
Warranty 1 year
Legal for Trade (NTEP) No

What's Included

  • Weight terminal, pressure sensors, proximity switch & machine specific fittings

Other Information

  • Made in the USA
  • Typical accuracy of 99%
  • Optional printer connection
  • 100,000 Lb.+ lifting capacity
  • Weigh in either pounds or kilograms (lb or kg)
  • Configurable graduations: 5, 10, 20 or 50 lb/kg increments
  • Basic load data tracking
  • Easy-to-use operation, with customizable color themes.
  • Water-resistant, corrosion proof and shock resistant housing, IP65
  • Industry best display for easy operation and a safe, clear view of the load data
  • 5000 PSI sensor (IP67)
  • Weight totalization feature
  • Display modes for current load or total truck weight
  • Full range push button zero
  • Simple installation
  • Powered by the machine battery 7-24 VDC
  • For machines with 36 VDC or 48 VDC power supply, we recommend a step down converter
  • Calibration test weights should be greater or equal to 10% of the scale/machine capacity
  • Walz Manufacturer warranty varies by model; see the product documentation or contact us for exact coverage.
  • Not Legal for Trade

Shipping & Installation Notes

  • Confirm loader make/model and hydraulic configuration prior to ordering

FAQ

  • What warranty comes with this? 1 year.
  • Where is it manufactured? USA.
  • Does it weigh while moving? This series is intended for dynamic (weigh-in-motion) loader workflows.
