Floor Scale Ramps

by Optima Scale

$310.00 - $2,129.00

$310.00

$310.00 - $2,129.00

$310.00

Choose a Model

Quantity

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

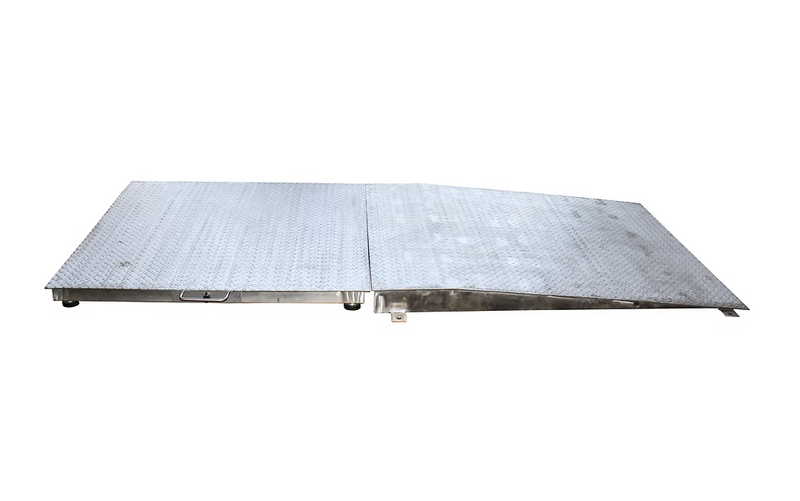

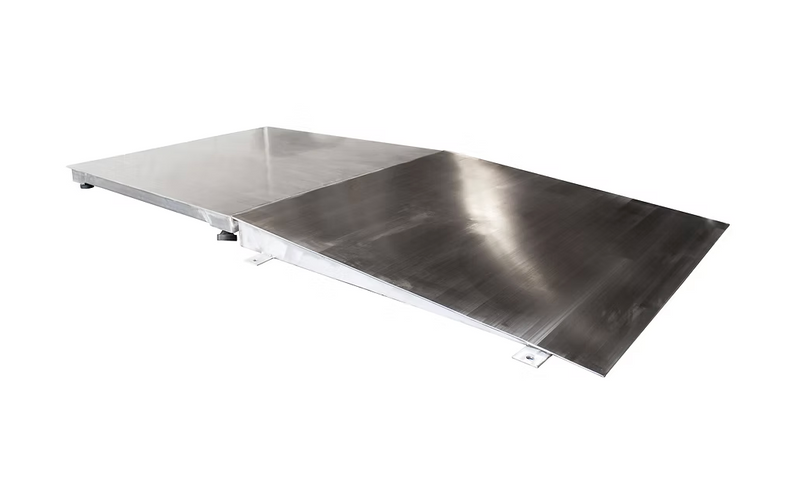

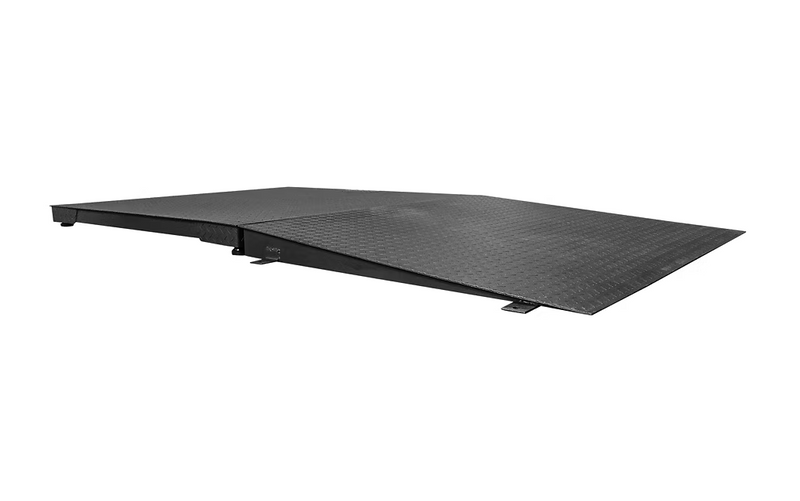

These Floor Scale Ramps provide an effortless solution, designed for smooth transitions and easy entry. Available in mild steel, stainless steel, and stainless steel diamond plate, they are built for strength, stability, and long-lasting use.

Each ramp installs easily with 4.5” anchor bolts, making setup quick and reliable. Designed for TUF-MADE and TUF-MADE MAX series floor scales, they ensure seamless integration into your weighing system. Imagine rolling carts, pallets, or equipment onto your scale with zero struggle—our ramps make it possible while enhancing workplace safety and efficiency.

FEATURES

Mild Steel, Stainless Steel and Stainless Steel Diamond Plate construction options available
Allows for easy entrance or rolling onto scale
Easy to install with 4.5” anchor bolts
For use with TUF-MADE and TUF-MADE MAX series floor scales

SPECIFICATIONS

MODEL NUMBER	MATERIAL	RAMP SIZE	SCALE SIZE TO MATCH
12025	Mild Steel, Tread Plate	2’ W x 2’ L	For 2’x2’ scales
12026	Mild Steel, Tread Plate	3’ W x 3’ L	For 3’x3’ scales
12027	Mild Steel, Tread Plate	4’ W x 3’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12028	Mild Steel, Tread Plate	4’ W x 4’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12029	Mild Steel, Tread Plate	4’ W x 5’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12030	Mild Steel, Tread Plate	5’ W x 4’ L	For 5’x5’, 5’x7’, 5’x8’ scales
12031	Mild Steel, Tread Plate	5’ W x 5’ L	For 5’x5’, 5’x7’, 5’x8’ scales
12032	Stainless Steel – Smooth	3’ W x 3’ L	For 3’x3’ scales
12033	Stainless Steel – Smooth	4’ W x 3’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12034	Stainless Steel – Smooth	4’ W x 4’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12035	Stainless Steel – Smooth	5’ W x 4’ L	For 5’x5’, 5’x7’, 5’x8’ scales
12036	Stainless Steel – Tread Plate	4’ W x 4’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12037	Stainless Steel – Tread Plate	4’ W x 5’ L	For 4’x4’, 4’x5’, 4’x6’, 4’x8’ scales
12038	Stainless Steel – Tread Plate	5’ W x 4’ L	For 5’x5’, 5’x7’, 5’x8’ scales
12039	Stainless Steel – Tread Plate	5’ W x 5’ L	For 5’x5’, 5’x7’, 5’x8’ scales

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Compare available configurations

Compare configurations and prices below. Select a configuration to view that option above before adding it to your cart.

Configuration	Price	Select configuration
Mild Steel - Tread Plate \| 2’ W x 2’ L \| For 2’x2’ scales	$310.00	Select
Mild Steel - Tread Plate \| 3’ W x 3’ L \| For 3’x3’ scales	$349.00	Select
Mild Steel - Tread Plate \| 4’ W x 3’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$399.00	Select
Mild Steel - Tread Plate \| 4’ W x 4’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$439.00	Select
Mild Steel - Tread Plate \| 4’ W x 5’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$509.00	Select
Mild Steel - Tread Plate \| 5’ W x 4’ L \| For 5’x5’/5’x7’/5’x8’ scales	$509.00	Select
Mild Steel - Tread Plate \| 5’ W x 5’ L \| For 5’x5’/5’x7’/5’x8’ scales	$589.00	Select
Stainless Steel - Smooth \| 3’ W x 3’ L \| For 3’x3’ scales	$979.00	Select
Stainless Steel - Smooth \| 4’ W x 3’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$1,109.00	Select
Stainless Steel - Smooth \| 4’ W x 4’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$1,219.00	Select
Stainless Steel - Smooth \| 5’ W x 4’ L \| For 5’x5’/5’x7’/5’x8’ scales	$1,399.00	Select
Stainless Steel - Tread Plate \| 4’ W x 4’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$1,439.00	Select
Stainless Steel - Tread Plate \| 4’ W x 5’ L \| For 4’x4’/4’x5’/4'x6’/4’x8’ scales	$1,899.00	Select
Stainless Steel - Tread Plate \| 5’ W x 4’ L \| For 5’x5’/5’x7’/5’x8’ scales	$1,899.00	Select
Stainless Steel - Tread Plate \| 5’ W x 5’ L \| For 5’x5’/5’x7’/5’x8’ scales	$2,129.00	Select

Need help choosing the right configuration?

Tell us what you are weighing, the required capacity and accuracy, and how the scale will be installed. We can help narrow the options before you order.

Call (941) 257-3293 Email product support
