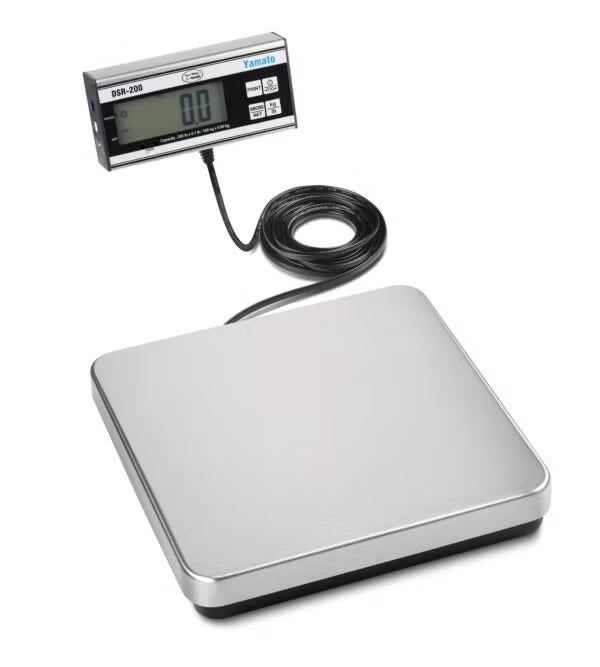

The DSR Series is a durable and versatile bench and receiving scale designed for shipping rooms, warehouses, production environments, and food service operations that require reliable weight readings and user friendly functions.

It offers hands free tare, large LCD display visibility, and removable stainless steel platforms. The DSR is built with a strain gauge load cell and supports multiple weighing units, making it suitable for a wide range of industrial and commercial applications.

Key Features

• Hands free tare
• Large, easy to read LCD display
• Printing option available
• 220 lb and 400 lb capacity options
• Optional foot tare switch
• Removable stainless steel platform
• 9 foot indicator cord
• Suitable for warehouse, receiving, packing, and production tasks

Model Variants

DSR 200

Capacity:
• 0 to 200 lb x 0.2 lb
• 0 to 100 kg x 0.1 kg

DSR 400

Capacity:
• 0 to 220 lb x 0.5 lb and 220 to 400 lb x 1 lb
• 0 to 100 kg x 0.2 kg and 100 to 180 kg x 0.5 kg

Technical Specifications

Weighing System:
Strain gauge load cell

Platform Size:
12 in x 12.2 in (304 mm x 310 mm), stainless steel, removable

Display:
5 digit, 7 segment LCD plus annunciators

Character Size:
0.4 in x 1.0 in (11 mm x 23 mm)

Power:
AA size batteries (qty. 4) or AC adapter included

Housing Material:
ABS housing with stainless steel platform

Operating Temperatures:
32 F to 104 F (0 C to 40 C)

Functions:
Basic weighing, gross or net weighing, tare, printing
