Cardinal SLS Single Animal Livestock Scales

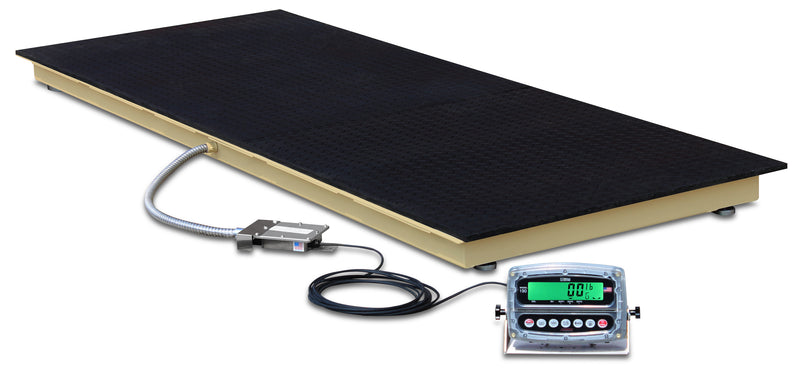

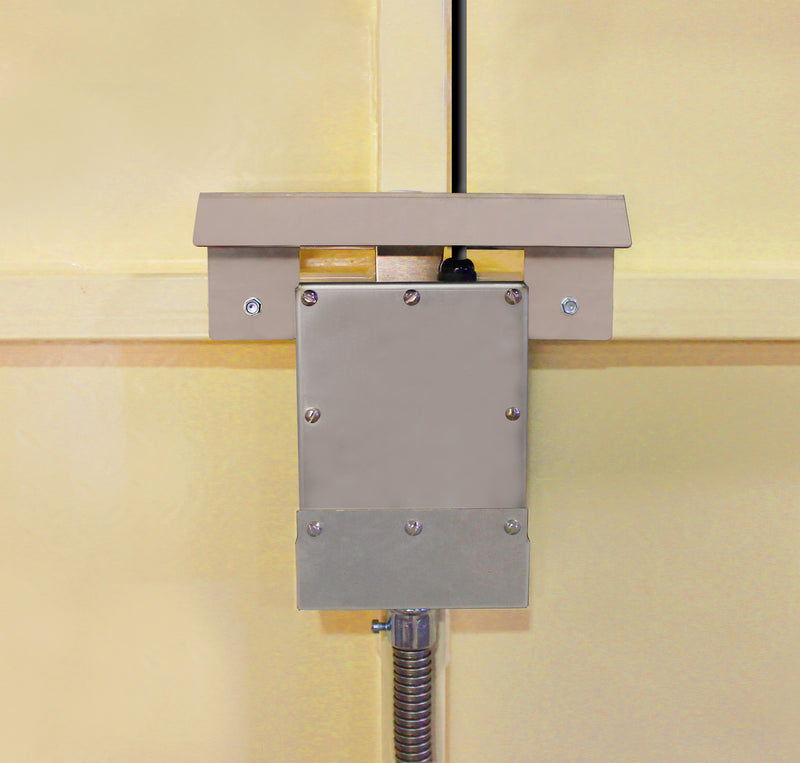

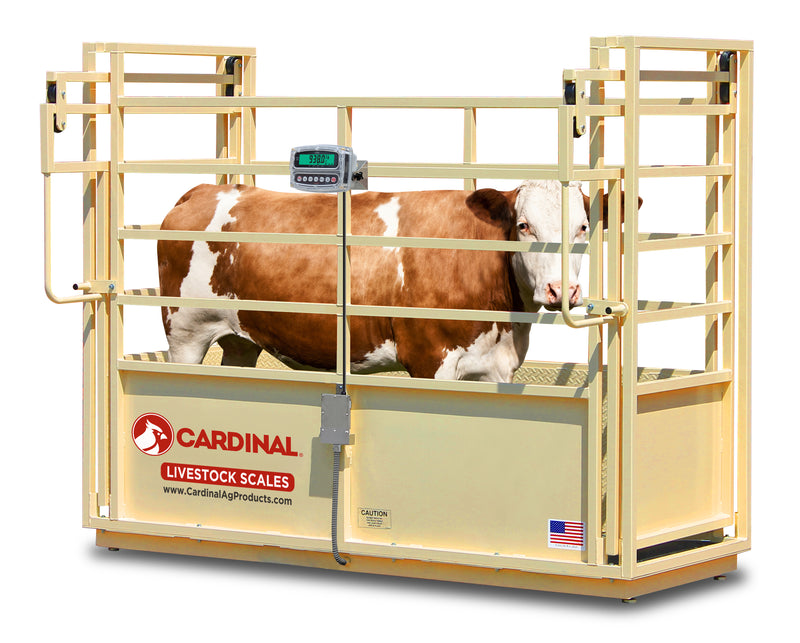

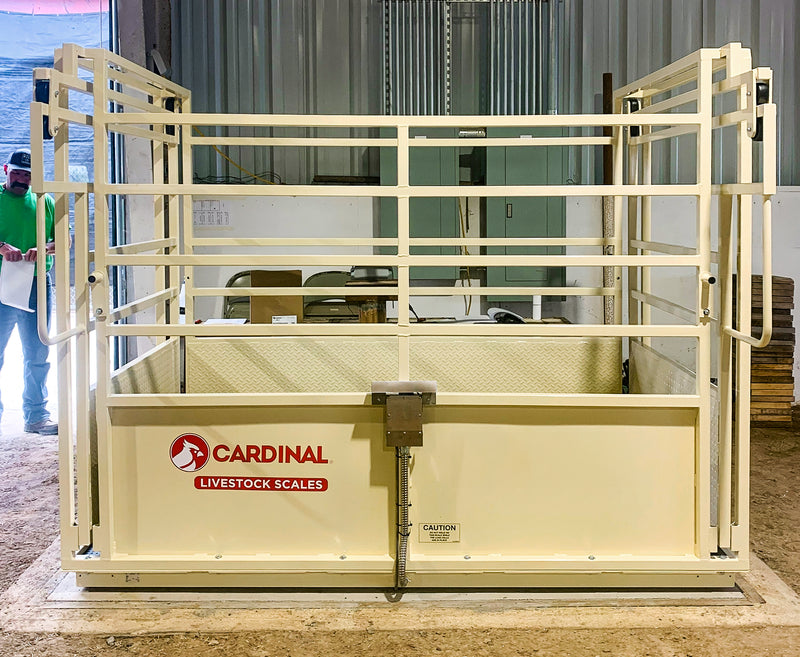

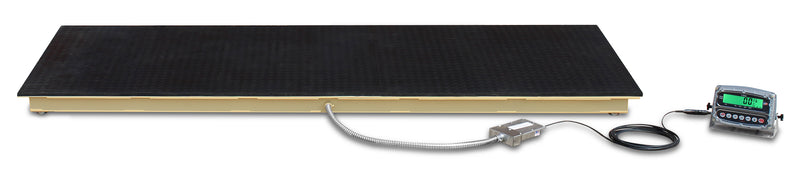

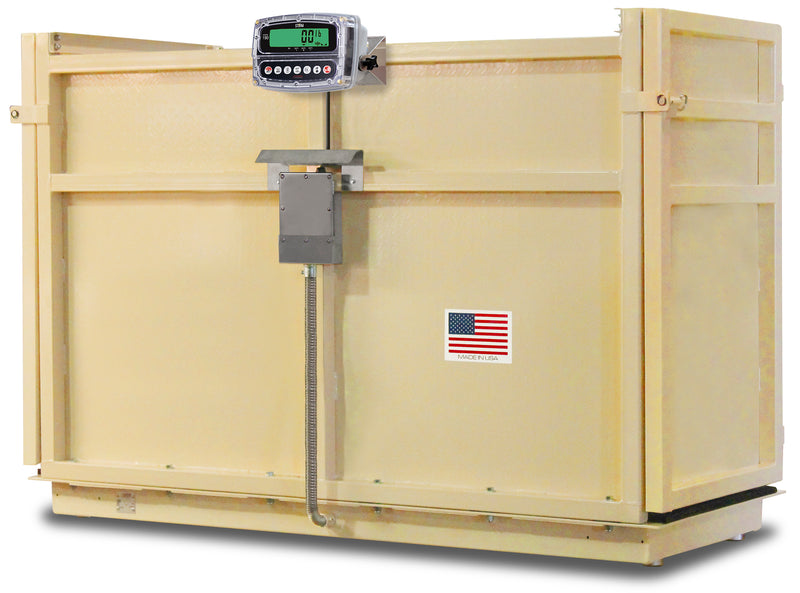

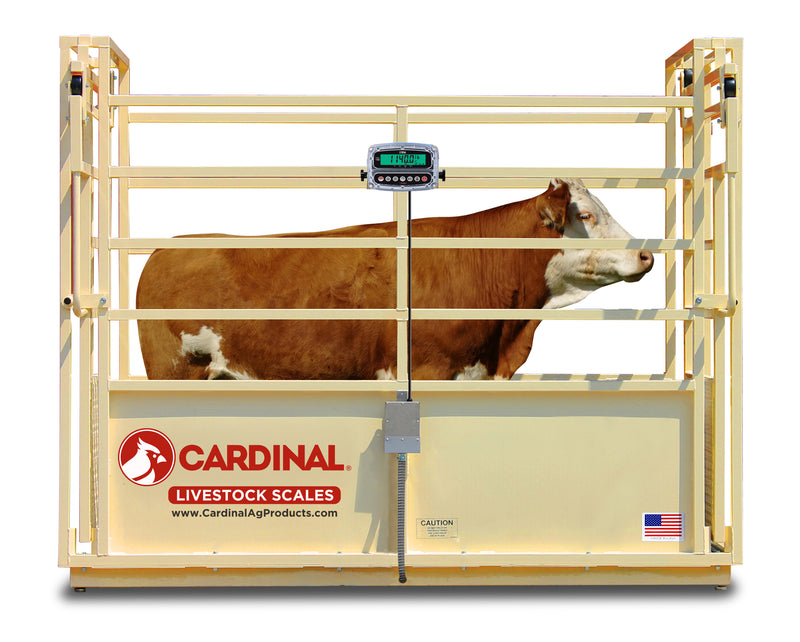

Cardinal Scale’s SLS series steel deck single animal livestock scales are available with or without a livestock pen and dual slide-out gates. They feature an extremely-accurate 2,500 lb x 0.5 lb or 5,000 lb x 1 lb capacity, varying widths and lengths, four model TB 2,500 lb stainless steel load cells with adjustable support feet, side-access stainless steel junction box, rubber mat interior flooring for sure footing and noise reduction, NTEP certification, and quality construction throughout the scale for weighing cattle, swine, horses, sheep, goats, and more. Indicator sold separately. Custom sizes available. Can be ordered with dual range option with 0.5 lb divisions up to 2,500 lb and 1 lb divisions from 2,501 thru 5,000 lb, please consult factory.

FEATURES

Accurate to Within 1/2 LB
Agricultural Products

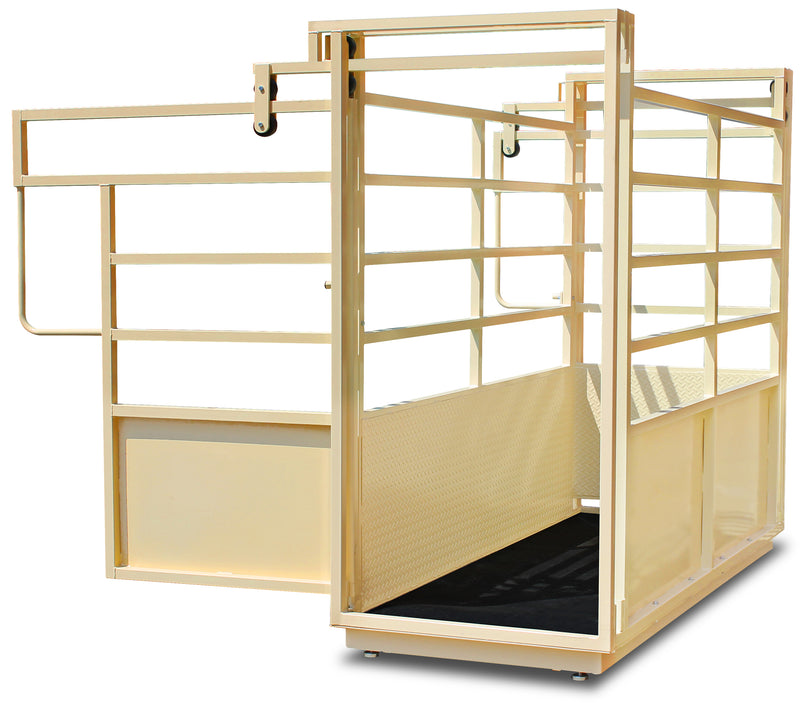

Available With or Without Livestock Pen and Dual Slide-Out Gates
Heavy-Duty 5/8-Inch-Thick Rubber Mat Included
Mild Steel Construction
NTEP Legal for Trade
Stainless Steel Load Cells
Up to 5000 LB Capacity
Varying Widths and Lengths Available

SPECIFICATIONS

Load Cells: Four Cardinal Scale model TB 2,500 lb stainless steel load cells
NTEP: Certificate of Conformance No. 13-083
Capacities/Divisions: Available in either 2,500 x 0.5 lb or 5,000 lb x 1 lb (dual range option also available)
Platform Sizes: 30 x 96 in, 36 x 96 in, 36 x 120 in, 48 x 96 in, and 48 x 120 in
Platform Material: Steel with rubberized non-skid mat
Mat Thickness: 5/8-inch-thick rubber mat component flooring (included)
Steel Tubing: Mild steel 1.5-inch-square tubing
Paint: Anti-corrosion, baked-on polyester powder paint
Options: Box panel kits, weight indicators, remote displays, ticket printers, Wi-Fi connectivity, mobile apps

Model	Description
2.53096-SLS-D	Livestock Scale, Single Animal, 30" X 96", 2500lb Capacity, Steel Deck, No Panels
2.53696-SLS-D	Livestock Scale, Single Animal, 36" X 96", 2500lb Capacity, Steel Deck, NO PANELS
2.536120-SLS-D	Livestock Scale, Single Animal, 36" X 120", 2500lb Capacity, Steel Deck, NO PANELS
2.54896-SLS-D	Livestock Scale, Single Animal, 48" X 96", 2500lb Capacity, Steel Deck, NoPanels
2.548120-SLS-D	Livestock Scale, Single Animal, 48" X 120", 2500lb Capacity, Steel Deck, No Panels
53096-SLS-D	Livestock Scale, Single Animal, 30" X 96", 5000lb Capacity, Steel Deck, No Panels
53696-SLS-D	Livestock Scale, Single Animal, 36" X 96", 5000lb Capacity, Steel Deck, No Panels
536120-SLS-D	Livestock Scale, Single Animal, 36" X 120", 5000lb Capacity, Steel Deck, No Panels
54896-SLS-D	Livestock Scale, Single Animal, 48" X 96", 5000lb Capacity, Steel Deck, No Panels
548120-SLS-D	Livestock Scale, Single Animal, 48" X 120", 5000lb Capacity, Steel Deck, No Panels
2.53096-SLS	Livestock Scale, Single Animal, 30" X 96", 2500lb Capacity, Steel Deck
2.53696-SLS	Livestock Scale, Single Animal, 36" X 96", 2500lb Capacity, Steel Deck
2.536120-SLS	Livestock Scale, Single Animal, 36" X 120", 2500lb Capacity, Steel Deck
2.54896-SLS	Livestock Scale, Single Animal, 48" X 96", 2500lb Capacity, Steel Deck
2.548120-SLS	Livestock Scale, Single Animal, 48" X 120", 2500lb Capacity, Steel Deck
53096-SLS	Livestock Scale, Single Animal, 30" X 96", 5000lb Capacity, Steel Deck
53696-SLS	Livestock Scale, Single Animal, 36" X 96", 5000lb Capacity, Steel Deck
536120-SLS	Livestock Scale, Single Animal, 36" X 120", 5000lb Capacity, Steel Deck
54896-SLS	Livestock Scale, Single Animal, 48" X 96", 5000lb Capacity, Steel Deck
548120-SLS	Livestock Scale, Single Animal, 48" X 120", 5000lb Capacity, Steel Deck

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Configuration	Price	Select configuration
2.53096-SLS-D - 30" x 96" + 2500 lb Capacity + Steel Deck + No Panels	$3,890.00	Select
2.53696-SLS-D - 36" x 96" + 2500 lb Capacity + Steel Deck + No Panels	$4,070.00	Select
2.536120-SLS-D - 36" x 120" + 2500 lb Capacity + Steel Deck + No Panels	$5,180.00	Select
2.54896-SLS-D - 48" x 96" + 2500 lb Capacity + Steel Deck + No Panels	$4,750.00	Select
2.548120-SLS-D - 48" x 120" + 2500 lb Capacity + Steel Deck + No Panels	$5,620.00	Select
53096-SLS-D - 30" x 96" + 5000 lb Capacity + Steel Deck + No Panels	$3,900.00	Select
53696-SLS-D - 36" x 96" + 5000 lb Capacity + Steel Deck + No Panels	$4,070.00	Select
536120-SLS-D - 36" x 120" + 5000 lb Capacity + Steel Deck + No Panels	$5,180.00	Select
54896-SLS-D - 48" x 96" + 5000 lb Capacity + Steel Deck + No Panels	$4,750.00	Select
548120-SLS-D - 48" x 120" + 5000 lb Capacity + Steel Deck + No Panels	$5,660.00	Select
2.53096-SLS - 30" x 96" + 2500 lb Capacity + Steel Deck	$6,900.00	Select
2.53696-SLS - 36" x 96" + 2500 lb Capacity + Steel Deck	$7,000.00	Select
2.536120-SLS - 36" x 120" + 2500 lb Capacity + Steel Deck	$8,040.00	Select
2.54896-SLS - 48" x 96" + 2500 lb Capacity + Steel Deck	$7,240.00	Select
2.548120-SLS - 48" x 120" + 2500 lb Capacity + Steel Deck	$8,490.00	Select
53096-SLS - 30" x 96" + 5000 lb Capacity + Steel Deck	$6,900.00	Select
53696-SLS - 36" x 96" + 5000 lb Capacity + Steel Deck	$7,020.00	Select
536120-SLS - 36" x 120" + 5000 lb Capacity + Steel Deck	$8,040.00	Select
54896-SLS - 48" x 96" + 5000 lb Capacity + Steel Deck	$7,240.00	Select
548120-SLS - 48" x 120" + 5000 lb Capacity + Steel Deck	$8,490.00	Select
