Name: Detecto EB-LPAN Series Stainless Steel Bench Scale
Brand: Cardinal
SKU: EB-15-LPAN
Price: 830.0 USD
Availability: InStock

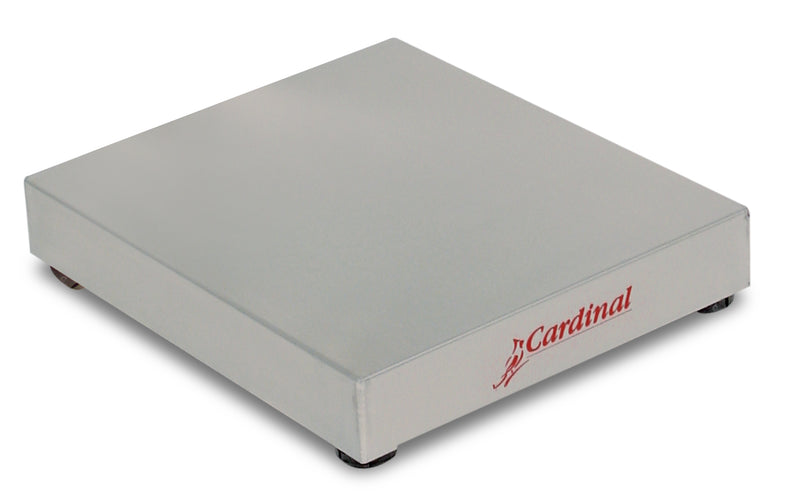

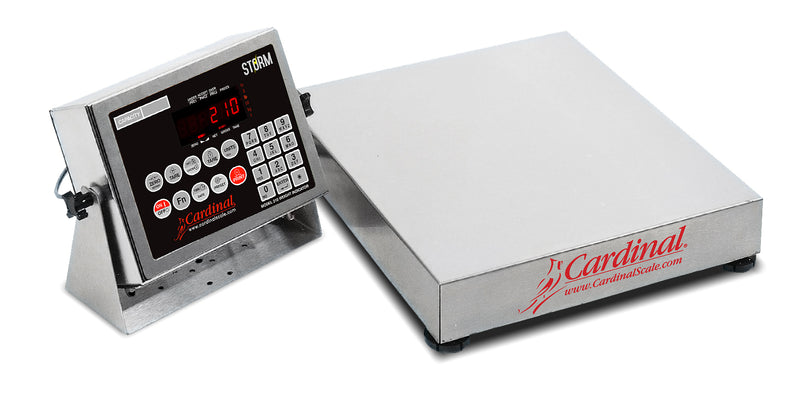

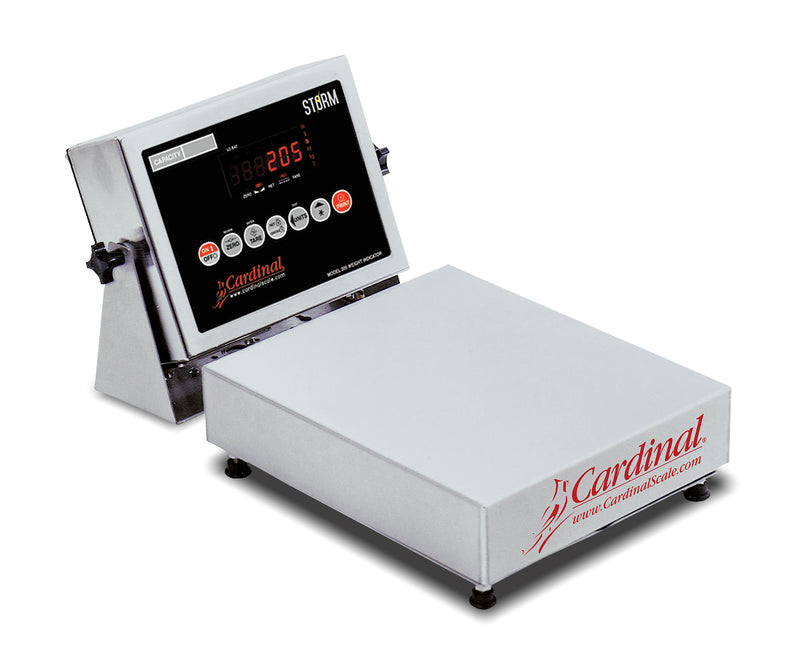

The EB-LPAN series have all of the features and options of the EB series but are built for applications where columns aren’t necessary or practical. A stainless steel platform base with dimensions of either 12 x 10, 16 x 14, and 24 x 20-inch depending on your use. These scales can easily be equipped with any of our 185, 190, 205, or 210 indicators and are designed for use in the same environments as the standard EB series, such as food processing and packaging, pharmaceuticals, recycling or the chemical industry. NTEP legal-for-trade certification. Available in 15, 30, 60, 150 and 300 lb capacities.

FEATURES

3 Platform Sizes and 5 Capacities Available
General Purpose Weighing Use
Multiple Connectivity Option and Label Print Formats
Stainless Steel Construction
Durable Sturdy Base for Solid Support
Lift-Off Stainless Steel Platform
USB-B Standard and USB-A Optional
AC Power
Stainless Steel Load Cell
Ideal for Processing, Warehousing, Recycling, Distribution Centers, and General Purpose Weighing
Proven Industrial Performance and User-Friendly Keypad Convenience

SPECIFICATIONS

EB-15-LPAN:
Overall Dimensions: 10 in W x 12 in D / 25 cm W x 30 cm D
Capacity: 15 lb x 0.005 lb / 6 kg x 0.002 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 23 lb / 10.4 kg

EB-30-LPAN:
Overall Dimensions: 10 in W x 12 in D / 25 cm W x 30 cm D
Capacity: 30 lb x 0.01 lb / 15 kg x 0.005 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 23 lb / 10.4 kg

EB-60-LPAN:
Overall Dimensions: 14 in W x 16 in D / 36 cm W x 41 cm D
Capacity: 60 lb x 0.02 lb / 30 kg x 0.01 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 38 lb / 17.2 kg

EB-150-LPAN:
Overall Dimensions: 14 in W x 16 in D / 36 cm W x 41 cm D
Capacity: 150 lb x 0.05 lb / 60 kg x 0.02 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 38 lb / 17.2 kg

EB-300-LPAN:
Overall Dimensions: 24 in W x 20 in D / 61 cm W x 51 cm D
Capacity: 300 lb x 0.1 lb / 150 kg x 0.05 kg
Platform Size: 24 in W x 20 in D / 61 cm W x 51 cm D
Shipping Weight: 72 lb / 32.7 kg

Construction: Stainless steel
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. Power cord included.
Display: Six-digit, seven-segment, 0.6-in (15-mm) high LED
Compensated Temperature Range: 14 to 104 ºF (-10 to 40 ºC)
Operating Temperature Range: -10 to 122 ºF (-23 to 50 ºC)
Humidity: 90% non-condensing (maximum)
Tare Capacity: Scale capacity
Sample Rate: 1 - 50 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Standard I/O:
EB-205 and EB-210: 4 ea serial I/O ports: 1 ea 20mA output-only port (uses one of the four RS-232 ports) 1 ea bi-directional 20mA port (uses one of the four RS-232 ports) 1 ea USB port (uses one of the four RS-232 ports)
EB-210: 8 ea remote isolated inputs and 8 ea remote isolated outputs
Certification: NTEP 03-031, Measurement Canada AM-5526, OIML 0199.387

Model	Description
EB-15-LPAN	Bench Scale, Electronic, 12" x 10", 15 lb Capacity, Stainless Steel
EB-30-LPAN	Bench Scale, Electronic, 12" x 10", 30 lb Capacity, Stainless Steel
EB-60-LPAN	Bench Scale, Electronic, 16" x 14", 60 lb Capacity, Stainless Steel
EB-150-LPAN	Bench Scale, Electronic, 16" x 14", 150 lb Capacity, Stainless Steel
EB-300-LPAN	Bench Scale, Electronic, 24" x 20", 300 lb Capacity, Stainless Steel

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
