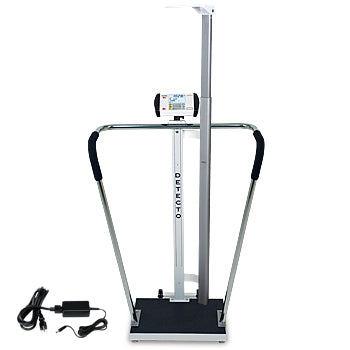

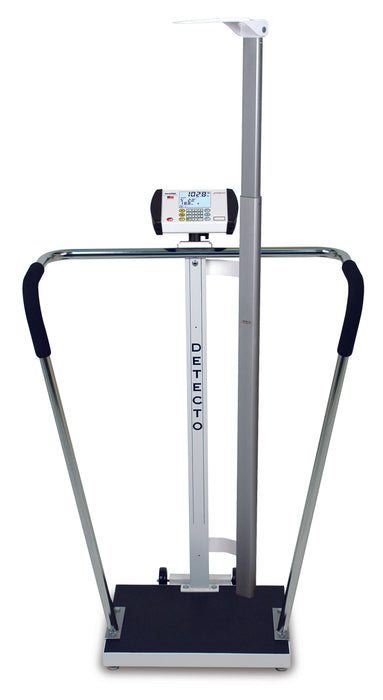

Detecto 6854DHR Digital Bariatric Scale

Detecto’s 6854DHR is engineered for weighing obese and unsteady patients and features a low-profile platform and stainless steel handrails with padded grips for patient assurance. Utilizes the Detecto 1LOOK feature for optimum performance, displaying height, weight, and BMI simultaneously by simply raising the digital height rod while a patient is being weighed. There are no keys to push and no operational sequences. EMR/EHR ready. Height rod measures up to 6’7” (200 cm). 600 lb x 0.2 lb / 270 kg x 0.1 kg capacity. Optional Wi-Fi connectivity. OIML EC Class III model available. The 6854DHR is NTEP certified for weighing accuracy with patient dosing.

FEATURES

6C Batteries (Not Included)
600 lb / 270 kg Capacity
NTEP Certified for Weighing Accuracy with Dosing Patients
BMI Calculation
Digital Height Rod
EMR/EHR Ready
Integral Wheels Ease Transport
OIML EC Class III Model Available
Wi-Fi and Ethernet Optional

SPECIFICATIONS

6854DHR Capacity: 600 lb x 0.2 lb / 270 kg x 0.1 kg
6854KGEUDHR Capacity: 300 kg x 0.1 kg or 350 kg x 0.2 kg
Platform Size: 18 x 14 in / 46 x 36 cm
Shipping Weight: 74 lb / 34 kg
Digital Height Rod: 43 to 79 in (110 to 200 cm)
Power: Optional model MV1PWR AC adapter or 6 C batteries (not included)
Display: 5 digit, seven segment, 7/8 inch (22.23 mm) high LCD weight digits
Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet
Keyboard: 19 key, color-coded, sealed membrane
Digital Height Rod Requirements: 0.1 in / 0.1 cm graduations
Outer Dimensions (with height rod folded down): 29.1 in W x 20.8 in D x 45.6 in H / 73.9 cm W x 52.8 cm D x 115.8 cm H

Model	Description
6854DHR	Bariatric Scale, Digital, 600 lb x .2 lb / 270 kg x .1 kg, 18" x 14" Platform, Digital Height Rod
6854DHR-AC	Bariatric Scale, Digital, 600 lb x .2 lb / 270 kg x .1 kg, 18" x 14" Platform, DHR, AC Adapter

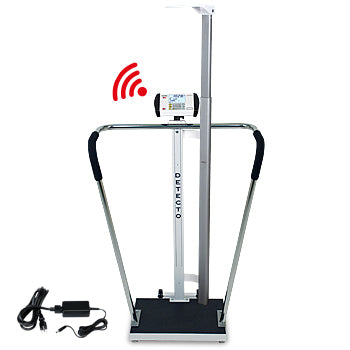

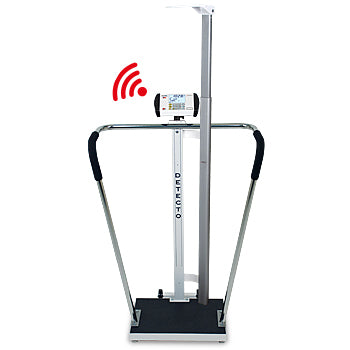

6854DHR-C	Bariatric Scale, Digital, 600 lb x .2 lb / 270 kg x .1 kg, 18" x 14" Platform, DHR, BT / WiFi
6854DHR-C-AC	Bariatric Scale, Digital, 600 lb x .2 lb / 270 kg x .1 kg, 18" x 14" Platform, DHR, BT / WiFi, AC Adapter

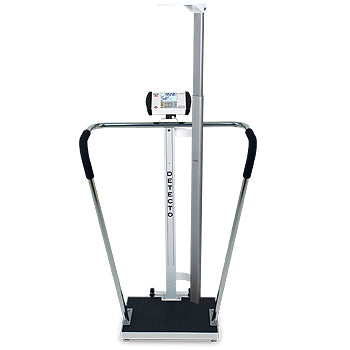

6854KGEUDHR	OIML EC Class III 300 kg x 0.1 kg, Stand on Scale with DHR

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Configuration	Price	Select configuration
600 lb × 0.2 lb / 270 kg × 0.1 kg + Digital Height Rod	$3,650.00	Select
600 lb × 0.2 lb / 270 kg × 0.1 kg + DHR + AC Adapter	$3,650.00	Select
600 lb × 0.2 lb / 270 kg × 0.1 kg + DHR + Bluetooth / Wi-Fi	$3,740.00	Select
600 lb × 0.2 lb / 270 kg × 0.1 kg + DHR + Bluetooth / Wi-Fi + AC Adapter	$3,740.00	Select
300 kg × 0.1 kg + OIML EC Class III + Stand on Scale with DHR	$3,650.00	Select
