DBS Drum/Barrel Scale Package

DBS Drum/Barrel Scale Package

by Optima Scale
$999.00 - $1,299.00
$999.00
$999.00 - $1,299.00
$999.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

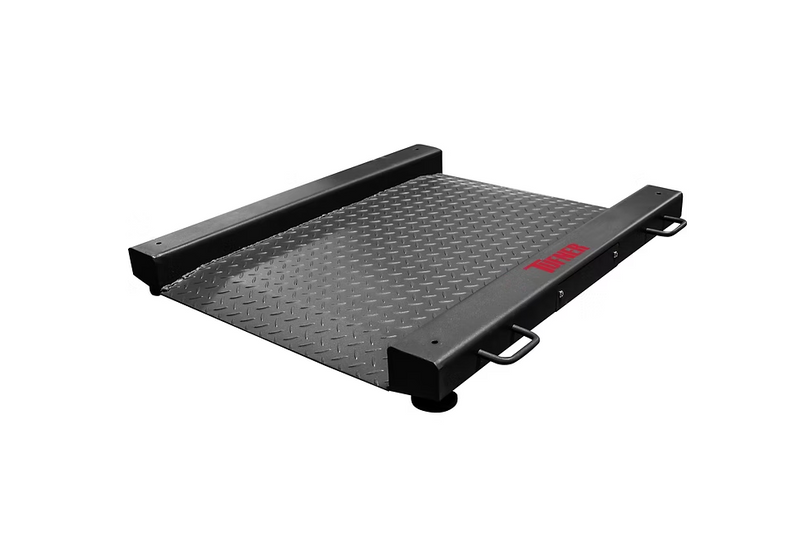

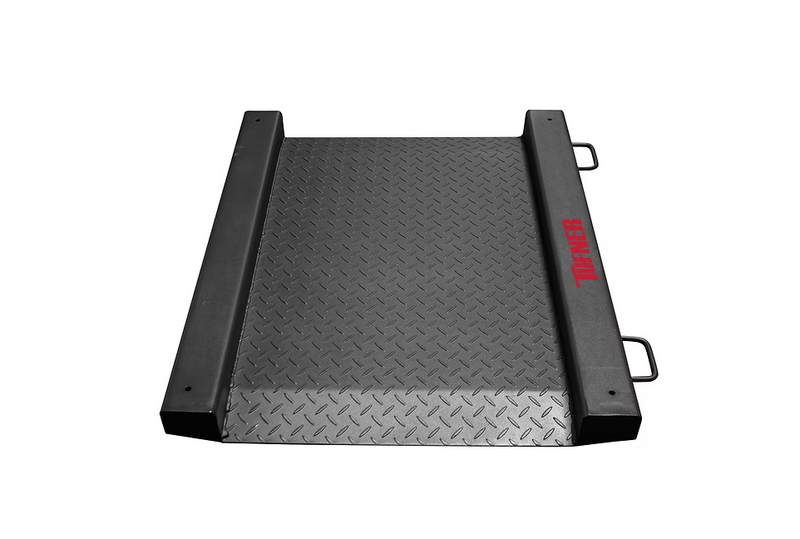

The DBS Drum/Barrel Scale Package solves that with its ultra-low profile, integrated ramps, and rugged construction built for industrial demands.

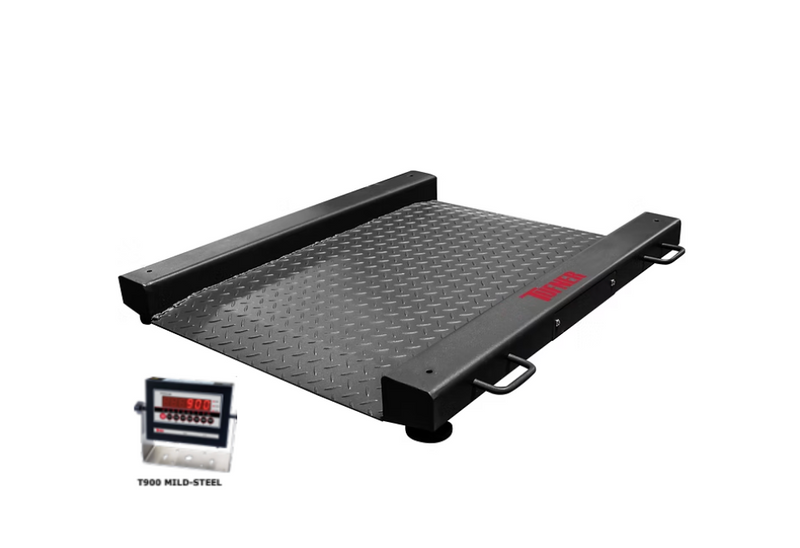

Built with a powder-coated steel platform with diamond tread for traction (or upgrade to stainless steel for washdown environments), this package includes both the scale and indicator for a complete setup. The spacious platform supports two-way ramp access and live rails for pallet weighing, while built-in wheels and carry handles make it fully portable. Height-adjustable feet ensure stability, and its slim profile fits through standard doors, ready for warehouse, shipping, or skid weighing applications.

FEATURES

  • Standard Model: Powder coated steel construction with rugged diamond
    tread safety plate
  • Stainless Steel Model: 304 stainless steel washdown construction

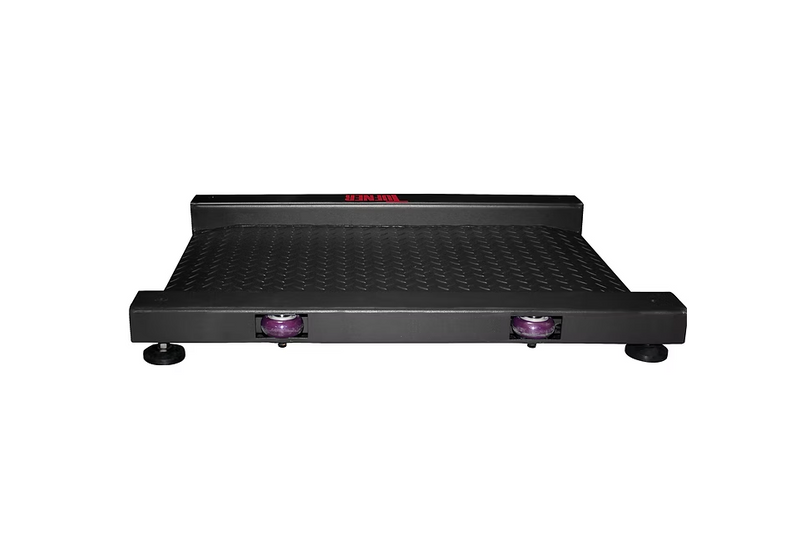

  • Built-in carry handles and wheels (makes it portable and easy to trans-
    port)
  • Features a spacious platform with two-way easy access ramps
  • Ultra-low profile allows easy loading of heavy items
  • Live rails allows for weighing by placing a pallet across the rails
  • Ideal for drum and barrel weighing, warehouse shipping & receiving,
    container weighing, pallet & skid weighing, and many other
    industrial applications
  • Height-adjustable leveling feet
  • Scale fits through standard doors and can go anywhere you need it
  • 20’ shielded metal cable included
  • Anti-corrosion, powder coated steel
  • Factory pre-calibrated for quick setup

SPECIFICATION

MODEL NUMBER

CAPACITY

PLATFORM SIZE

OVERALL SIZE

DBS-12430

1,000 lb x 0.2 lb

24” W x 30” L x 1.5” H

32” W x 38” L x 3.5” H

DBS-22430

2,000 lb x 0.5 lb

24” W x 30” L x 1.5” H

32” W x 38” L x 3.5” H

DBS-12727

1,000 lb x 0.2 lb

27” W x 27” L x 1.5” H

35” W x 35” L x 3.5” H

DBS-22727

2,000 lb x 0.5 lb

27” W x 27” L x 1.5” H

35” W x 35” L x 3.5” H

DBS-13131*

1,000 lb x 0.2 lb

31” W x 31” L x 1.5” H

39” W x 39” L x 3.5” H

DBS-23131*

2,000 lb x 0.5 lb

31” W x 31” L x 1.5” H

39” W x 39” L x 3.5” H

DBS-13636*

1,000 lb x 0.2 lb

36” W x 36” L x 1.5” H

44” W x 44” L x 3.5” H

DBS-23636*

2,000 lb x 0.5 lb

36” W x 36” L x 1.5” H

44” W x 44” L x 3.5” H

DBS-54852*

5,000 lb x 1 lb

48” W x 52” L x 1.5” H

56” W x 60” L x 3.5” H
  • MATERIAL: Mild Steel or Stainless Steel
  • OVERLOAD PROTECTION: 200%
  • POWER: AC/DC
  • CAPACITY: 1,000 lbs - 5,000 lbs
  • HEIGHT: 1.5 in
  • RAMP LENGTH: 4 in
  • CABLE LENGHT: 20 ft
  • WARRANTY: 2 years limited

OPTIONS/ ACCESSORIES

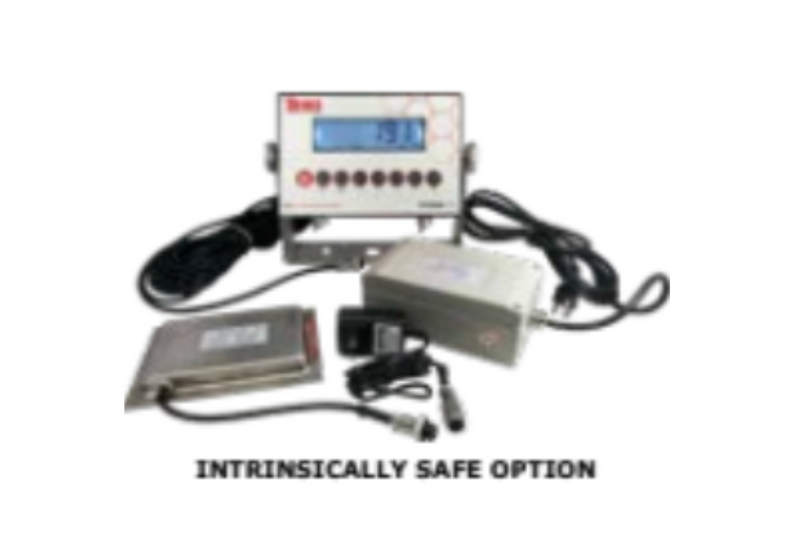

  • Explosion proof option
  • Data logging software
  • Printer
  • Indicator stand
  • Scoreboard
  • Wireless communication


SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
