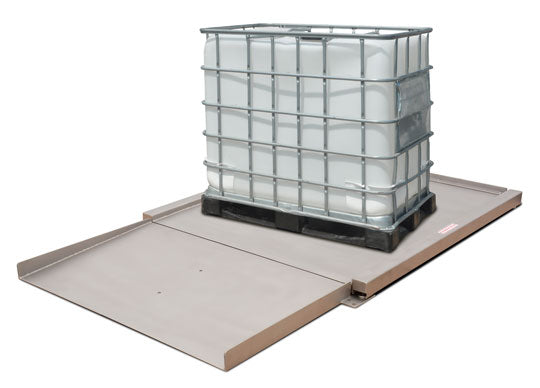

Cambridge Scale Works Model SS680 Series Stainless Steel Ultra-LO Profile Floor Scale - Northline Scale

Cambridge Scale Works Model SS680 Series Stainless Steel Ultra-LO Profile Floor Scale

by Cambridge Scale
$5,200.00 - $11,450.00
$5,200.00
$5,200.00 - $11,450.00
$5,200.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

The Cambridge SS680 Series is a premium line of ultra-low profile floor scales engineered for demanding industrial environments. Constructed entirely from stainless steel, these scales offer exceptional durability, corrosion resistance, and hygienic performance, making them ideal for industries such as food processing, pharmaceuticals, and chemical manufacturing. Their ultra-low profile design facilitates easy loading and unloading of materials using pallet jacks and carts, enhancing operational efficiency.

FEATURES

  • Live safety side rails for oversized loads and roll off protection
  • Structural tubular stainless steel design
  • Capped and sealed tubes throughout
  • Smooth stainless steel deck plates
  • Stainless steel anti-skid leveling feet
  • 100% end loading capacity
  • 200% overload protection
  • Remote stainless steel NEMA IV junction box with  ten foot Sealtite® protective conduit.
  • Four internally mounted NTEP certified 5000 division class III/IIIL water resistant environmentally protected  IP 67 rated stainless steel load cells
  • Easy access stainless steel leveling feet
  • Shielded signal and load cell cables
  • Ultra-lo profile design for jack truck & cart weighing
  • Glass bead stainless steel finish
  • One part in 5000 accuracy

OPTIONS (sold separately)

  • Stainless steel easy incline ramps
  • Stainless steel bumper rail assembly
  • Type 316 stainless steel
  • Stainless steel diamond tread plate
  • Hermetically sealed stainless steel load cells
  • "FM" stainless steel load cells

SPECIFICATIONS

Overall Size Platform Size Platform Elevation Capacity Approx. Shipping Weight
36" x 30" 30" x 30" 1.5" 1,000 Lb. 175 Lb.
36" x 30" 30" x 30" 1.5" 2,500 Lb. 175 Lb.
42" x 36" 36" x 36" 1.5" 1,000 Lb. 230 Lb.
42" x 36" 36" x 36" 1.5" 2,500 Lb. 230 Lb.
42" x 48" 36" x 48" 1.5" 1,000 Lb. 280 Lb.
42" x 48" 36" x 48" 1.5" 2,500 Lb. 280 Lb.
48" x 48" 48" x 48" 1.5" 2,500 Lb. 280 Lb.
54" x 48" 48" x 48" 2" 10,000 Lb. 365 Lb.
54" x 60" 48" x 60" 2" 5,000 Lb. 400 Lb.
54" x 60" 48" x 60" 2" 10,000 Lb. 460 Lb.
54" x 72" 48" x 72" 2" 5,000 Lb. 500 Lb.
54" x 72" 48" x 72" 2" 10,000 Lb. 560 Lb.
66" x 60" 60" x 60" 2.5" 5,000 Lb. 500 Lb.
66" x 60" 60" x 60" 2.5" 10,000 Lb. 580 Lb.
66" x 72" 60" x 72" 2.5" 5,000 Lb. 605 Lb.
66" x 72" 60" x 72" 2.5" 10,000 Lb. 700 Lb.
66" x 84" 60" x 84" 2.5" 5,000 Lb. 715 Lb.
66" x 84" 60" x 84" 2.5" 10,000 Lb. 850 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
