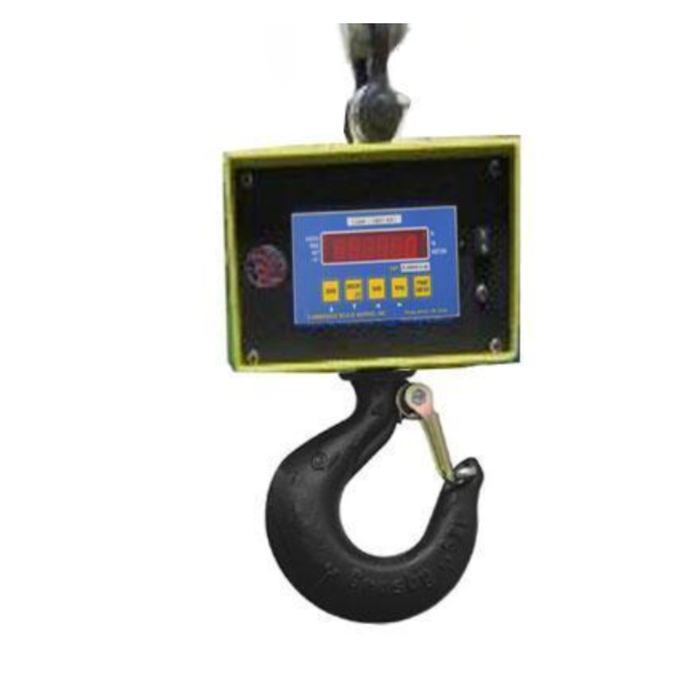

Cambridge Scale Works Model CSW-10AT-CS-AS Crane Scale Series

Cambridge Scale Works Model CSW-10AT-CS-AS Crane Scale Series

by Cambridge Scale
$2,180.00 - $2,650.00
$2,180.00
$2,180.00 - $2,650.00
$2,180.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

The Cambridge Scale Works Model CSW-10AT-CS-AS Crane Scale Series is designed for accurate overhead weighing in industrial lifting applications. Built for use with hoists, cranes, and material handling systems, it provides reliable weight readings for warehouses, manufacturing facilities, and shipping operations.

Using the CSW-10AT-CS-AS delivers a controlled, confident weighing experience—the suspended scale allows loads to be weighed directly during lifting without disrupting workflow. This crane scale offers a practical solution for operations that require safe load monitoring, accuracy, and consistent performance in demanding environments.



FEATURES

  • All Steel Enclosure
  • AC/Battery Operation - 20 hrs. between charges Includes Battery with Internal Battery Charger and External Wall Battery Charger
  • Selectable Sleep Mode to Conserve Battery Power
  • Weight Totalization
  • Net/ Gross Display Modes
  • Full Range Auto Tare
  • Adjustable Sample Rate
  • Digital Filtering
  • All Pushbutton Controls
  • 0.56 inch LED Display with Selectable Brightness
  • On / Off Switch
  • Center of Zero Annunciator
  • Lb / Kg Conversion
  • Span Adjustment at Increasing or Decreasing Weights
  • 1 to 5 Points of Digital Calibration
  • Full Range Push Button Zero
  • Auto Zero Tracking
  • Adjustable Motion Detection
  • 150% Safe Overload of Load Cell
  • 300% Ultimate Overload of Load Cell
  • Light Weight for Easy Handling and Transport. 10 - 20 lbs depending on capacity.
  • Keypad Calibration with Audit Trail

APPLICATIONS

  • Shipping & Receiving
  • General Purpose Weighing
  • Work - In Process
  • Anywhere an overhead crane is used and weight readings are desired

SPECIFICATIONS

Model Number

Capacity and Graduation

Standard Shackle & Hook

Approximate Ship Weight

CSW-10AT-CS-500-AS

500 lbs × 0.1 lbs

½-20 2T Shackle / 1.5 Ton Hook

10 lbs

CSW-10AT-CS-1K-AS

1,000 lbs × 0.2 lbs

½-20 2T Shackle / 1.5 Ton Hook

10 lbs

CSW-10AT-CS-2K-AS

2,000 lbs × 0.5 lbs

½-20 2T Shackle / 1.5 Ton Hook

10 lbs

CSW-10AT-CS-5K-AS

5,000 lbs × 1 lb

¾-16 5T Shackle / 5 Ton Hook

18 lbs

CSW-10AT-CS-10K-AS

10,000 lbs × 2 lbs

¾-16 5T Shackle / 5 Ton Hook

20 lbs

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
