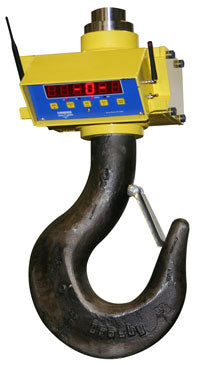

Cambridge Scale Works Model ASCS-15AT-RFL All Steel Crane Scale
The Cambridge ASCS-15AT-RFL All Steel Crane Scale is a robust, high-precision weighing solution designed for demanding industrial environments. With capacities ranging from 5,000 to 150,000 lbs, it is ideal for applications such as shipping and receiving, work-in-process monitoring, hot metal handling, and steel service centers. Its wireless capabilities and durable construction make it suitable for overhead crane operations where accurate weight readings are essential.
FEATURES
- Radio Frequency Link (Transmitter)
- Capacities: 5,000 lbs to 150,000 lbs.
- Accuracy: 0.1% of the applied load
- Overload Indication: 105% of the rated capacity
- Display: 1.5” High Visibility Red LED Display
- Power:12V Rechargeable Battery (Charger included)
- Operating Time:40 Hours Between Charges
- Enclosure: 1/4-Inch Steel Enclosure
- Safe Overload: 150% of Rated Capacity
- Ultimate Overload: 500% of Rated Capacity (Breaking Strength)
- Calibration: Digital
- Mating Hardware: Top Eye or Shackle & Bottom Hook
- Meter Function: On/Off, Zero, LB/KG, Gross/Net, Tare, Print
- Handheld Remote: Zero, LB/KG, Gross/Net,Tare, Print
APPLICATIONS
- Shipping & Receiving
- Work-In Process
- Hot Metal Applications
- Steel Service Center
- Anywhere an overhead crane is used and a weight reading is desired of the material(s) lifted.
OPTIONS (sold separately)
- AC Power Supply –120VAC (We provide the connection - customer provides cabling)
- Headroom Loss Adapter - Provides minimum headroom loss
- Headroom Loss Adapter Nut Mated to Optional Headroom Loss Adapter
- Heat Protection Package for Foundry Applications
Package A: 1/4” Heat Plate with Deflectors
Package B: Insulated 1/4” Heat Plate with Deflectors
Package C: Insulated 1/4” Heat Plate Surround
All Heat Protection Packages Include Infrared Glass Lens
- Heat Protection Package for Foundry Applications
- Crane Overload Warning System - Strobe Light & Audible Alarm
- Spare Battery Pack
- Custom Software and Hardware Devices to meet your application requirements.
- Outdoor Environmental Protection Package (AC Only).
SPECIFICATIONS
|
Model Number
|
Capacity & Graduation
|
Standard Eye or Shackle & Hook
|
Standard Headroom Loss
|
Approx. Ship Weight
|
|
ASCS-15AT-RFL-5K
|
5,000 lbs.
X 1 lbs. |
#8 Eye / 5 Ton Hook
|
16 1/8"
|
155 lbs.
|
|
ASCS-15AT-RFL-10K
|
10,000 lbs.
X 2 lbs. |
#8 Eye / 7 Ton Hook
|
17 1/8"
|
205 lbs.
|
|
ASCS-15AT-RFL-20K
|
20,000 lbs.
X 5 lbs. |
#10 Eye / 11 Ton Hook
|
20 3/8"
|
255 lbs.
|
|
ASCS-15AT-RFL-30K
|
30,000 lbs.
X 10 lbs. |
#11 Eye / 15 Ton Hook
|
26 7/16"
|
330 lbs.
|
|
ASCS-15AT-RFL-50K
|
50,000 lbs.
X 10 lbs. |
35T Shackle / 30 Ton Hook
|
33 3/16"
|
405 lbs.
|
|
ASCS-15AT-RFL-60K
|
60,000 lbs.
X 20 lbs. |
35T Shackle / 30 Ton Hook
|
35 7/8"
|
480 lbs.
|
|
ASCS-15AT-RFL-70K
|
70,000 lbs.
X 20 lbs. |
35T Shackle / 37 Ton Hook
|
38 15/16"
|
530 lbs.
|
|
ASCS-15AT-RFL-80K
|
80,000 lbs.
X 20 lbs. |
55T Shackle / 45 Ton Hook
|
40 5/8"
|
555 lbs.
|
|
ASCS-15AT-RFL-100K
|
100,000 lbs.
X 50 lbs. |
55T Shackle / 60 Ton Hook
|
42 1/8"
|
605 lbs.
|
|
ASCS-15AT-RFL-150K
|
150,000 lbs.
X 100 lbs. |
85T Shackle / 75 Ton Hook
|
50 3/8"
|
880 lbs.
|
SHIPPING & SUPPORT
We offer FREE SHIPPING to Lower 48 United States
This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
