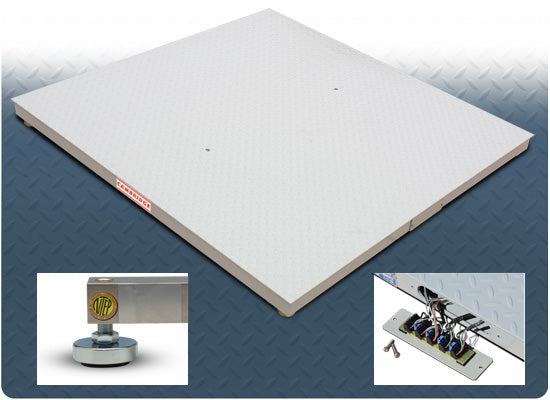

Cambridge Scale Works Model AL660 Series Aluminum Low Profile Scales

Cambridge Scale Works Model AL660 Series Aluminum Low Profile Scales

by Cambridge Scale
$2,000.00 - $4,250.00
$2,000.00
$2,000.00 - $4,250.00
$2,000.00

The Cambridge AL660 Series Aluminum Low Profile Scales are engineered for precision, durability, and versatility in industrial environments. Constructed with structural tubular aluminum and featuring a low-profile design, these scales are ideal for applications requiring easy loading and unloading, such as warehouses, shipping centers, and manufacturing facilities. Their lightweight yet robust build ensures portability without compromising on strength.

FEATURES

  • 1 part in 5,000 accuracy.
  • Structural tubular aluminum construction.
  • Aluminum diamond tread deck plate.
  • 150% overload protection.
  • 100% end loading protection.
  • Low profile design for easy incline ramping.
  • Eye bolt holes for easy setup and moving.
  • 20 foot shielded indicator cable.
  • Shock load protection.
  • Four internally mounted, NTEP Certified-5000 Division Class III/III L, IP-67 water resistant rated, environmentally protected, load cells.

OPTIONS & ACCESSORIES (sold separately)

  • Glass bead finish
  • Smooth deck plate
  • Stainless steel hermetically sealed and/or "FM" approved load cells
  • Remote stainless steel NEMA 4X junction box
  • Easy incline ramps (carbon steel only)
  • Pit forms (carbon steel only)
  • 48" indicator column (freestanding) (carbon steel only)
  • Lag down brackets (carbon steel only)

SPECIFICATIONS

SIZE
CAPACITY
DECK THICKNESS
SHIP WEIGHT
24” X 24” X 3”
1,000 Lb.
1/4"
55 Lb.
  24” X 24” X 3”
2,500 Lb.
1/4"
55 Lb.
30” X 30” X 3”
1,000 Lb.
1/4"
75 Lb.
30” X 30” X 3”
2,500 Lb.
1/4"
75 Lb.
36” X 36” X 3”
1,000 Lb.
1/4"
100 Lb.
36” X 36” X 3”
2,500 Lb.
1/4"
100 Lb.
36” X 36” X 3”
5,000 Lb.
1/4"
100 Lb.
48” X 48” X 3”
1,000 Lb.
1/4"
155 Lb.
48” X 48” X 3”
2,500 Lb.
1/4"
155 Lb.
48” X 48” X 3”
5,000 Lb.
1/4"
155 Lb.
48” X 60” X 3”
5,000 Lb.
1/4"
195 Lb.
48” X 72” X 3”
5,000 Lb.
1/4"
235 Lb.
60” X 60” X 3”
5,000 Lb.
1/4"
265 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
