Cambridge Scale Works Model 670-3 Barrel Weigher - Northline Scale

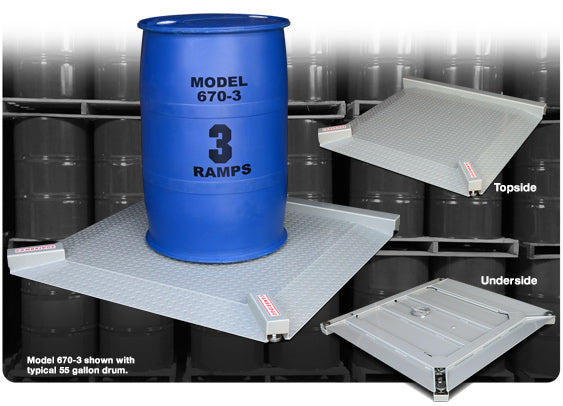

Cambridge Scale Works Model 670-3 Barrel Weigher

by Cambridge Scale
$2,195.00 - $2,460.00
$2,195.00
$2,195.00 - $2,460.00
$2,195.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

The Cambridge Model 670-3 Barrel Weigher is a heavy-duty, ultra-low-profile industrial scale engineered for efficient and accurate weighing of barrels, drums, totes, super sacks, and other large containers. Featuring three built-in live ramps and live side rails, it facilitates smooth loading and unloading from multiple directions, making it ideal for high-throughput environments. Constructed with structural tubular steel and an anti-skid diamond plate deck, the 670-3 is built to withstand demanding industrial applications.

FEATURES

  • Structural tubular steel construction.
  • Anti-skid diamond plate deck.
  • 100% End loading capacity.
  • 150% Overload protection.
  • 20 Foot indicator cable.
  • Eye bolt holes allow easy set-up.
  • Shielded load cell and indicator cables.
  • Ultra-low profile (1.5” above the floor).
  • Live side rails to weigh oversized loads.
  • 1 Part in 5000 accuracy.
  • Live built-in easy incline ramps.
  • Shock load protection.
  • (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated shear beam load cells.
  • Easy access leveling.

APPLICATIONS

  • Barrels
  • Drums
  • Totes
  • Super Sacks
  • General purpose weighing

OPTIONS (sold separately)

  • Smooth carbon steel deck plate.
  • Remote stainless steel NEMA 4x junction box with 10' Sealtite flexible conduit.
  • Load cell options:
    Stainless steel , Hermetically sealed Stainless Steel,“FM” approved
  • H.E.P. Package Includes:
    Remote stainless steel NEMA 4x J -box with 10' Sealtite flexible conduit
    Capped and sealed tubes
    Stainless steel load cells, leveling feet and hardware, Sandblasted surface
    Cold zinc epoxy coating with urethane enamel finish coat
  • Portability Package

SPECIFICATIONS

OVERALL SIZE
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
39” X 42”
30” x 30” x 1.5”
1,000 Lb. x .2
200 Lb.
39” X 42”
30” x 30” x 1.5”
2,500 Lb. x .5
200 Lb.
39” X 42”
30” x 30” x 1.5”
5,000 Lb. x 1
220 Lb.
45” X 48”
36” x 36” x 1.5”
1,000 Lb. x .2
285 Lb.
45” X 48”
36” x 36” x 1.5”
2,500 Lb. x .5
285 Lb.
45” X 48”
36” x 36” x 1.5”
5,000 Lb. x 1
315 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
