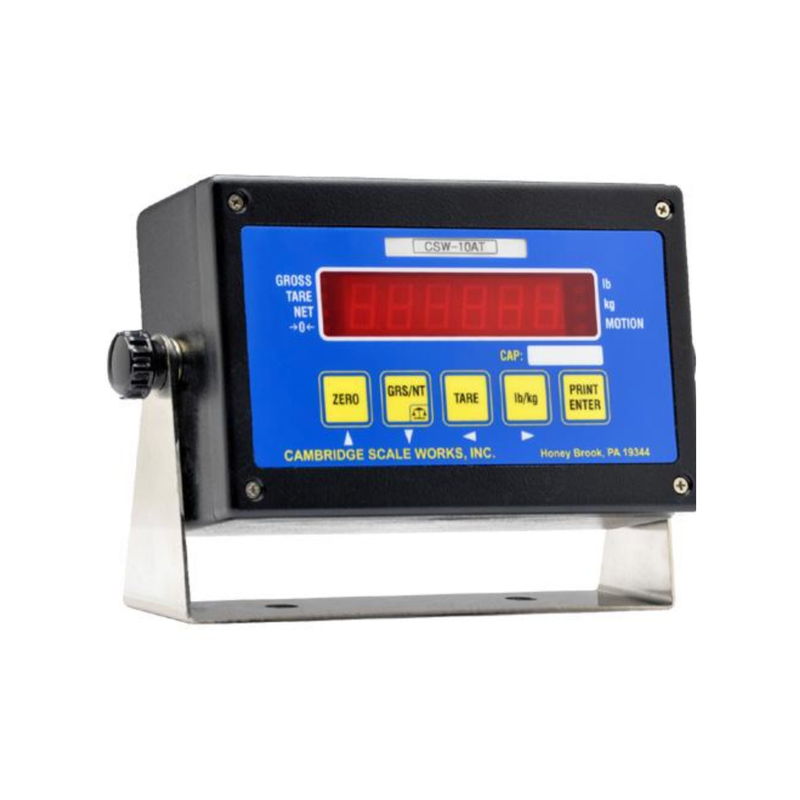

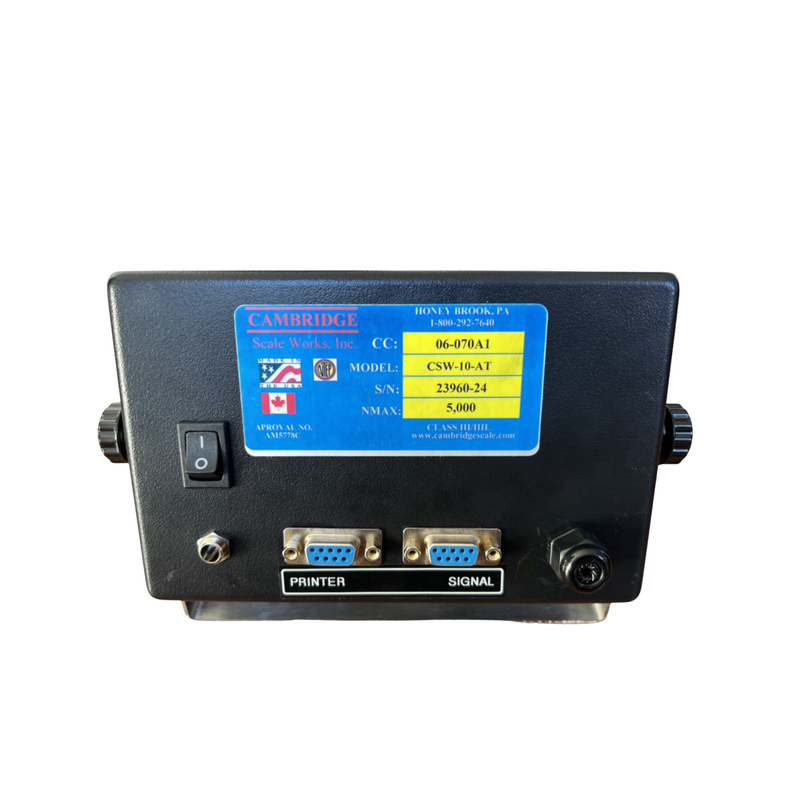

Cambridge Scale Works Model: CSW-10AT Digital Weight & Check Weighing Indicator
Cambridge Scale Works Model: CSW-10AT Digital Weight & Check Weighing Indicator

Cambridge Scale Works Model: CSW-10AT Digital Weight & Check Weighing Indicator

by Cambridge Scale
Save 14% Save 14%
$396.00
$396.00 - $396.00
$396.00
$339.00
$339.00 - $339.00
$339.00

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

âś” Authorized Cambridge Scale Dealer

âś” Call Us: +1 (941) 257-3293

âś” Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

âś” Made in The USA

âś” Ships From Cumberland, MD

The Cambridge CSW-10AT Digital Weight & Check Weighing Indicator provides clear, dependable readings designed for fast-paced industrial environments. Built for both standard weighing and check-weighing tasks, it helps operators monitor target ranges with precision while maintaining consistent measurement performance.

Imagine watching your weight values respond instantly as materials are added or removed, giving you full control over accuracy in real time. The CSW-10AT offers a practical digital weighing indicator solution that supports efficient workflow, reliable checks, and straightforward operation across a variety of applications.



FEATURES

  • Selectable: NTEP 5,000 Division
                      Non-NTEP 20,000 Division
  • Net/Gross Display Modes
  • Full Range Auto Tare
  • Adjustable Digital Filtering
  • All Pushbutton Controls
  • LED Display (Bright)
  • Printer Data Output on Demand
  • 9 Pin Load Cell Connection
  • Simple No-Soldering Load
  • Cell Connection
  • Clearly, Visible Center of Zero Indication on DIsplay
  • Lb/Kg Conversion
  • Keypad Calibration with Audit Trail
  • Weight Totalization
  • 1 to 5 points of Digital Calibration available
  • Span Adjustment at Increasing or Decreasing Weights
  • Full Range Push Button Zero
  • (1) RS-232 Port for Interface with:
    • Printer Output of Gross/Tare/Net
    • Computer Data Output
    • Scoreboard Continuous Output Alphanumeric or Numeric
  • 100-240 VAC, 50/60 Hz Adapter
  • Auto Zero Tracking
  • Adjustable Motion Detection
  • ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand



SPECIFICATIONS



  • Power: 100-240 VAC, 50/60 Hz, (12) VDC ±10% output
  • Humidity: 0-90% Non-condensing
  • Enclosure: ABS Polymer
  • Dimensions: 6.5” x 4.3” x 2.5” without Stand, +1 inch with Stand
  • Display: High Efficient, Bright (Adjustable)LED—6 Digits—.56” High
  • Input: 0-15mv
  • Temperature: -10° to +40° Celsius
  • Linearity: 0.001% of Full Scale
  • Accuracy: 0.001% of Full Scale
  • Load Cell Supply: 5VDC at 150ma (8 each 350 ohm load cells)

PART NUMBER

MODEL

DESCRIPTION

4900-1015-04

CSW-10AT

Digital Indicator, LED Display Includes Check Weighing Feature

    OPTIONS

    • 110 VAC Dry Contact Set Point
    • Peak Weight Hold
    • Digital Scroll Tare
    • P/N 1705-1119-00 12 VDC Accessory Port Power Cable
    • Scale Warning System (strobe light with audible alarm warns operator when set limits have been exceeded)
    • Wi-Fi Transmitter To Customer’s Wireless Hub– 802.11 B/G
    • Ethernet Connection
