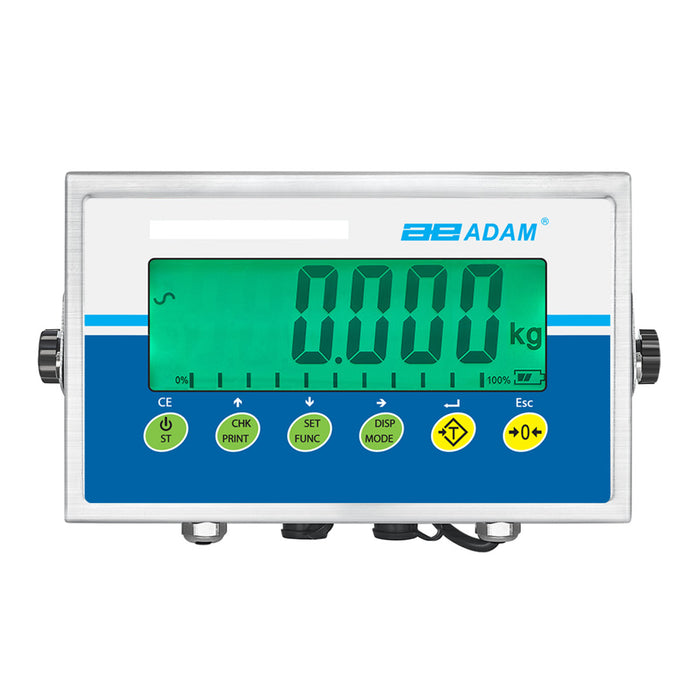

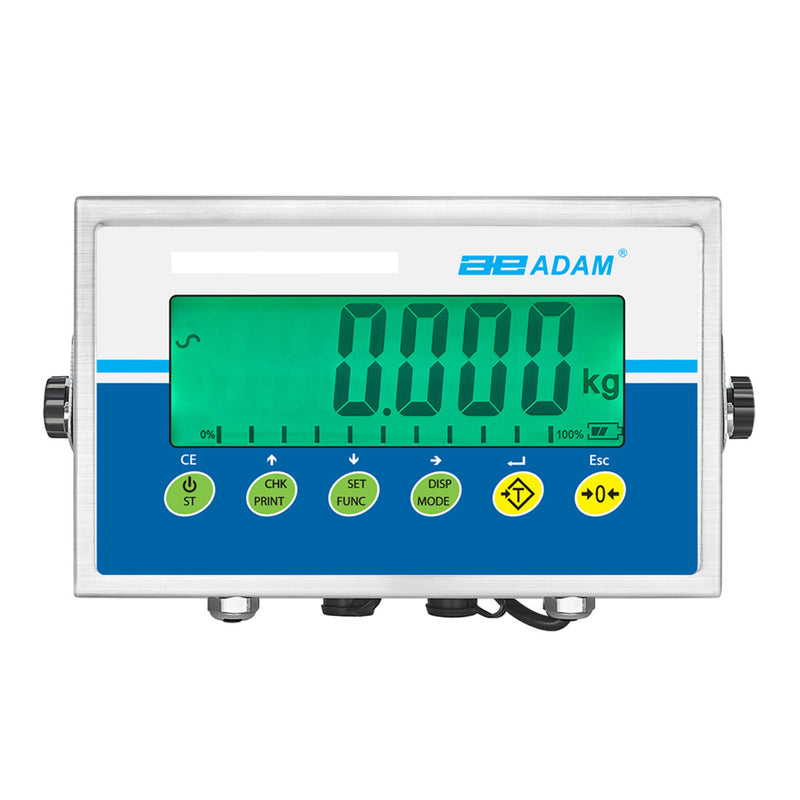

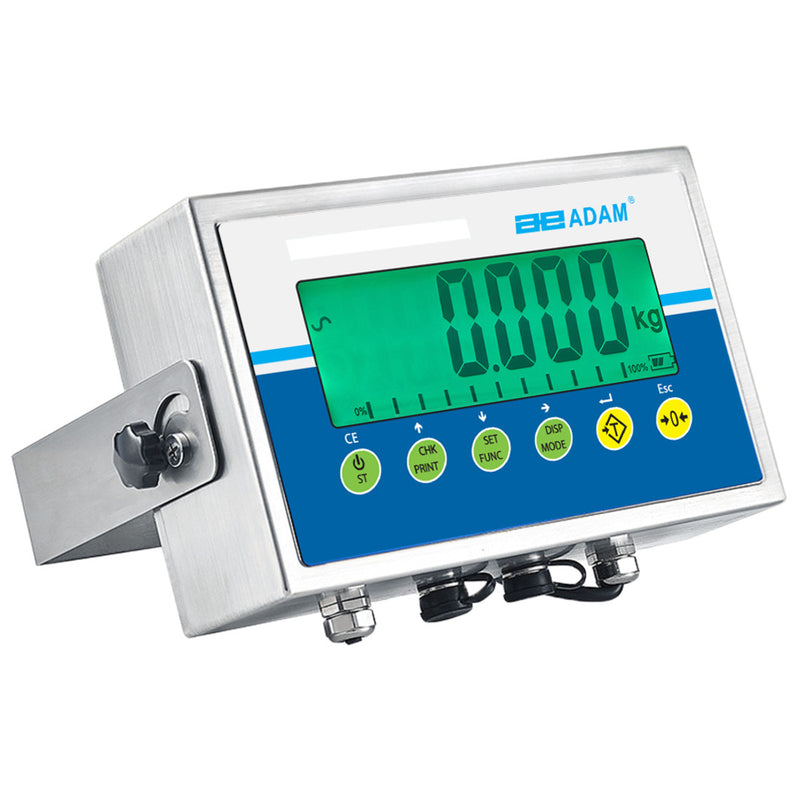

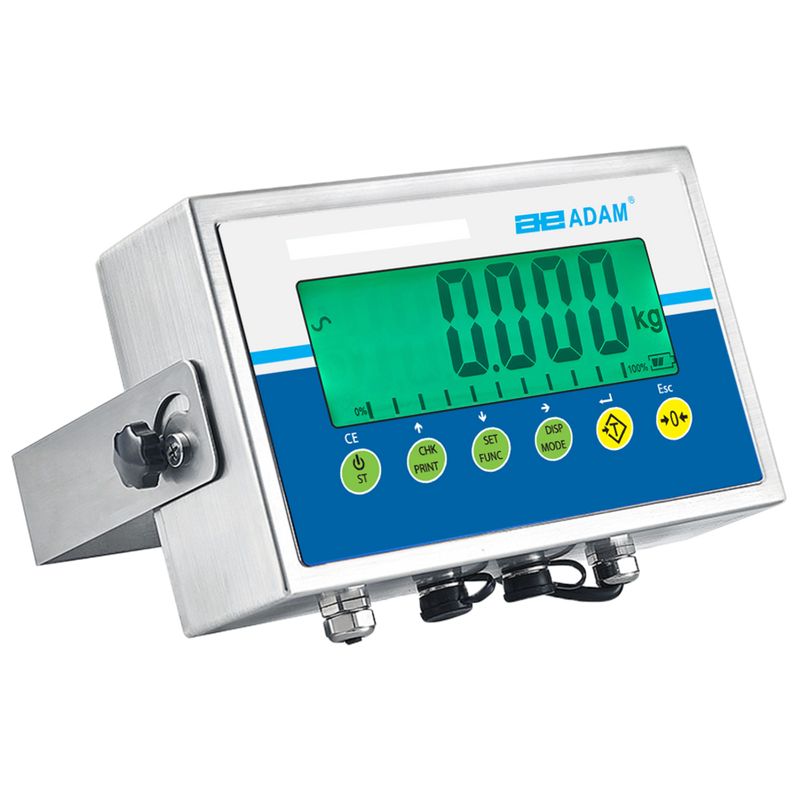

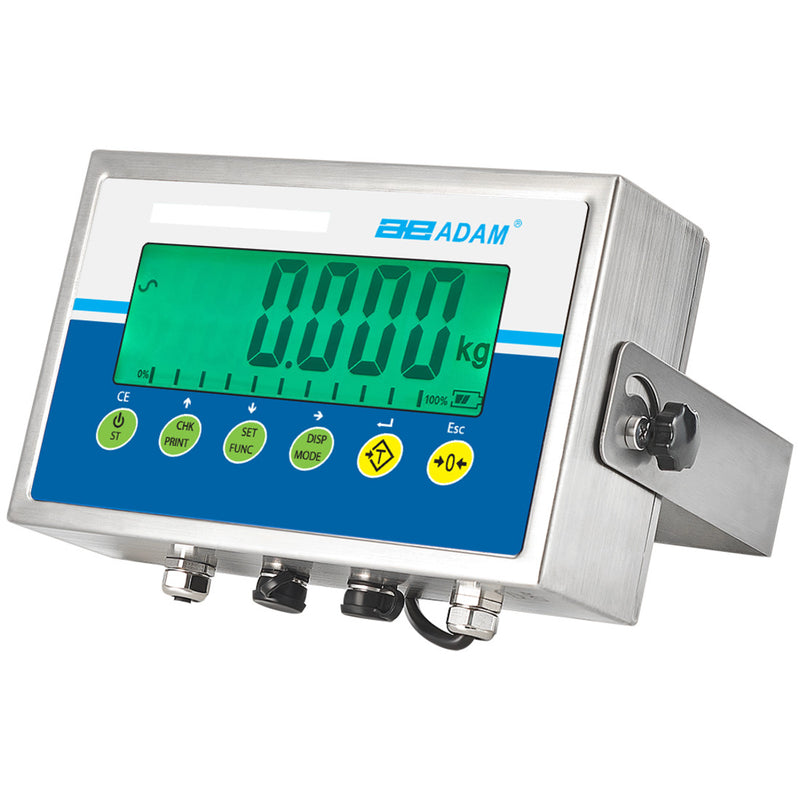

The AE 403 Washdown Weighing Indicator is engineered for excellence in industrial weighing applications, offering unmatched durability and precision. With its robust stainless steel housing and superior IP68 rating, the AE 403 is designed to withstand harsh environments, providing reliable protection against water and dust. Certified by the NSF for food safety, it is an ideal choice for food processing plants, agricultural settings, and more. This versatile indicator seamlessly connects to any Adam Equipment weighing platform, enhancing its functionality across various applications such as weighing, percentage weighing, checkweighing, dynamic/animal weighing, and parts counting. The AE 403's intuitive backlit LCD display features large 40mm digits and changes color to indicate if a load is under, over, or within preset limits, ensuring quick and accurate checkweighing. For added convenience, the AE 403 includes a wall-mount bracket, allowing for optimal visibility and flexibility in placement. Its internal rechargeable battery provides up to 120 hours of operation, making it perfect for use in locations without easy access to power outlets. The RS-232 interface ensures seamless communication with PCs and printers, streamlining data management. Designed to meet the demands of industrial environments, the AE 403 features a capacity tracker to monitor potential overloads and color-coded keys for easy operation. Its external calibration capability allows for precise adjustments, while the programmable auto power-off function conserves energy. Whether on the loading dock or in shipping and receiving areas, the AE 403 is the reliable choice for accurate and efficient weighing.
Key Features
- Backlit display changes color for quick notification of checkweighing limits
- Capacity tracker built into display for easily monitoring possible overloads
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Robust metal housing protects internal components in harsh environments
- Rugged stainless steel construction for ultimate durability
- RS-232 interface provides speedy connection to computers and printers
- Wall-mount bracket for placing indicator on vertical surface
- External calibration allows for verification and adjustment with weights
- Checkweighing with audible alarm
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Parts counting with preset sample sizes
- Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
- User-selectable scale division
- Zero-tracking feature ensures display returns to zero reading
- IP68-rated for protection against water and dust
Ideal Use Cases
- Weighing
- Parts counting
- Percentage weighing
- Checkweighing
- Dynamic
- animal weighing
- Accumulation
Available Models
-
AE 403a — Selectable | Selectable
-
AE 403aM — Selectable | Selectable
Specifications
| Product Type |
Weight Indicator |
| Capacity Options |
Selectable |
| Readability Options |
Selectable |
| Weighing Units |
kg,g,lb,oz, g,kg,lb,lb:oz,oz,N |
| Interface |
RS-232 |
| Calibration |
External calibration |
| Display |
Backlit LCD with 1.6" / 40mm high digits |
| Power Supply |
12VDC 800mA adapter / Internal rechargeable battery |
| Operating Temperature |
0° to 40°C / 32° to 104°F |
| Construction |
Stainless steel |
| Approvals |
NSF/NTEP/Measurement Canada, NSF |
| Warranty |
3 years |
