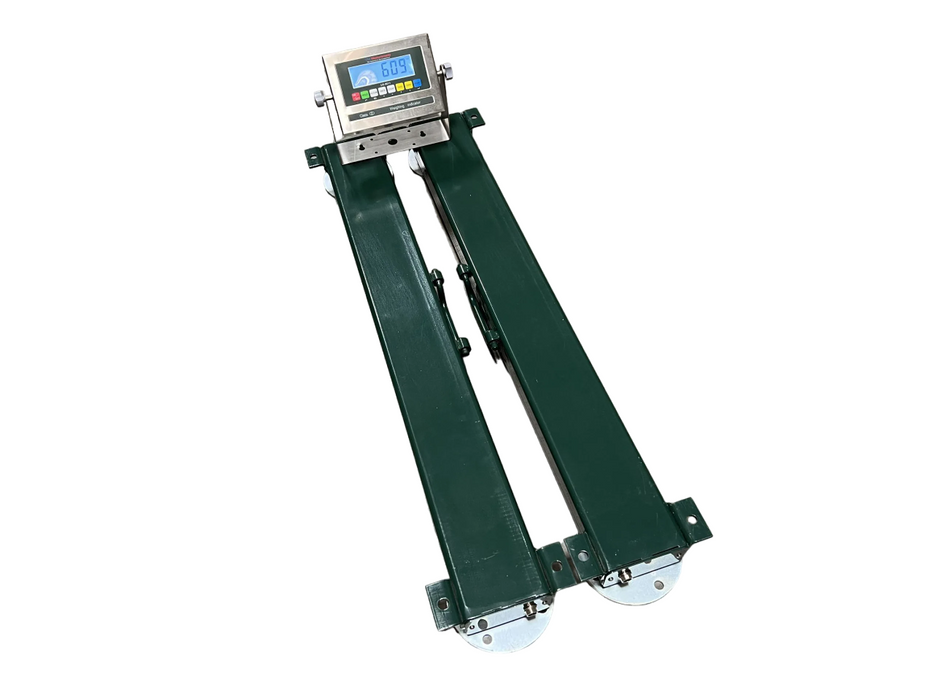

US-ESB40HD Heavy Duty 40″ Easy Squeezy Weigh Bars For Industrial Weighing

The US-ESB40-HD-10K Heavy Duty Easy Squeezy Weigh Bar Scale is engineered for high-demand applications, offering an impressive 10,000 lb capacity. Designed with an all-steel plated bottom, this scale provides enhanced durability, ensuring it can withstand heavy use in rugged environments. Its outdoor-safe construction makes it perfect for farms, industrial sites, and other challenging workspaces where exposure to the elements is common.

Equipped with a stainless steel indicator, the scale delivers accurate, reliable readings in any condition. The US-ESB40-HD-10K is built to last, ensuring you have a dependable weighing solution for your heaviest loads. Whether you’re weighing large pallets, livestock, or machinery, this heavy-duty scale delivers consistent performance with the convenience and portability of the Easy Squeezy design.

WEIGH BAR SPECIFICATIONS

• Sturdy top steel plate for maximum durability
• Low-profile design with a height of just 3.25″

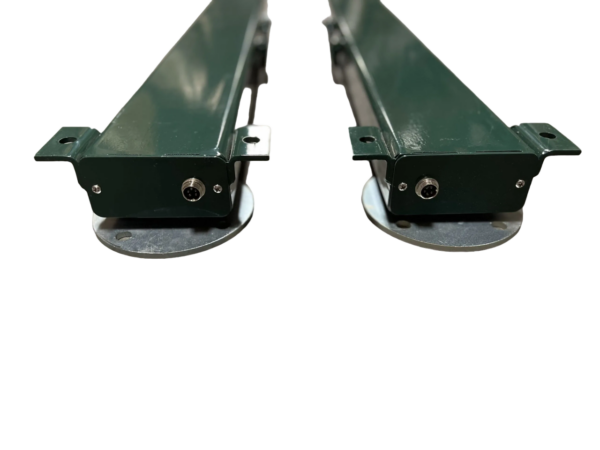

• Quick-disconnect connectors for hassle-free setup

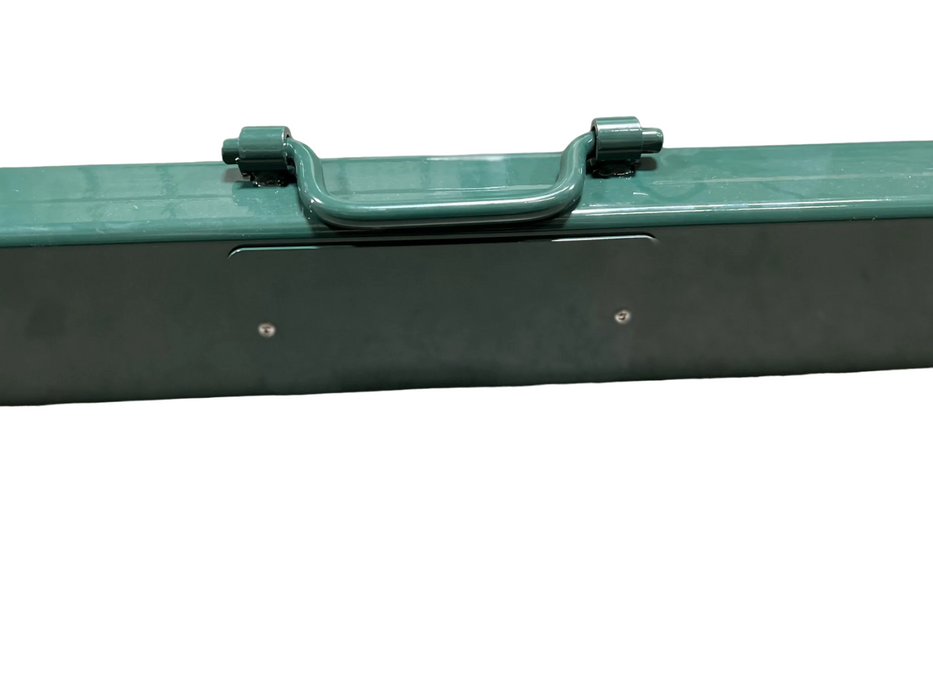

• Integrated carrying handles for easy portability
• Designed for convenient relocation to different sites
• Equipped with two 15′ stainless steel braided cables for reliable connections
• Comes with a US-6011SS indicator, pre-calibrated for accurate measurements
• Heavy-duty overload protection, rated at 200% capacity
• US-6011 indicator with a clear LCD display
• Long-lasting rechargeable battery with up to 80 hours of use
• Four adjustable leveling feet, with the option for concrete mounting
• 10,000 lb capacity with 1 lb precision
• User-friendly digital indicator for simple calibration
• Supports multiple weighing units: lb, kg, oz, lb, and g
• 5-year warranty on the steel frame for long-term reliability
• 2-year warranty on electronics for dependable performance
• Non-NTEP (Not legal for trade)

US-6011SS INDICATOR FEATURES

• Available in stainless steel or mild steel enclosure
• 1” digits displayed in LCD
• Weighing units for LCD: lb, kg, oz, lb, g
• Supports gross weighing
• Multiple tare functions available, including preset tare option
• Zero button for easy resetting
• Various hold functions for flexible weighing
• Piece counting functionality
• Accumulation and batch weighing features
• Check weighing with over/under alarm notifications
• Power-saving mode for efficient energy use
• Automatic date and time updates
• Gravity adjustment based on location
• Fully adjustable manual zero range setting
• Automatic error detection and warning system
• Splash-resistant keyboard and display for protection
• RS-232 port for optional scoreboard connection
• RS-232 port for connecting to a printer
• Displays up to 50,000 graduations for precise measurements
• Bracket and mounting hardware included
• 110V power adapter provided
• Easy-to-calibrate indicator with a 5-step process
• Full duplex RS-232 serial port for communication
• Supports up to six 350Ω load cells
• 2-year manufacturer warranty for peace of mind
• NTEP approved for 5,000 divisions for certified accuracy

WHAT IS INCLUDE

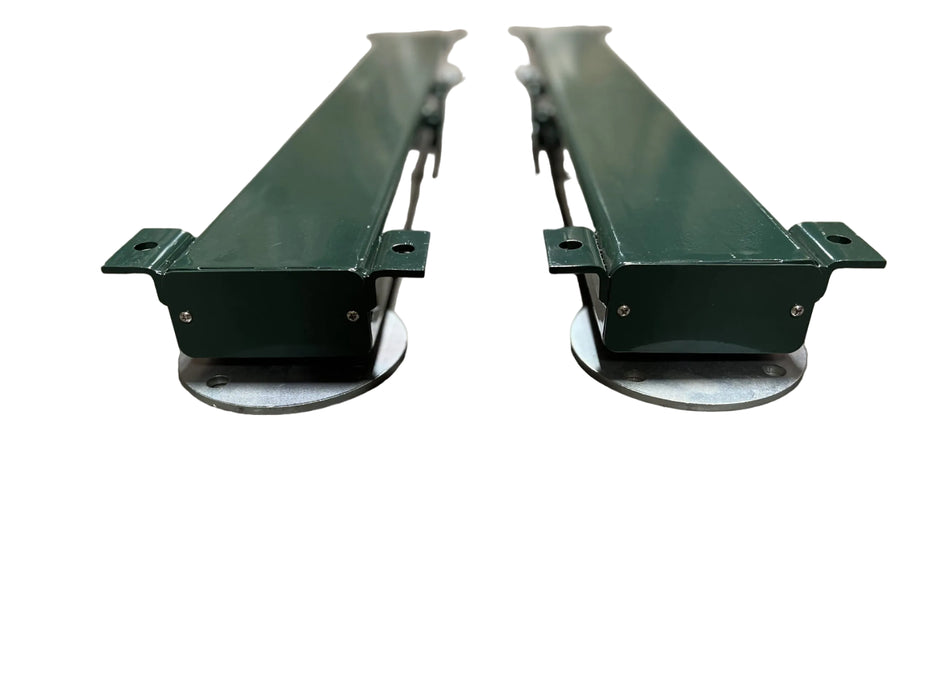

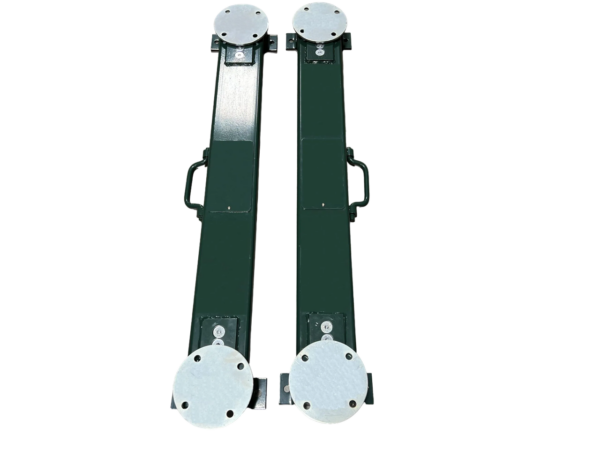

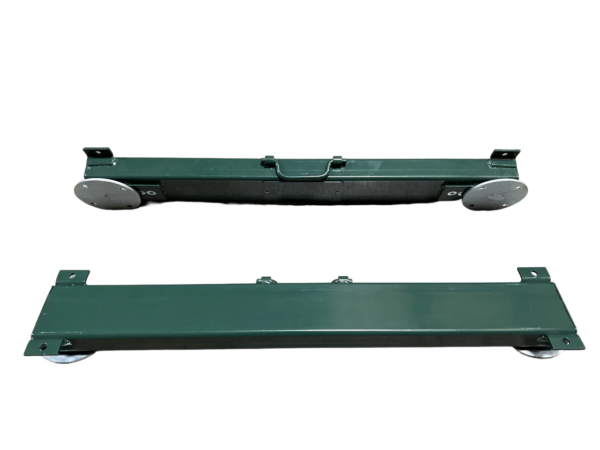

• (2) 40″x4″ Carbon Steel Weigh Bars
• (4) Shear Beam Alloy Steel Load Cells
• (4) Adjustable Leveling Feet

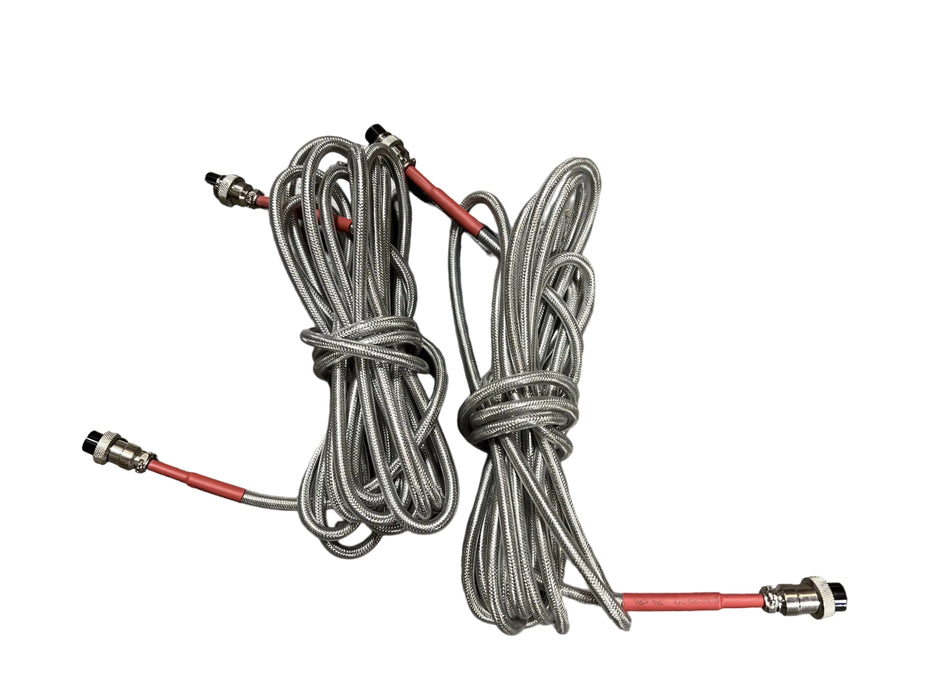

• (2) 15′ Steel Braided Home Run Braided Cable
• (1) Stainless Steel Mounting Bracket
• (1) US-6011SS LCD Indicator
• (1) 110V Power Adapter
• (1) User Manual

Common Applications:

• Mounted Under Squeeze Chutes
• Attach a Platform to the Top of the Scale
• Weighing: pigs, goats, sheep, steers, cows, cattle
• Weighing Pallets, Containers, Drums, & Odd Size Items
• Great for Portable Applications & Weighing on the go
