Optima Scale OP-919 Weigh Beam System For Industrial Weighing - Northline Scale

Optima Scale OP-919 Weigh Beam System For Industrial Weighing

by Optima Scale

$895.00 - $1,795.00

$895.00

$895.00 - $1,795.00

$895.00

Quantity

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Dealer

✔ Call Us: +1 (941) 257-3293

✔ Ships From USA

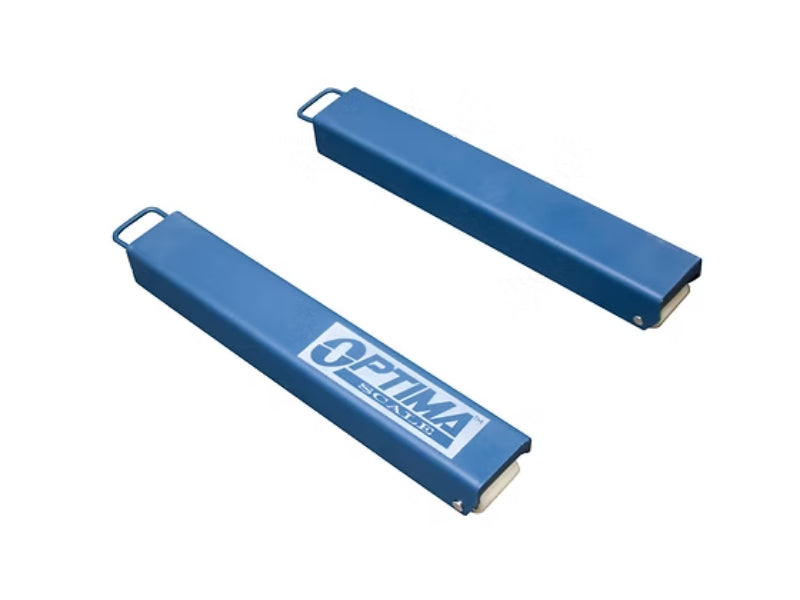

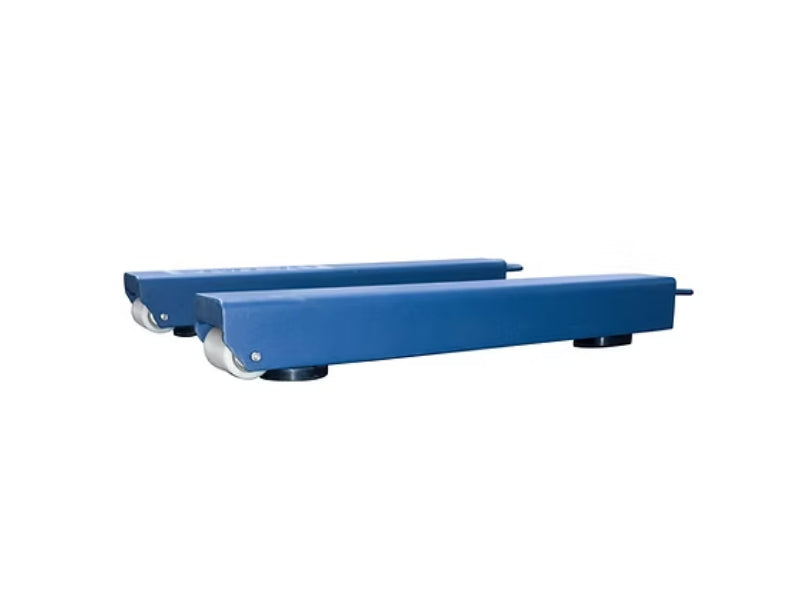

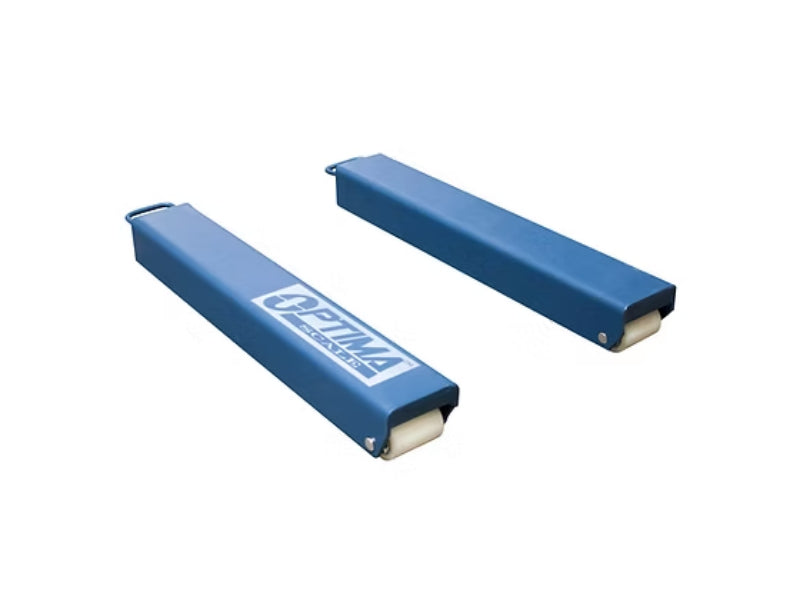

The OP-919 Weigh Beam System is a robust and highly versatile weighing solution designed for heavy-duty industrial and commercial applications. Unlike traditional single-platform scales, it consists of two independent, portable "weigh beams" that can be positioned at varying distances to accommodate objects of almost any length or shape.

FEATURES

Portable, heavy duty carbon steel weighing beam system
Use for applications like cages for animals, silos, milk tanks, platforms, small boats and storage containers
Includes indicator with lb/kg selectable, rechargeable battery andauto hold
INTEP 6 digit, 1” display indicator with steel housing
Built-in RS-232 communication port
Integrated wheels and handles (No wheels on 60" option)
Easy installation
Sold as a set
Factory Calibrated
Overload Protection
1 year warranty on parts

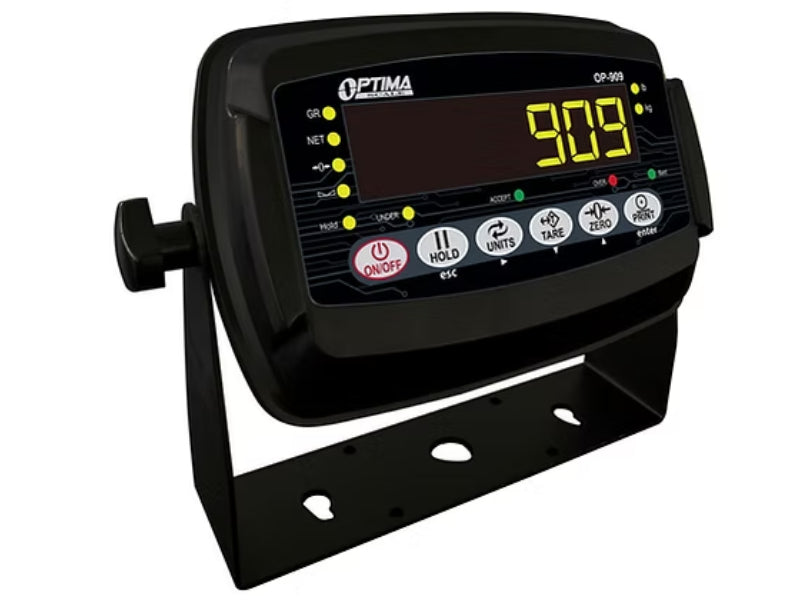

INDICATOR FEATURES

OP-909 indicator with LED display
1" Tall backlit display
Rechargeable battery (up to 40 hrs)
Plastic casing (Stainless steel or washdown upgradeable)
AC adapter included
Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
Gross/Tare/Pre-Set Tare/Zero
Multiple Hold functions
Count weighing
Accumulation weighing
Overload / Underload alarm
Splash proof keyboard and display
Connects to a remote display and printer
Displays up to 50,000 graduations
Full Duplex RS-232 Serial Port

SPECIFICATIONS

Material: Plastic
Overload Protection: 200%
Power: AC/DC, built-in rechargeable battery (72 hrs)
Capacity: 5,000 lbs - 20,000 lbs
Height: 3.7 in
Cable Length: 20 ft
Warranty: 1 year limited warranty on electronics / 2 year limited warranty on platform

Model	Capacity	Beam Size	Height
OP-919-24-5k	5,000 lbs x 1 lb	24”[L] x 4” [W]	3.7”
OP-919-40-5k	5,000 lbs x 1 lb	40”[L] x 4” [W]	3.7”
OP-919-48-5k	5,000 lbs x 1 lb	48”[L] x 4” [W]	3.7”
OP-919-48-10k	10,000 lbs x 2 lbs	48”[L] x 5” [W]	4”
OP-919-60-20k	20,000 lbs x 2 lbs	60”[L] x 5” [W]	4”

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Optima Scales U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Compare available configurations

Compare configurations and prices below. Select a configuration to view that option above before adding it to your cart.

Configuration	Price	Select configuration
24”[L] x 4” [W]	$895.00	Select
40”[L] x 4” [W]	$995.00	Select
48”[L] x 4” [W]	$1,095.00	Select
48”[L] x 5” [W]	$1,195.00	Select
60”[L] x 5” [W]	$1,795.00	Select

Need help choosing the right configuration?

Tell us what you are weighing, the required capacity and accuracy, and how the scale will be installed. We can help narrow the options before you order.

Call (941) 257-3293 Email product support
