Intercomp PT300DW™ Wheel Load Scale System (System Includes Scales, Case, HH60 Indicator and Charging Cable)

Intercomp PT300DW™ Wheel Load Scale System (System Includes Scales, Case, HH60 Indicator and Charging Cable)

by Intercomp
$6,399.00 - $15,999.00
$6,699.00
$6,399.00 - $15,999.00
$6,699.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

The Intercomp PT300DW™ Wireless Solar Wheel Load Scale System delivers a complete, self-contained weighing solution designed for maximum capacity and reliability. This system includes PT300DW scales, a durable carrying case, an HH60 wireless indicator, and a charging cable—everything needed for efficient field use. With a 40,000 lb (20,000 kg) capacity per pad, RFX® Wireless Weighing, solar charging panels, and IP67 protection, these rugged portable wheel load scales ensure accurate, maintenance-free performance for heavy-duty transport and industrial weighing applications.


FEATURES

    • IP67 Protection – Fully sealed for superior resistance to dust, water, and harsh outdoor environments.
    • Heavy-Duty Capacity – Handles up to 40,000 lb (20,000 kg) per pad, perfect for dual or super-single tire configurations.
    • Large Backlit LCD Display – Provides clear, easy-to-read data even in low-light environments.
    • Rugged Aluminum Construction – Built tough to endure heavy use on unimproved or uneven surfaces.
    • Rechargeable AA NiMH Batteries (4 per scale) – Long-lasting, eco-friendly power source for frequent field operations.
    • Solar-Powered Efficiency – Offers up to one year of battery life with daylight use (up to 250 hours without solar input).
    • Integrated Indicator with Simple Push-Button Controls – Includes On/Off, Local/Total, Zero, and Print/Accum for quick, intuitive operation.

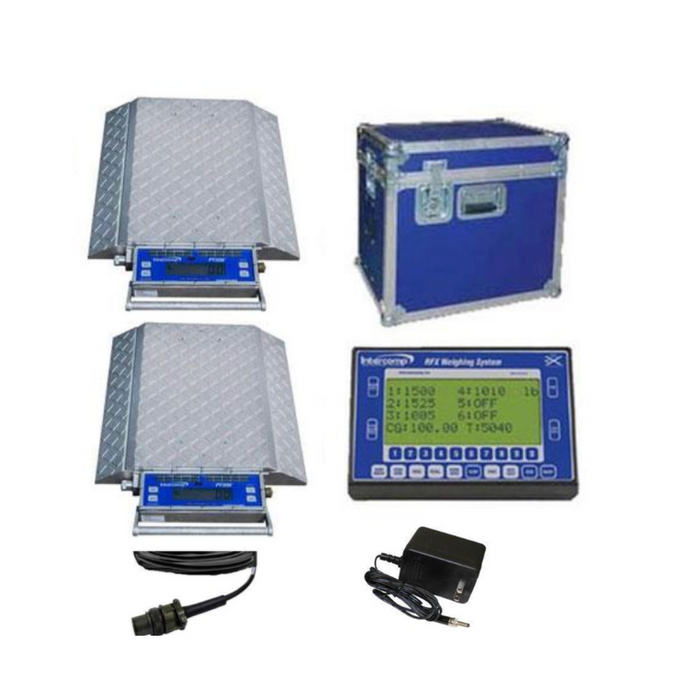

    • Complete System Package – Comes with scales, carrying case, HH60 wireless indicator, and charging cable for total portability and convenience.



    SPECIFICATION

    PT300DW Scale Systems (System Includes Scales, Case, HH60 Indicator and Charging Cable)

    MODEL NUMBER

    DESCRIPTION

    CAPACITY/GRADUATION

    181521-RFX

    PT300DW WIRELESS SOLAR WHEEL LOAD 2 SCALE SYSTEM (20K X 10)

    40,000 x 10 LB (20,000 x 5 KG)

    181520-RFX

    PT300DW WIRELESS SOLAR WHEEL LOAD 2 SCALE SYSTEM (20K X 20)

    40,000 x 20 LB (20,000 x 10 KG)

    181541-RFX

    PT300DW WIRELESS SOLAR WHEEL LOAD 4 SCALE SYSTEM (20K X 10)

    80,000 x 10 LB (40,000 x 5 KG)

    181540-RFX

    PT300DW WIRELESS SOLAR WHEEL LOAD 4 SCALE SYSTEM (20K X 20)

    80,000 x 20 LB (40,000 x 10 KG)

    181561-RFX

    PT300DW WIRELESS SOLAR WHEEL LOAD 6 SCALE SYSTEM (20K X 10)

    120,000 x 10 LB (60,000 x 5 KG)

    181560-RFX

    PT300DW WIRELESS SOLAR WHEEL LOAD 6 SCALE SYSTEM (20K X 20)

    120,000 x 20 LB (60,000 x 10 KG)



    PT300DW SCALE ACCESSORIES

    • Carrying Case
    • Ramp
    • Dummy Pad
    • Charger
    • Battery Stick (4) AA NiMH
    • Certificate of Calibration



    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
