US-WIM3113 Speed Weigh In Motion Truck Scale For Industrial Weighing

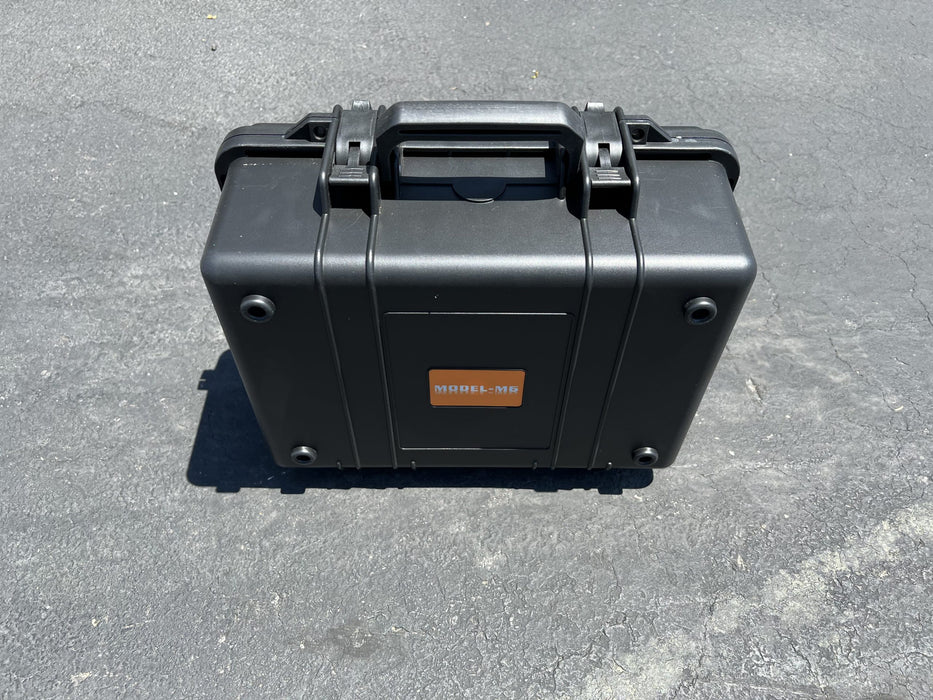

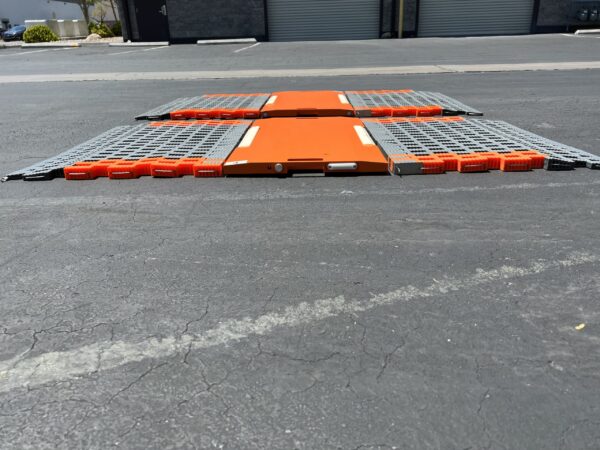

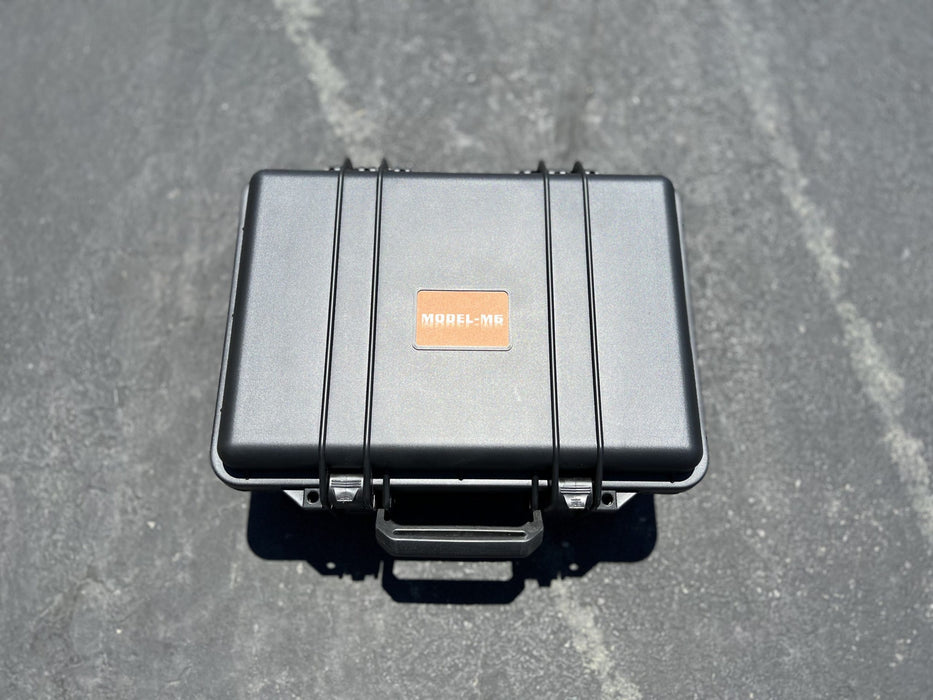

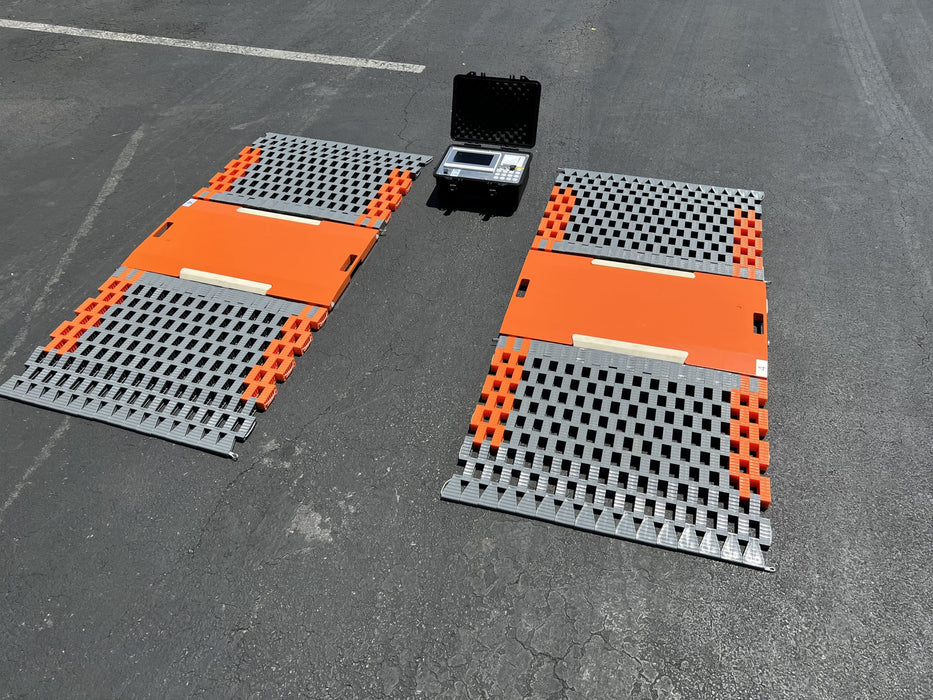

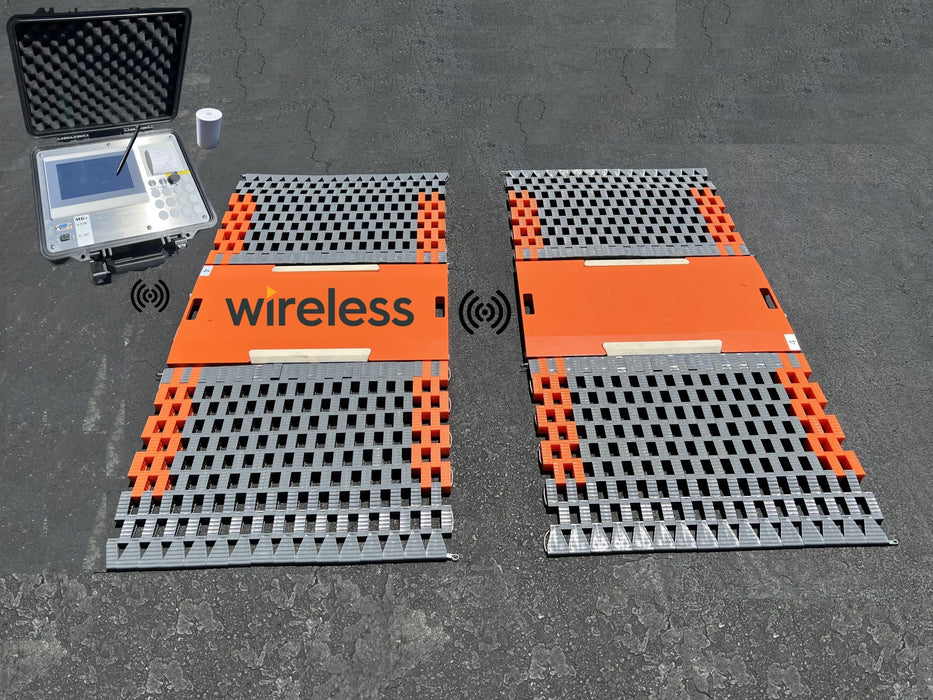

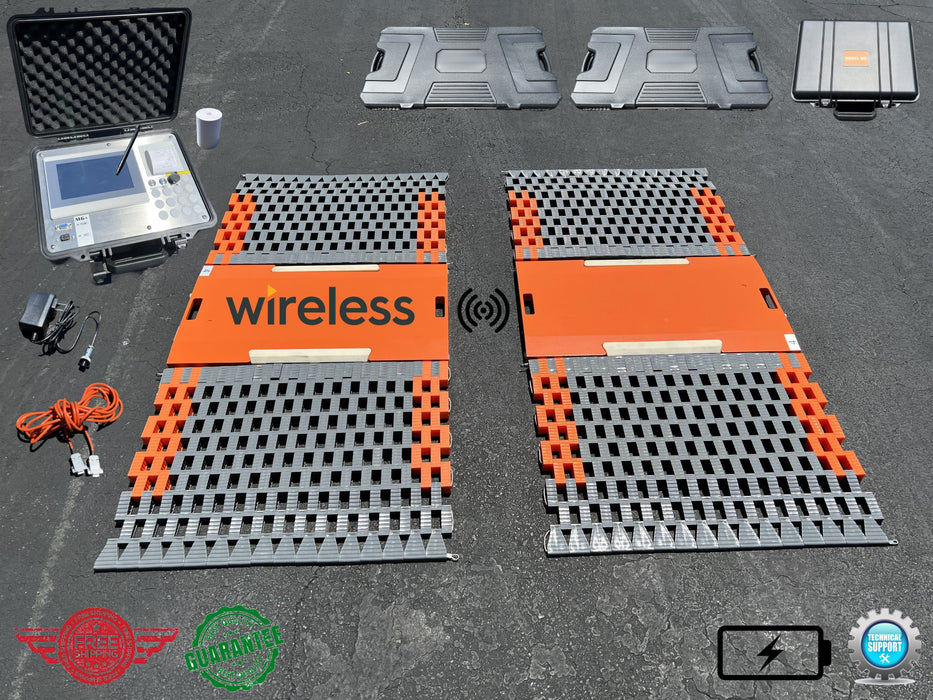

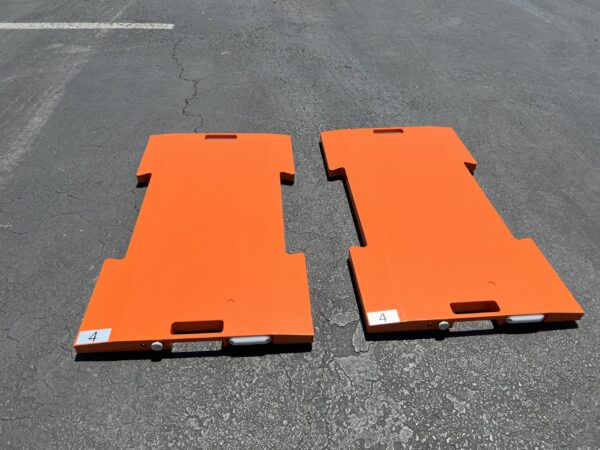

USA Measurements US-WIM3113-80K Speed Weigh heavy duty  axle truck scale for high traffic use. Quickly drive across our in motion Axle scale to get an accurate weight,each axle, and gross weight. The US-M6 weighing indicator can be automatically set-up to print a receipt once you drive across the scale. The US-M6 can assign truck ID numbers and store truck weighing information.  Our US-WIM3113 features a low profile 0.8″ Height with a 31″ x 13″ Pad size. Included is ramps and US-M6 indicator with carrying case. Great for portable applications.

FEATURES

• Aluminum alloy steel material

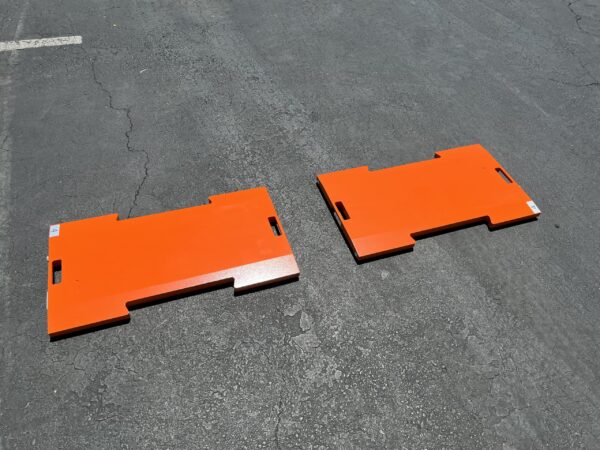

• Pad Size: 31.5″” x 13.78 x 0.87″

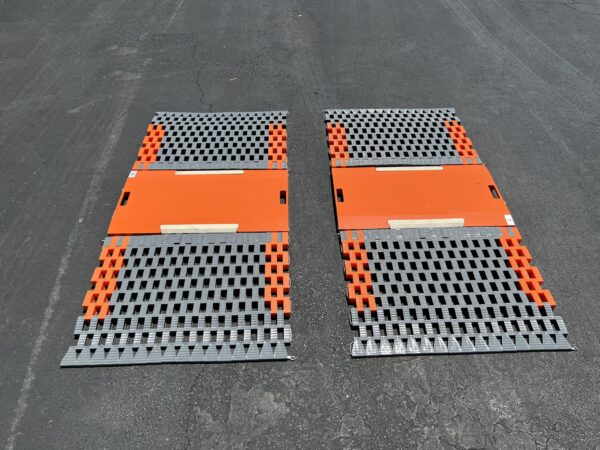

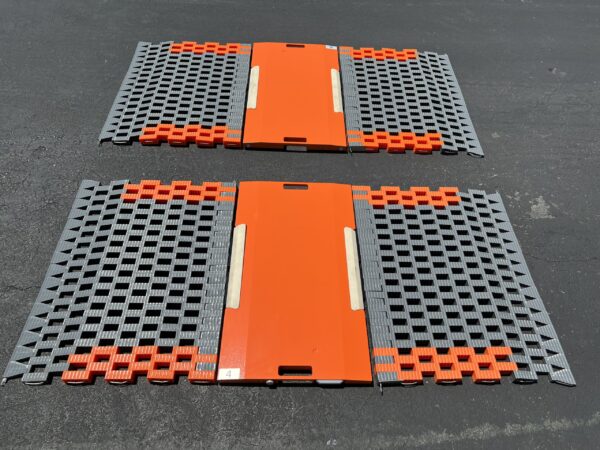

• Ramp size: 31.5″ x 36″
• 80,000 lb Capacity for 2 pads

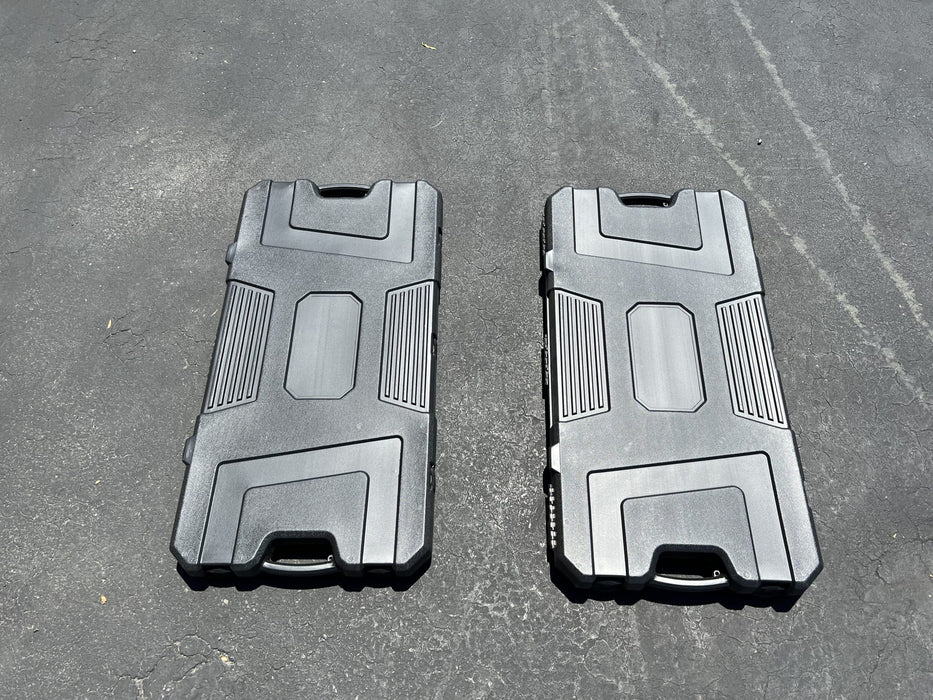

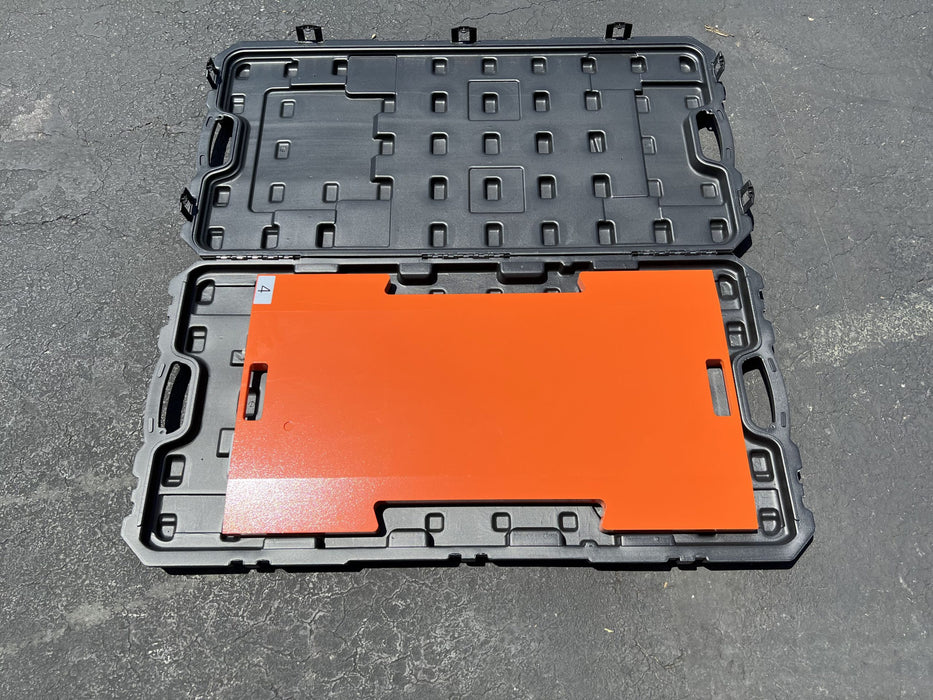

• Portable with Carrying Handles
• Sealed and protected for normal working environment

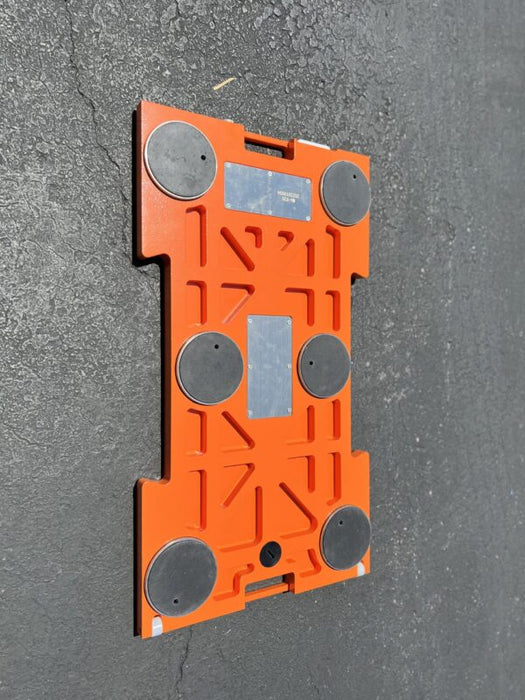

• Load cell based with high Weighing In-Motion accuracy
• OIML Standard
• Static Weighing Mode
• Wide pads to weigh single or dual tires
• 120% overload protection
• Built-in Cable protector
• Built-in anti-electromagnetic interference to make sure weighing result will not be influenced
• Built-in auto compensation system to compensate weighing error on double joint axle or triple joint axle
• Accuracy In-motion: 5-7%
• Accuracy Static weighing: 1-2%
• 1 Year Manufacturer Warranty
• Non-NTEP (Not Legal for Trade)

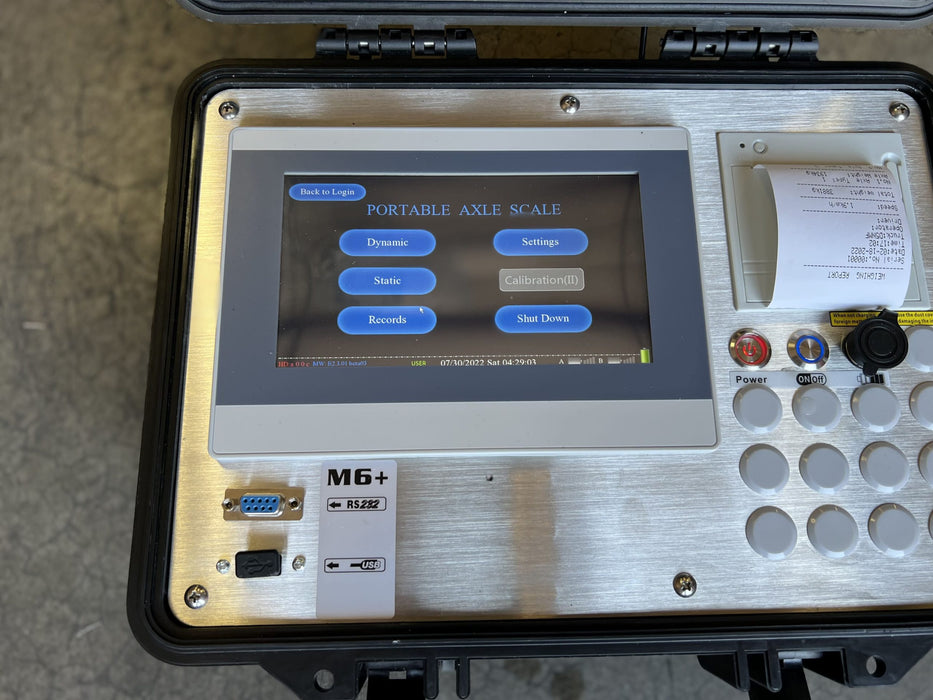

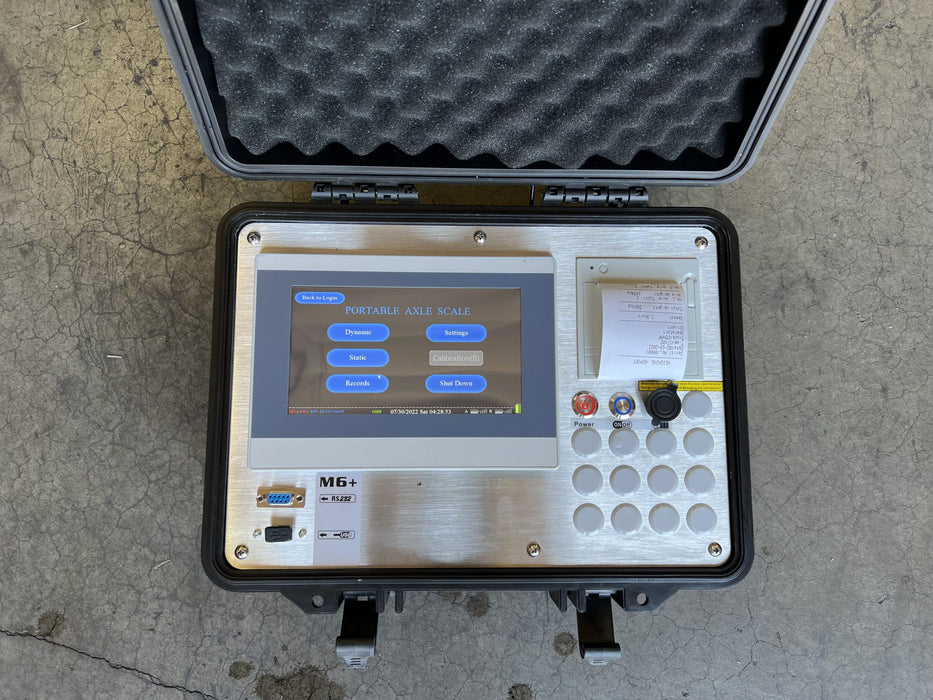

US-M6 INDICATOR FEATURES

• Static weighing Mode
• In Motion Weighing Mode

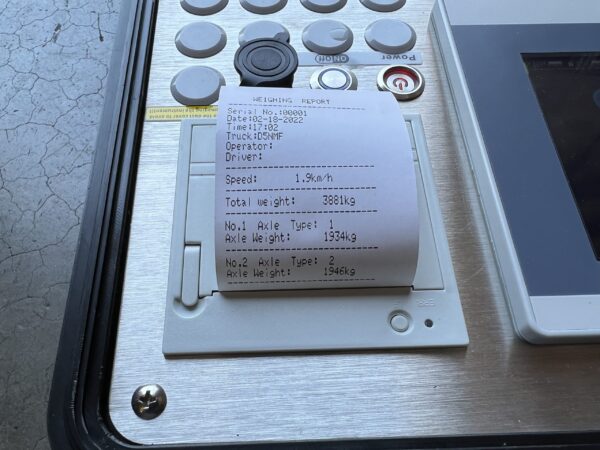

• Receipt Printer (Single Ply Paper)
• High Definition Touch Screen
• 40 Hour Battery Life
• Stores Records for Weights
• Windows CE 6.0 System
• 4GB Internal Memory

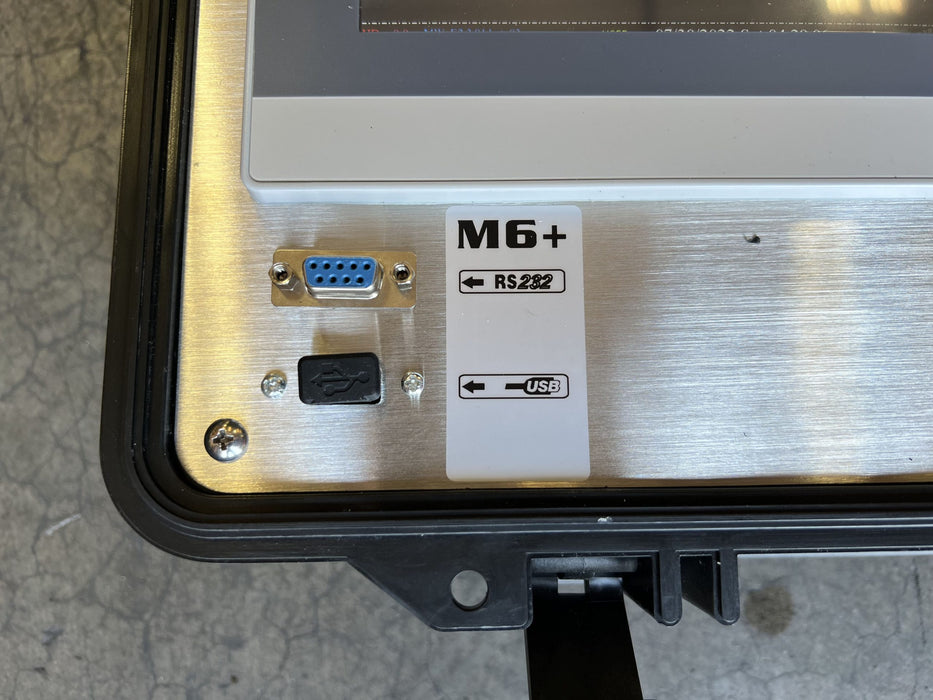

• RS232 Port and USB 2.0 Output
• Excel file, text file, or database file output

US-M6 INDICATOR SPECIFICATIONS

• Full-scale temperature coefficient: 5ppm/°C
• Sampling speed: 200times/sec
• The speed of display renewal: 12.5times/sec
• System non-linearity <0.01%
• Impulse source of sensor: DC 5V±2%
• Operating temperature range: 0°C–40°C
• Power supply sink (without the sensor): 70mA
• No printing and no back lightin, 1000mA (printing)

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
