TXI-500F Wheel Weigher Indicator

TXI-500F Wheel Weigher Indicator

by USA Measurements
$1,699.00 - $1,699.00
$1,699.00
$1,699.00 - $1,699.00
$1,699.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

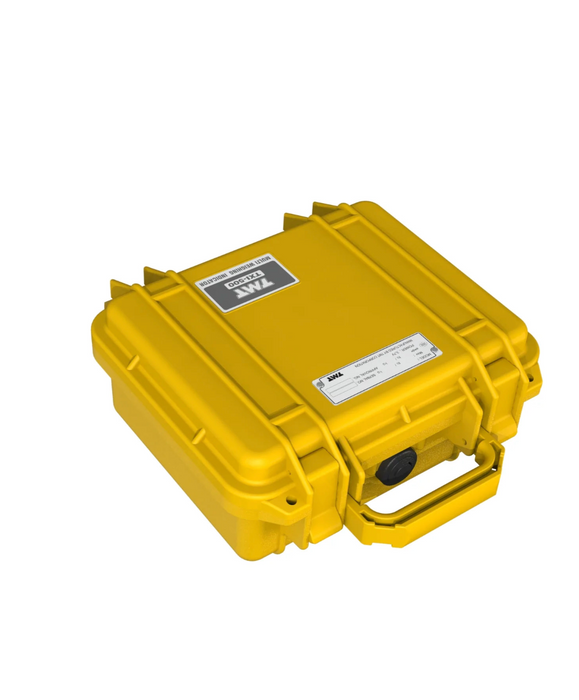

Prime USA Scales wireless TXI-500F smart wireless indicator for the TXDi wheel weighers. Our TXI-500F works with: TXDi-505FN, TXDi-710FN, TXDi-715FN, TXDi-910FN, & TXDi-915FN. This indicator can work with up to (16) different weighing pads at one time. This allows the user to see the weight wireless from the cab, inside the office, or easily carry around to different job locations. The built in rechargeable battery has a 50 hour battery life and built in receipt printer to track the weight, date, and time. The TXI-500F also have a built in memory that can track up to 10,000 vehicles.

FEATURES

  • Used with TXDi-F Platform
  • Connects up to 16 Wireless Platforms Simultaneously

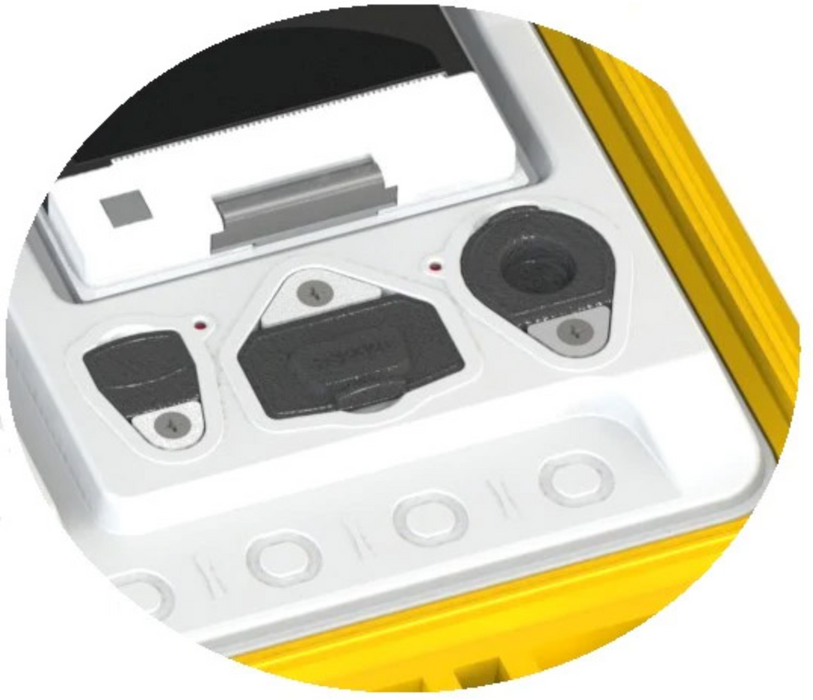

  • Built-In Thermal Printer
  • Memory For Up To 10K Vehicles
  • IP66 Rated
  • USB & RS-232C Ports Included
  • Zigbee Wireless Capabilities
  • LCD Display with Backlight
  • Use an off the shelf USB memory stick to transfer vehicle report data in CSV format



SPECIFICATIONS

  • Models: TXI-500F Series
  • Platform connection: Up to 16 platforms
  • Display Type: LCD(Liquid Crystal Display)
  • Power: DC Adapter, Rechargeable Battery 6V (Included)
  • Battery Life: 150Hrs(no backlight)
  • Operating temperature (℉/℃): -4 ~ 140/-20 ~ +60
  • Printer: Direct line to thermal printer/Paper Size : Ф40 x 57mm
  • Dimensions (in/mm) (W x D x H): 10.7 x 9.7 x 4.9/272 x 247 x 125
  • Product Weight (lbs/kg): 9.9/4.5
  • Ship Weight (lbs/kg): 12/5.4

RESOURCES

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
