TXDi-915FN Wheel Weigher 30,000 lb x 20 lb Scale

TXDi-915FN Wheel Weigher 30,000 lb x 20 lb Scale

by USA Measurements
$2,799.00 - $15,999.00
$2,799.00
$2,799.00 - $15,999.00
$2,799.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

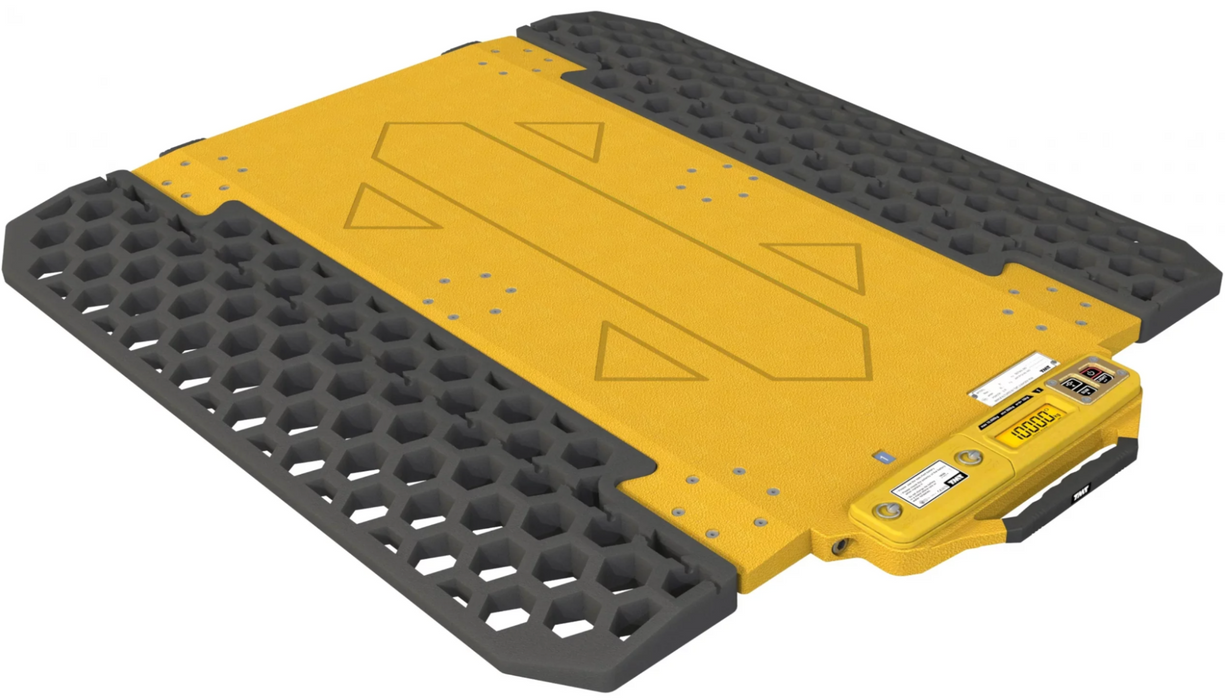

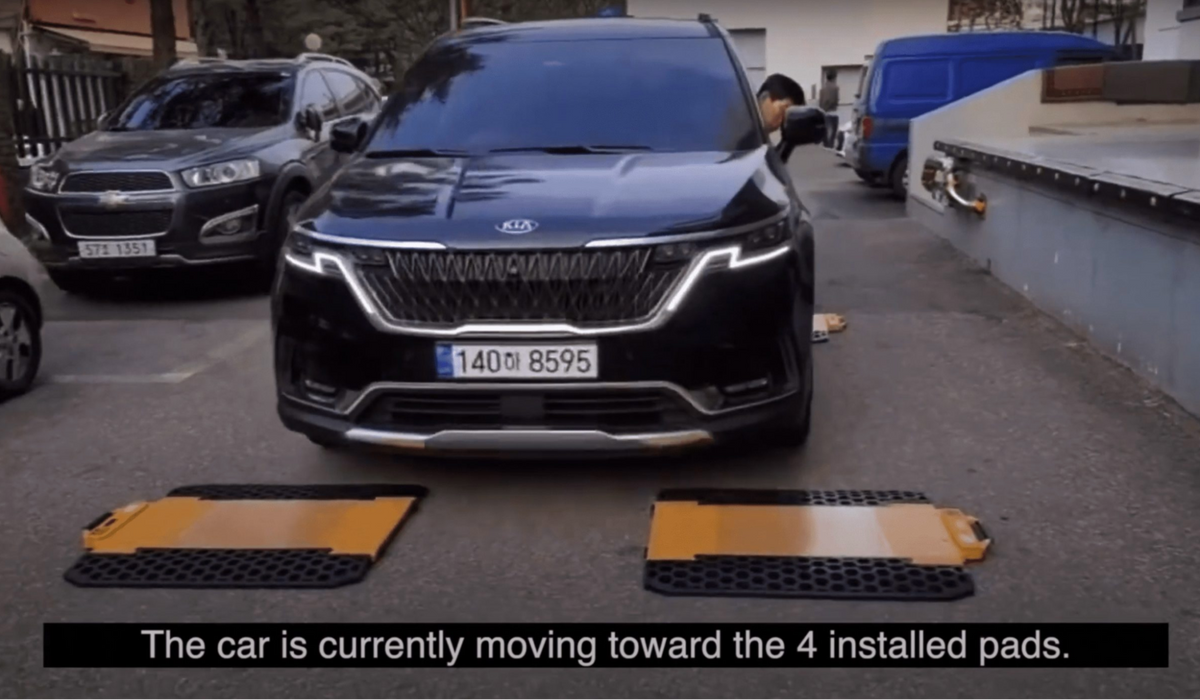

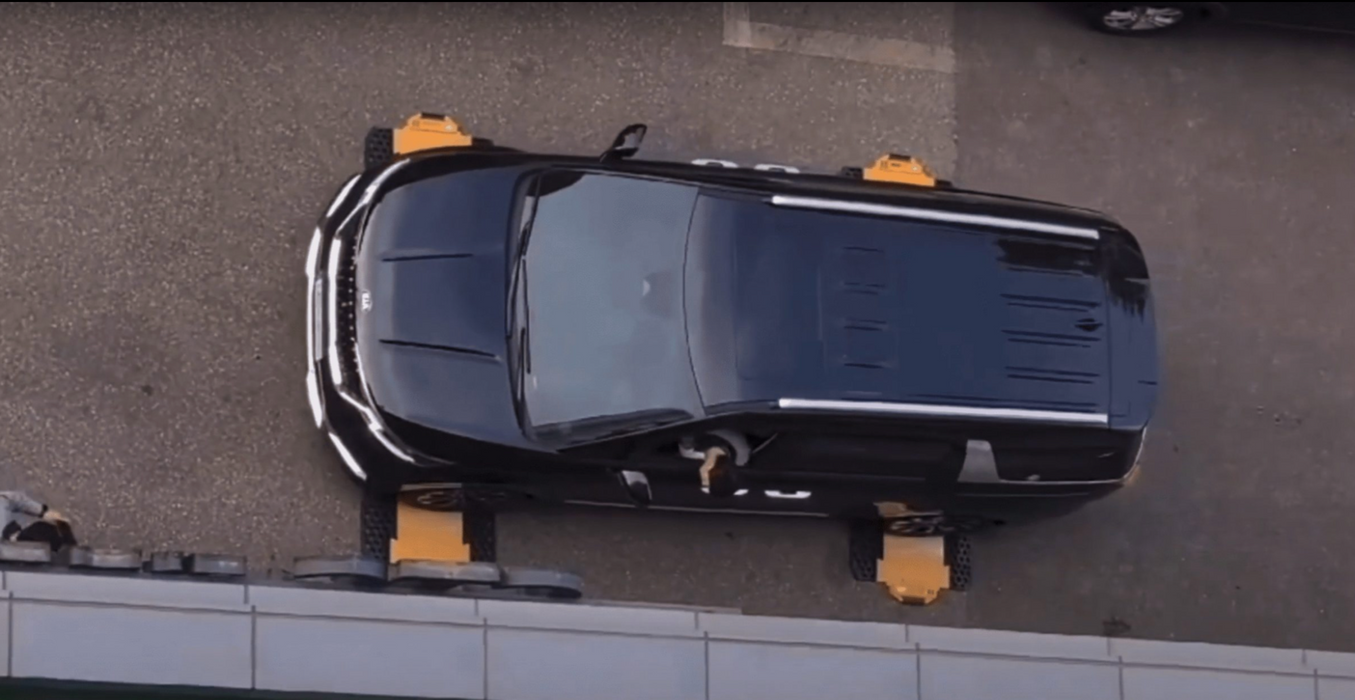

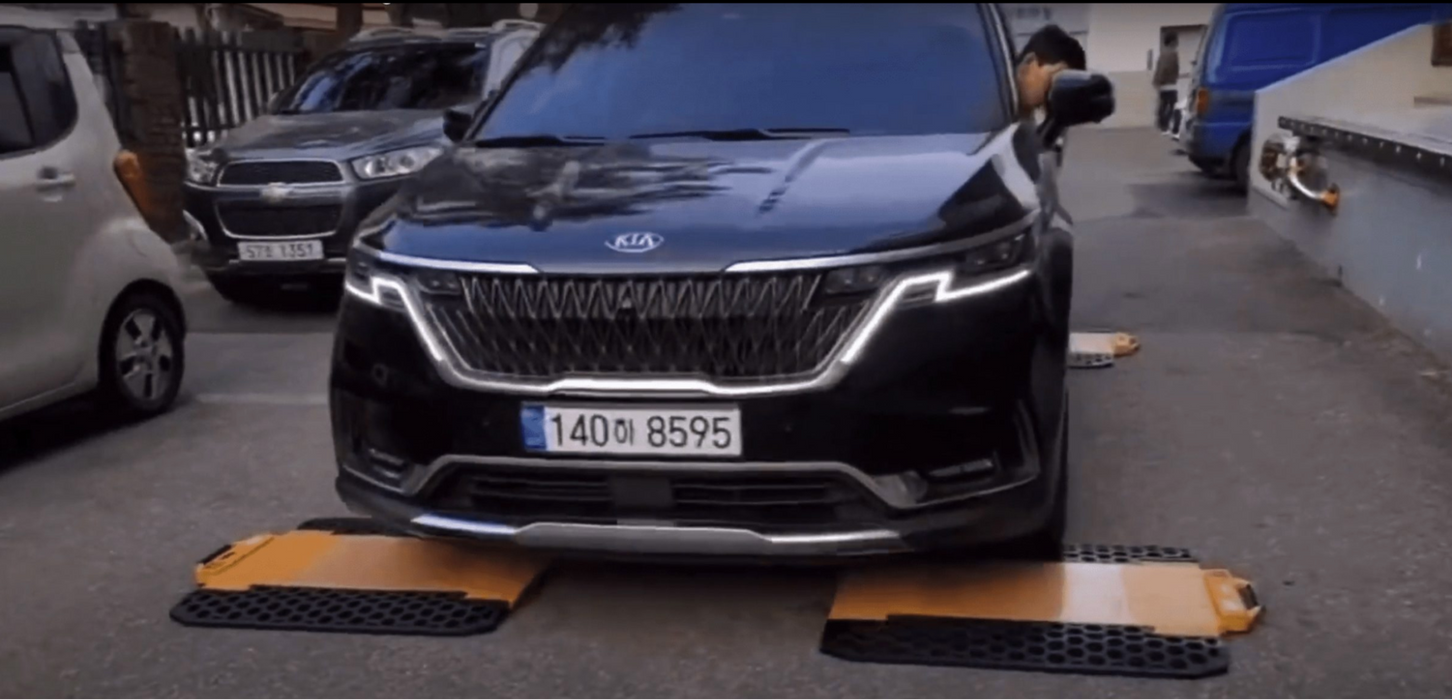

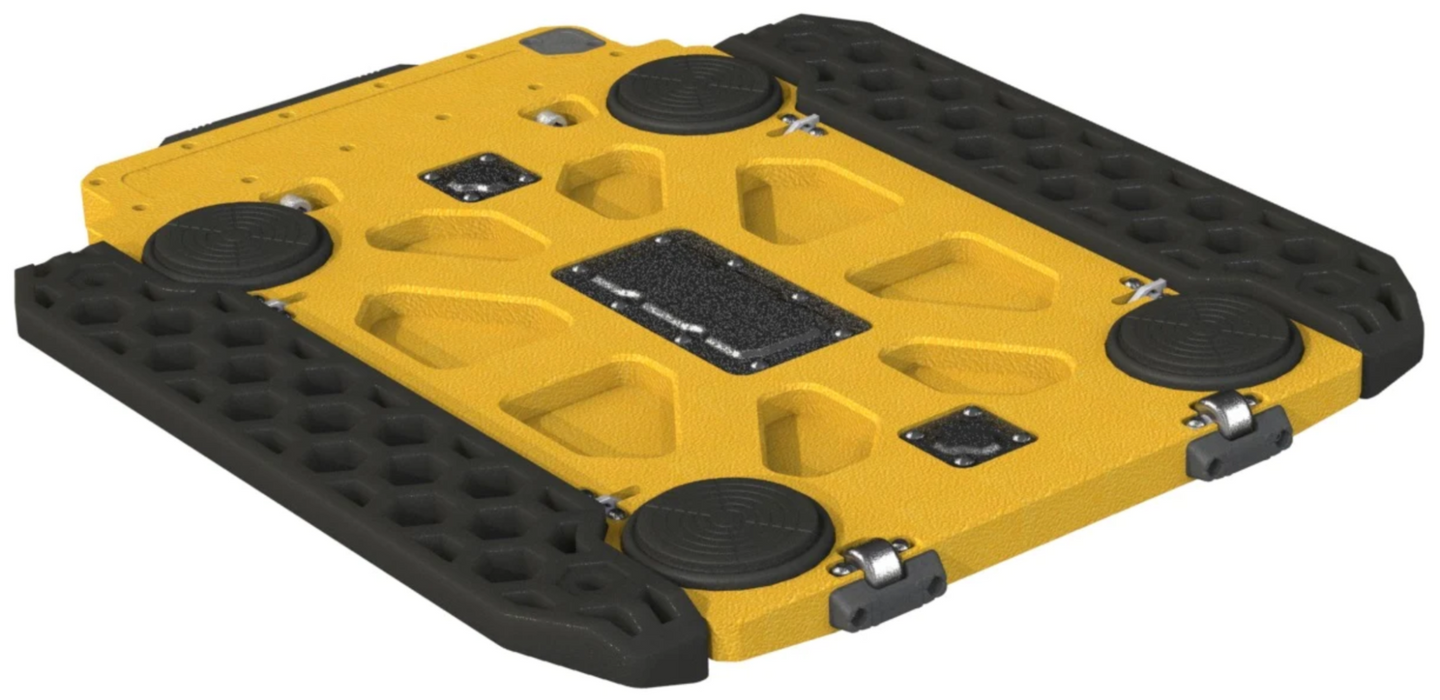

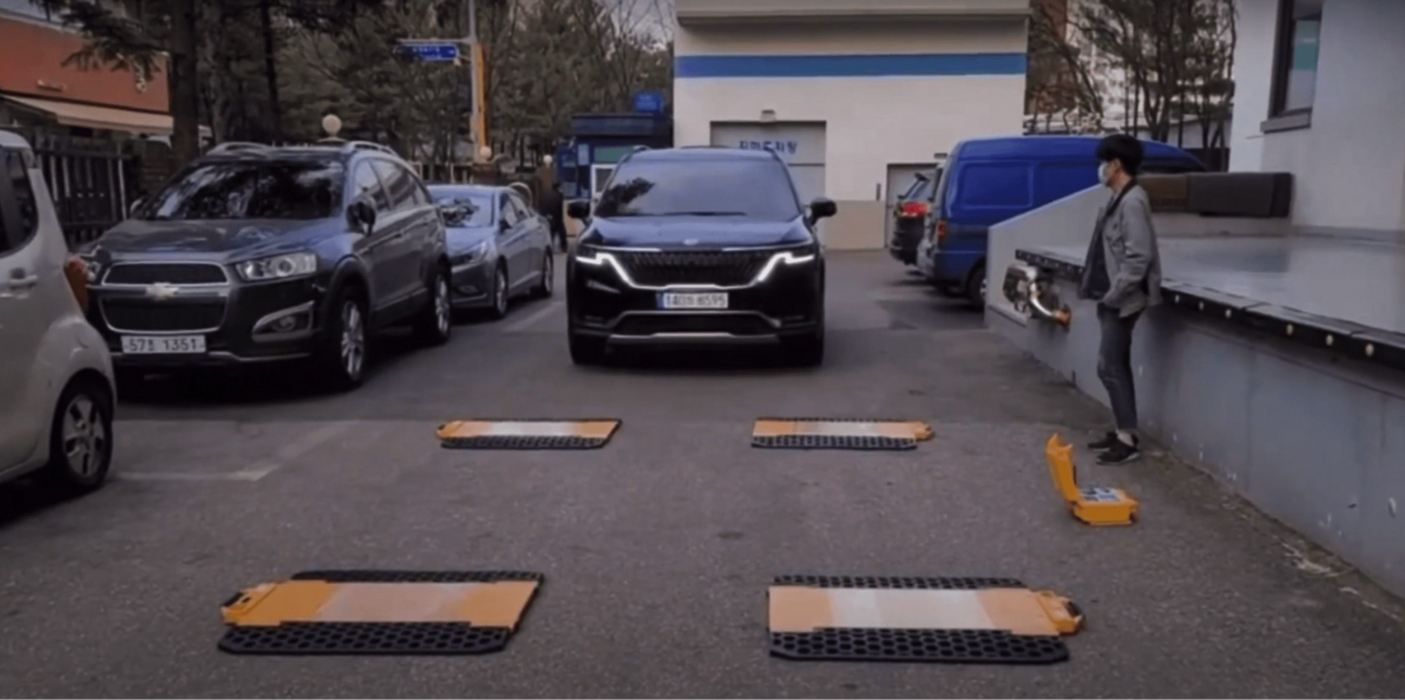

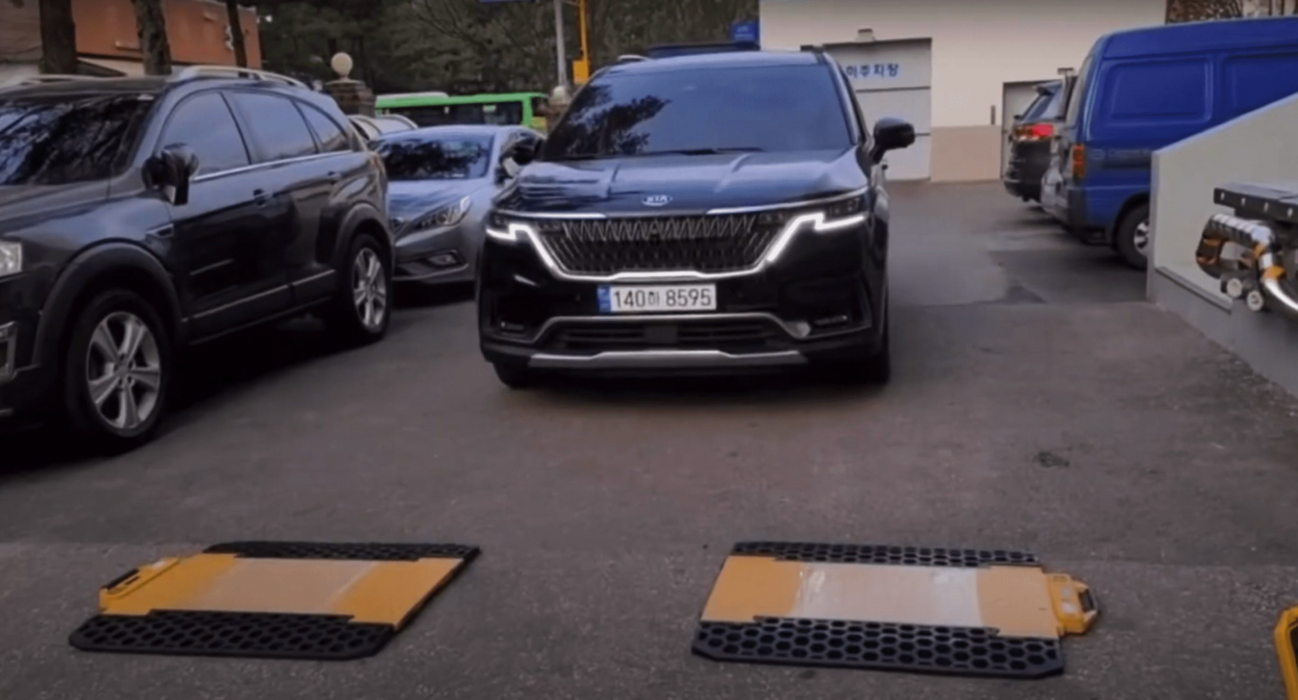

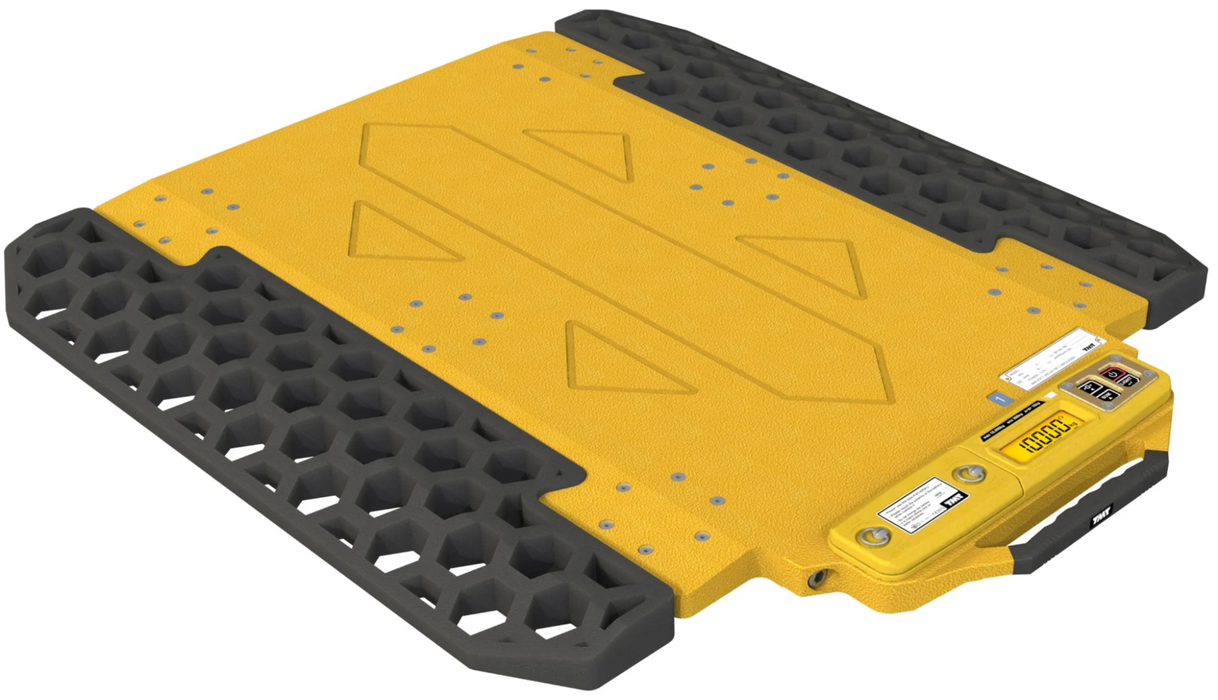

Prime USA Scales TXDi-915FN wireless wheel weigher scale comes in 35″ x 19″ x 1.3″ per pad. Each pad has a capacity of 30,000 lb and a 20 lb readability. This system can be set-up for 1 pad, 2 pads, 3 pads, 4 pads, 5 pads, 6 pads or more. Using our optional TXI-500F wireless display can connect up to 16 pads at one time. Great for weighing RVs, pick-ups, trailers, trucks, dump trucks,  tractor trailers, and many other types of vehicles. The TXDi can be used for static weighing (stop and go) or can be used  for in-motion driving across the scale at 6 mph.

FEATURES

  • 30,000 lb Capacity per pad
  • Portable Wheel Weigher
  • Low Profile Platform Size- Only 1.3 inches / 34 mm High
  • Lightweight Urethane Ramps
  • Includes two Rechargeable 3.7V Lithium Ion Battery (18650)
  • Includes Power Adapter (5V DC)
  • Two Built in Ramped Ends
  • In-Motion and Static Weighing
  • IP67 Rated
  • Zigbee Wireless Capabilities
  • Built-in steel wheels for portability
  • LCD Display with Backlight

TXDi-915FN SPECIFICATIONS

  • Available in 1, 2, 3, 4, 5, or 6 pads
  • Capacity & Readability (lb): 30,000lb/20lb
  • Capacity & Readability (kg): 15,000kg/10kg
  • Resolution: 1/1,500
  • Display type: LCD (Liquid Crystal Display)
  • Keypad: On/off, Zero, Sum, Backlight
  • In-Motion Speed: Up to 6 miles per hour / 10 kilometers per hour

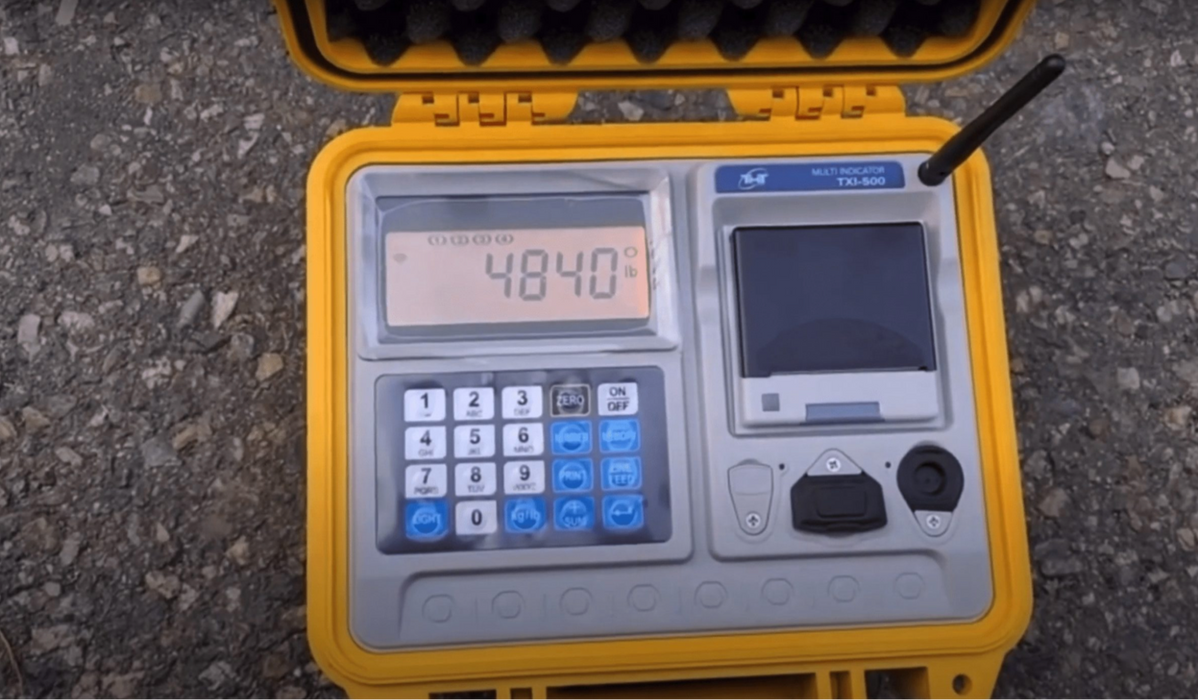

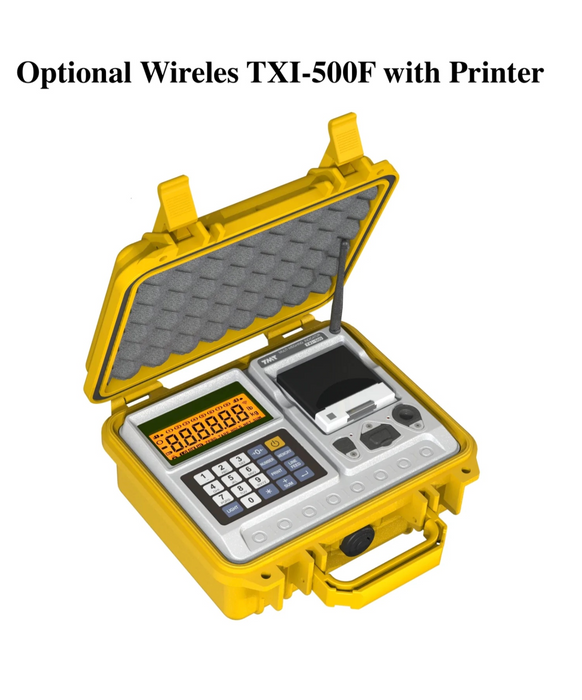

  • Operating Distance: TXI-500F Wireless Indicator – Approx 40 m / 131 ft
  • Safe Overload: 150% of rated capacity
  • Operating temperature (℉/℃): 14F ~ 104 / -10 ~ 40
  • Power: 3.7V Lithium Ion Battery (18650)
  • Battery Life: 50Hrs (Max. 120Hrs)
  • Platform Dimensions (in/mm) (W x D x H): 35.4 x 19.7 x 1.3/900 x 500 x 34
  • Product Dimensions (in/mm) (W x D x H): 40.4 x 33.1 x 1.3/1025 x 840 x 34
  • Product Weight (lb/kg): 60.2/27.3
  • Ramp Weight (lb/kg): 6.4/2.9
  • Warranty: Two years


FEATURES



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
