TUF-Loader Portable Low Profile Vehicle Scale

TUF-Loader Portable Low Profile Vehicle Scale

by Optima Scale
$14,999.00 - $33,749.00
$14,999.00
$14,999.00 - $33,749.00
$14,999.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

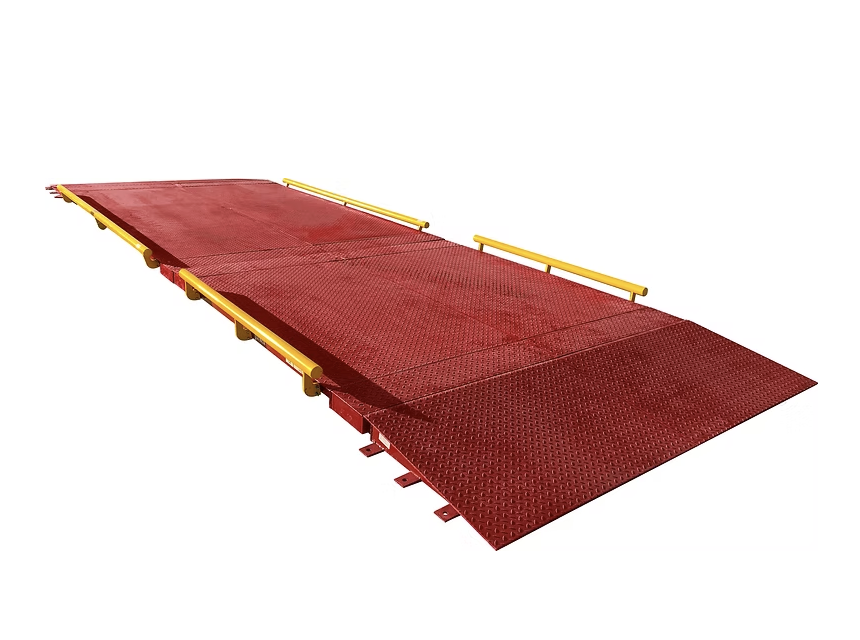

The TUF-Loader Portable Low Profile Vehicle Scale solves that with a 6” low-profile design, extra-large weighing surface, and long ramps for smooth drive-on/off access. Built with a steel diamond tread deck and premium watertight alloy steel load cells with 2.2X overload protection, it delivers accurate, durable performance indoors or outdoors. Its modular construction allows customization with additional panels, making it ideal for container weighing, pit installation, or portable use with ramps. Powder-coated for long-lasting strength, it’s simple to set up, relocate, and depend on.

FEATURES

  • Extra large weighing surface
  • Modular design allows customization with additional panels
  • Low 6' profile and long ramps make it easy to drive on and off
  • Steel diamond tread deck construction for tire grip
  • Four premium watertight alloy steel load cells that have a 2.2X overload protection
  • Set up is simple and allows for easy relocation
  • Can be installed above ground with ramps or in-ground as a pit scale
  • For indoor or outdoor use

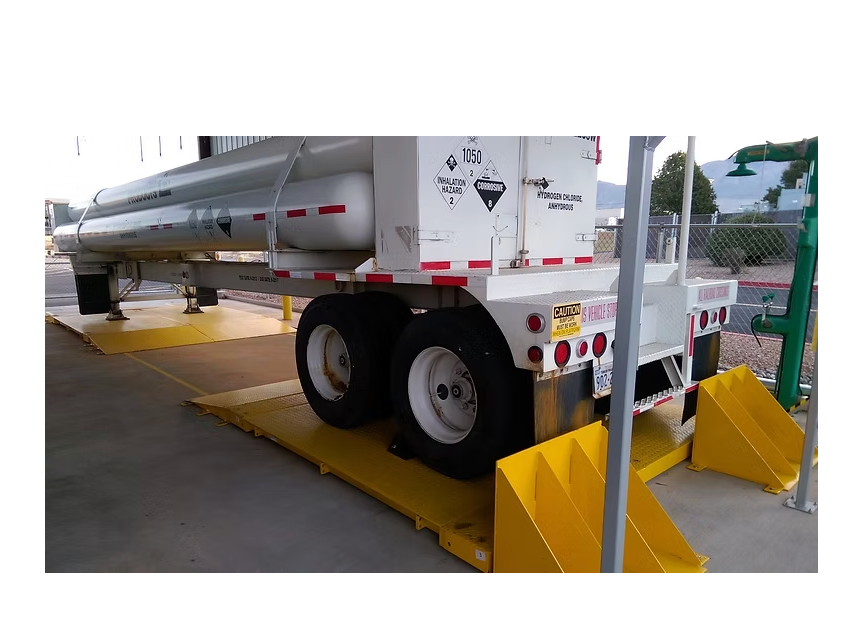

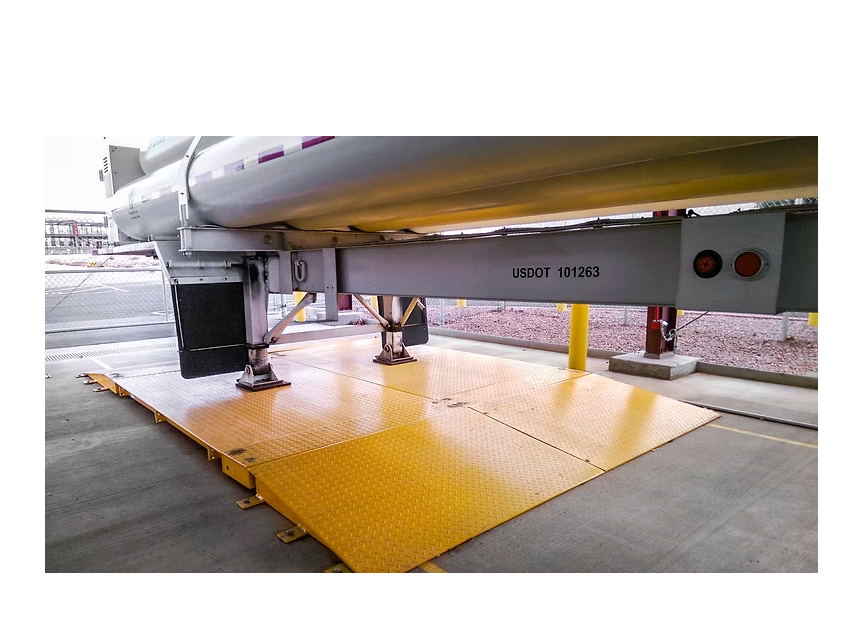

  • Perfect for container weighing
  • Durable powder coat finish

SPECIFICATION

MODEL NUMBER

Capacity

Platform

Ramps

Overall Dimensions

TL-61010

60,000 lb x 10 lb

10’ x 10’

10’ x 40”

118” W x 198” L x 5.75” H

TL-61015

60,000 lb x 10 lb

10’ x 15’

10’ x 40”

118” W x 258” L x 5.75” H

TL-1201020

120,000 lb x 10 lb

10’ x 20’

10’ x 40”

118” W x 316” L x 5.75” H

TL-1201025

150,000 lb x 10 lb

10’ x 25’

10’ x 40”

118” W x 380” L x 5.75” H

TL-1501030

150,000 lb x 10 lb

10’ x 30’

10’ x 40”

118” W x 434” L x 5.75” H



  • MATERIAL: Heavy Duty Steel
  • OVERLOAD PROTECTION: 200%
  • CAPACITY: 60,000 lbs - 150,000 lbs
  • RAMP LENGTH: 3.4 ft (40 in)
  • CABLE LENGTH: 50 ft
  • APPROVAL: NTEP CC: 17-034A1
  • WARRANTY: 5 years on platform
    2 years on electronics

OPTIONS/ ACCESSORIES

  • Stoppers
  • 10ft approaches per NTEP requirement
  • Data logging software
  • Label/Table printer
  • Indicator stand
  • Scoreboard

INCLUDES

  • Platforms
  • 2 ramps (for above ground)
  • Heavy duty metal cable with waterproof protective outer coating
  • 2 side-rails (can be removed for pit installations)

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
