TUF-AX Axle Scale

TUF-AX Axle Scale

by Optima Scale
$7,499.00 - $18,499.00
$7,499.00
$7,499.00 - $18,499.00
$7,499.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

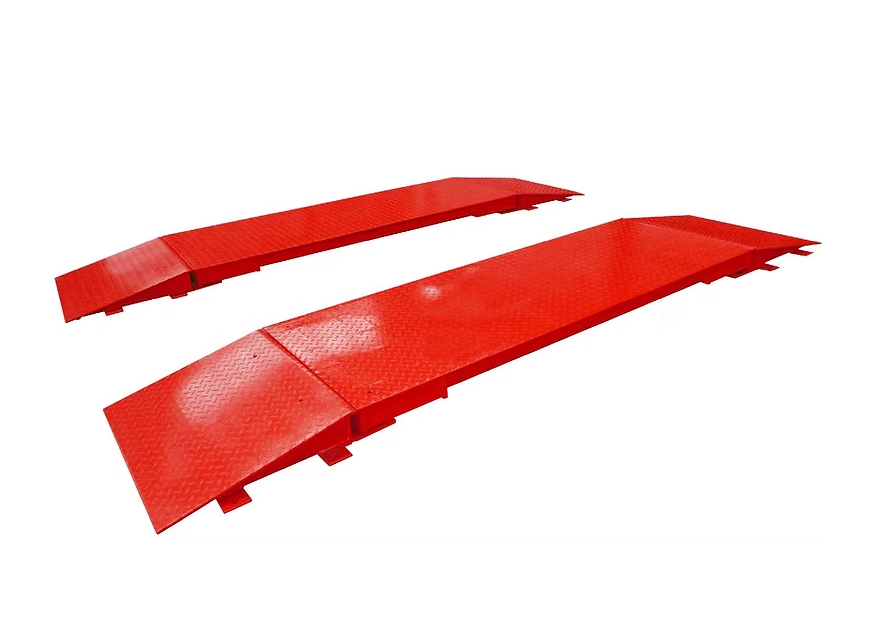

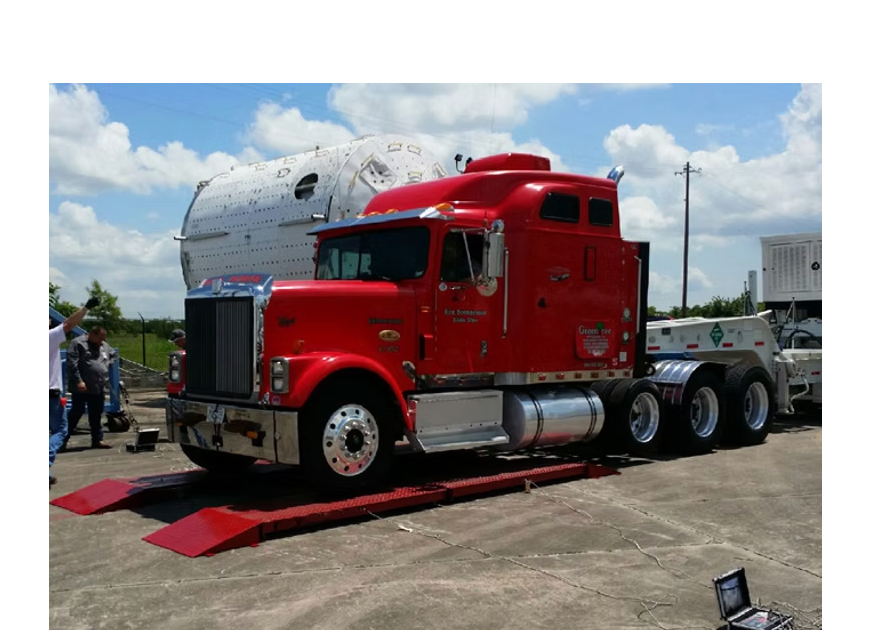

The TUF-AX Axle Scale built with a large weighing surface, low 5.75” profile, and treaded top plate, it allows smooth and secure vehicle weighing for trucks, trailers, and heavy-duty equipment. Featuring four premium watertight alloy steel nickel-plated load cells with overload protection, this axle scale is designed for both permanent pit installations or portable above-ground setups with ramps. Durable, forklift-portable, and powder-coated for longevity, it delivers consistent accuracy even in tough environments.

FEATURES

  • Helps prevent overweight fines and ensures safe optimum loading
  • Large weighing surface and low profile for easy vehicle weighing
  • Heavy-duty durable platform with treaded top plate for tire grip
  • Four premium watertight alloy steel nickel-plated load cells
  • Low profile 5.75” height for smooth drive on/off
  • Load cell capacity is 2.2 times the scale capacity for overload protection
  • 50’ quick connecting cables (2) for hostile environments
  • Can be used with ramps for above ground installations or flush with
    concrete for a pit-installed permanent application
  • Powder coating finish
  • Forklift portable



SPECIFICATION

MODEL NUMBER

Capacity

Platform Length

Overall Dimensions

TAX-607

60,000 lb x 10 lb / 30 ton

7 ft

32” W x 137” L x 5.75” H

TAX-8012

80,000 lb x 10 lb / 40 ton

12 ft

32” W x 194” L x 5.75” H

TAX-8025

80,000 lb x 10 lb / 40 ton

25 ft

32” W x 350” L x 5.75” H



  • MATERIAL: Powder Coated Steel
    (Aluminum plates available)
  • OVERLOAD PROTECTION: 200%
  • INDICATOR: T900 NTEP approved
  • POWER: AC/DC, built-in rechargeable
    battery (100 hrs)
  • CAPACITY:60,000 lbs - 80,000 lbs
  • RAMP LENGTH: 2.1 ft (25 in)
  • WARRANTY: 1 year limited warranty on electronics
    2 year limited warranty on platform

INCLUDES

  • NEMA 4 stainless steel NTEP LCD display
  • Rechargeable battery (up to 100hrs)
  • NEMA 4 stainless steel junction box

OPTIONS

  • Scoreboard
  • Wireless
  • Data logging software
  • Ticket printer
  • Indicator stand

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
