Optima Scale OP-928 Portable Axle Weighing Pads

by Optima Scale

$2,598.00 - $12,482.00

$2,598.00

$2,598.00 - $12,482.00

$2,598.00

Quantity

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Dealer

✔ Call Us: +1 (941) 257-3293

✔ Ships From USA

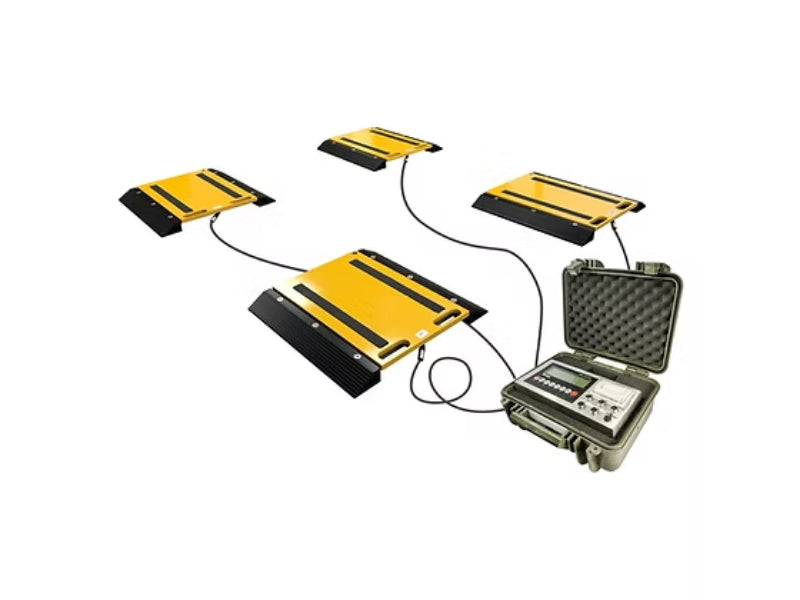

The Optima OP-928 Portable Axle Weighing Pads are designed for industrial applications requiring accurate and portable vehicle weight measurements. These heavy-duty scales are ideal for logistics, transportation, construction, and compliance checks.

FEATURES

Portable, low profile and heavy duty construction

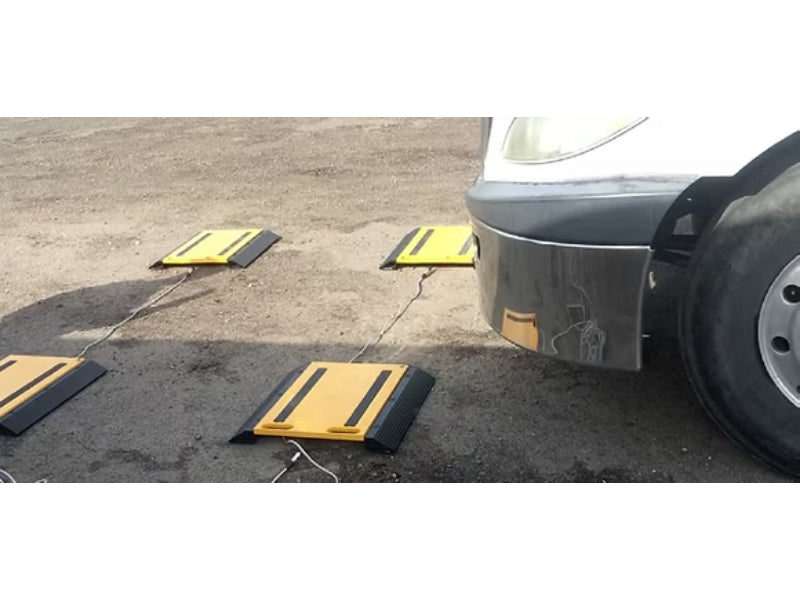

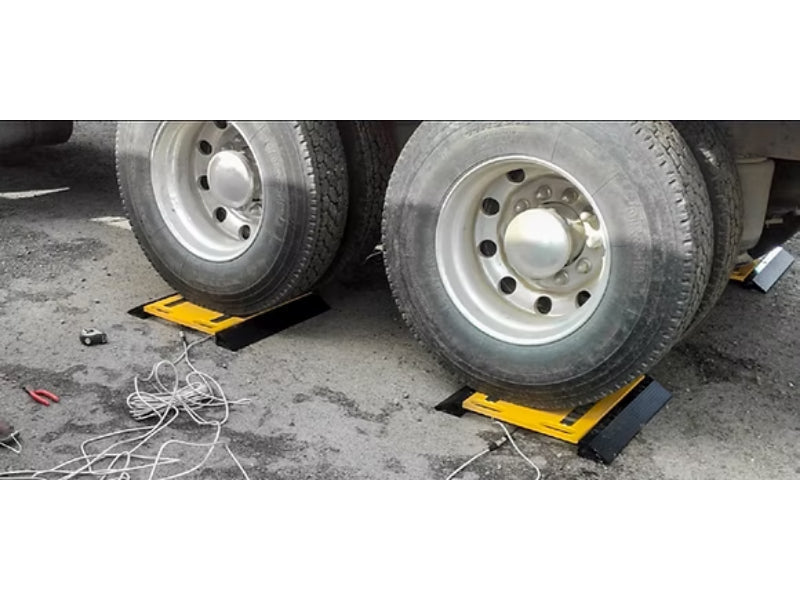

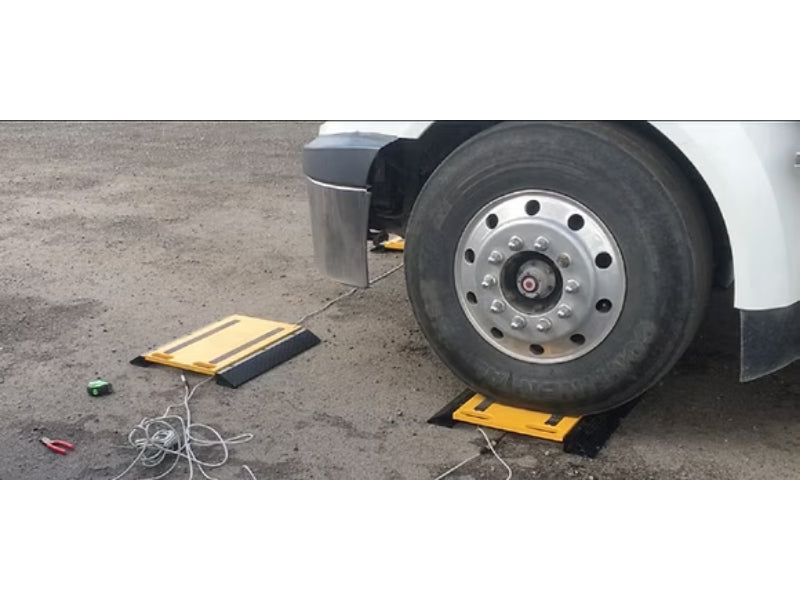

Easily weighs large vehicles such as trucks, vans, tankers and trailers
Interlocking skid resistance ramps
33’ long shielded metal cable
Two handles and two wheels for easy carry and moving
Easy to use; driver can operator and weigh single-handedly
Includes indicator suitcase for protection and portability

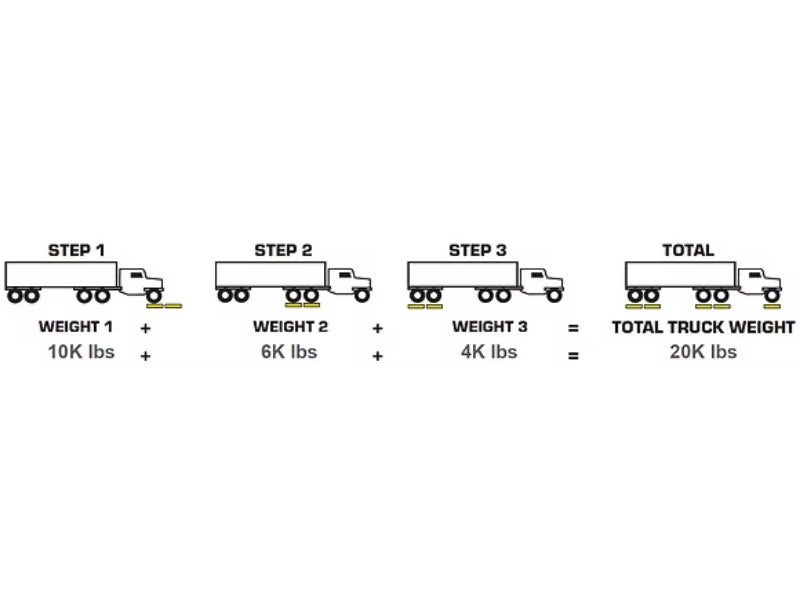

Built-in printer that prints weight of each axle andaccumulates total with time and date
Larger options/high capacities available

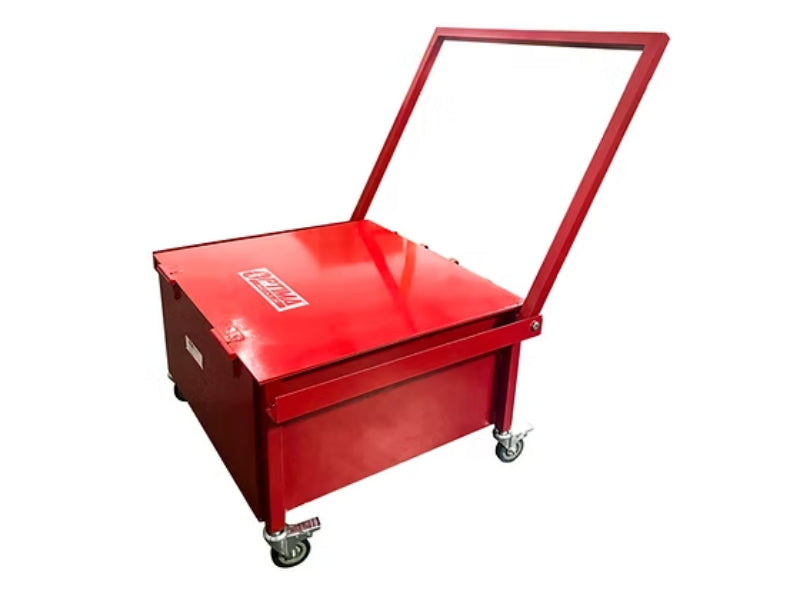

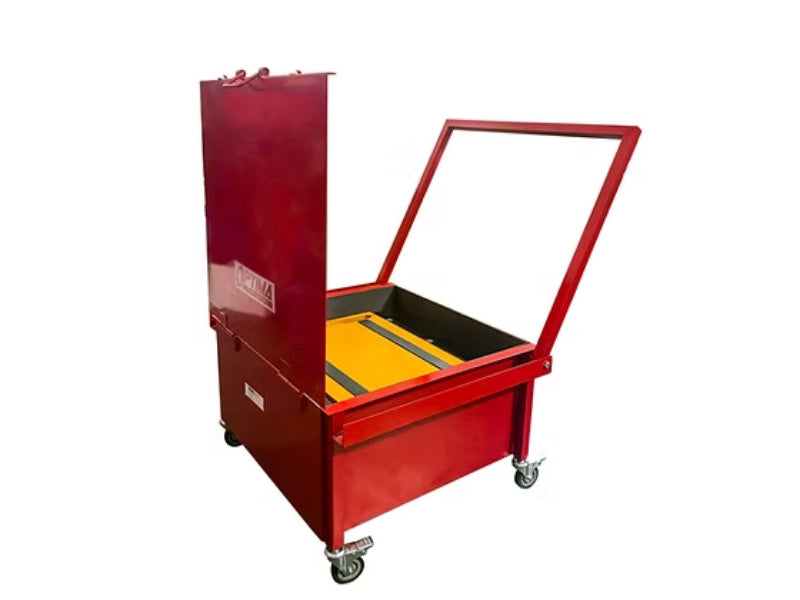

Optional Axle pad portable carrying cart availiable

INDICATOR FEATURES

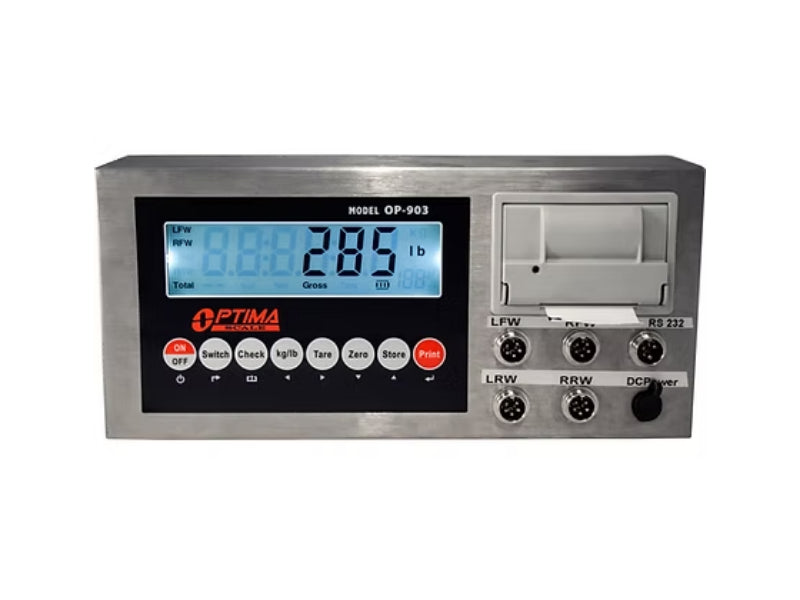

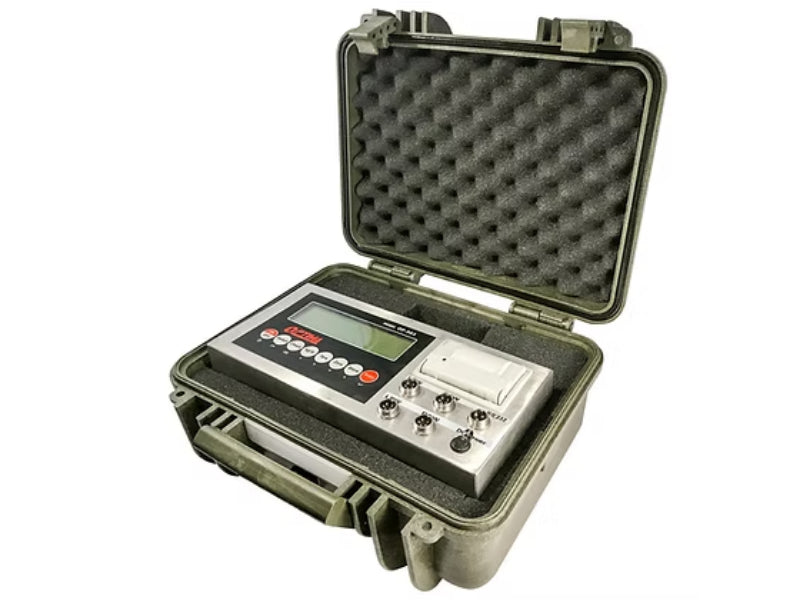

OP-903 indicator with LCD display with briefcase
Included printer
1" Tall backlit display
Rechargeable battery
Stainless Steel enclosure
AC adapter included
Multiple weighing units: (lb/kg)
Gross/Tare/Zero/Hold functions
Accumulation weighing
Splash proof keyboard and display
Connects to a remote display

OPTIONAL ACCESSORIES

Printer
Remote Display
Software
Indicator Stand (standard or stainless steel)
Wireless (call for details)

SPECIFICATIONS

Material: Aircraft Aluminum
Overload Protection: 200%
Indicator: OP-903 with protective case
Power: AC/DC, built-in rechargeable battery (100 hrs)
Capacity: 10,000 lbs - 25,000 lbs each
Ramp Length: 3 in
Cable Length: 33 ft
Warranty: 1 year limited warranty

Model #	# of Pads	Capacity per Pad	Accuracy	Overall Capacity	Pad Size (W × L × H)	Weight per Pad
OP-928-2-1614	2	10,000 lb × 5 lb	±0.05%	20,000 lbs	16″ × 14″ × 1.5″	40 lbs
OP-928-4-1614	4	10,000 lb × 5 lb	±0.05%	40,000 lbs	16″ × 14″ × 1.5″	40 lbs
OP-928-2-2416	2	25,000 lb × 10 lb	±0.1%	50,000 lbs	24″ × 16″ × 2″	60 lbs
OP-928-4-2416	4	25,000 lb × 10 lb	±0.1%	100,000 lbs	24″ × 16″ × 2″	60 lbs

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Optima Scales U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Compare available configurations

Compare configurations and prices below. Select a configuration to view that option above before adding it to your cart.

Configuration	Price	Select configuration
2 Pads \| 10,000 lb Each \| 20,000 lb Total \| 16” W x 14” L x 1.5” H Each	$2,598.00	Select
4 Pads \| 10,000 lb Each \| 40,000 lb Total \| 16” W x 14” L x 1.5” H Each	$4,689.00	Select
6 Pads \| 10,000 lb Each \| 60,000 lb Total \| 16” W x 14” L x 1.5” H Each	$6,915.00	Select
2 Pads \| 25000 lb Each \| 50000 lb Total \| 24” W x 16” L x 2” H Each	$3,745.00	Select
4 Pads \| 25000 lb Each \| 100000 lb Total \| 24” W x 16” L x 2” H Each	$6,242.00	Select
6 Pads \| 25000 lb Each \| 150000 lb Total \| 24” W x 16” L x 2” H Each	$10,947.00	Select
2 Pads \| 50000 lb Each \| 100000 lb Total \| 32” W x 24” L x 2” H Each	$4,586.00	Select
4 Pads \| 50000 lb Each \| 200000 lb Total \| 32” W x 24” L x 2” H Each	$7,192.00	Select
6 Pads \| 50000 lb Each \| 300000 lb Total \| 32” W x 24” L x 2” H Each	$12,482.00	Select

Need help choosing the right configuration?

Tell us what you are weighing, the required capacity and accuracy, and how the scale will be installed. We can help narrow the options before you order.

Call (941) 257-3293 Email product support
